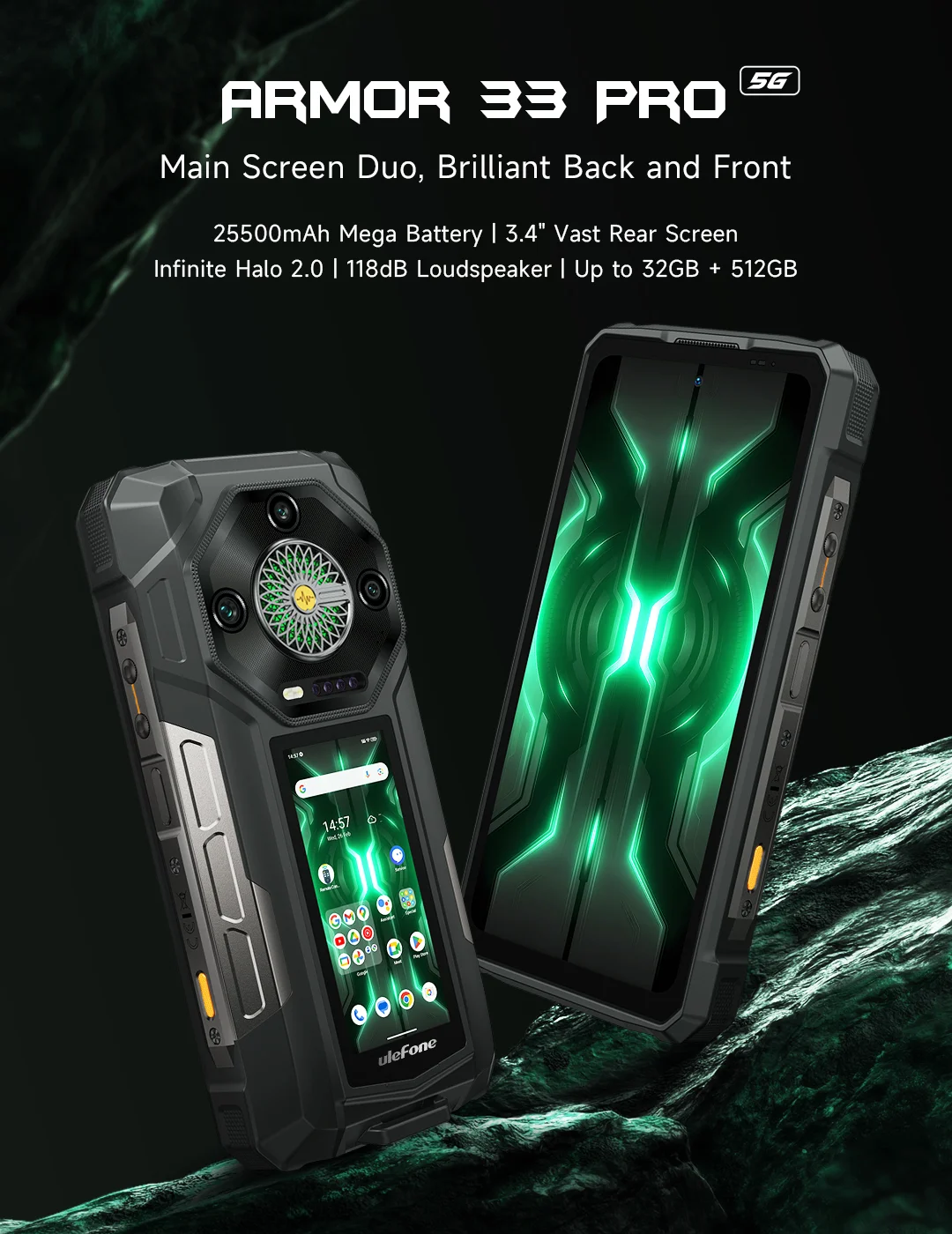

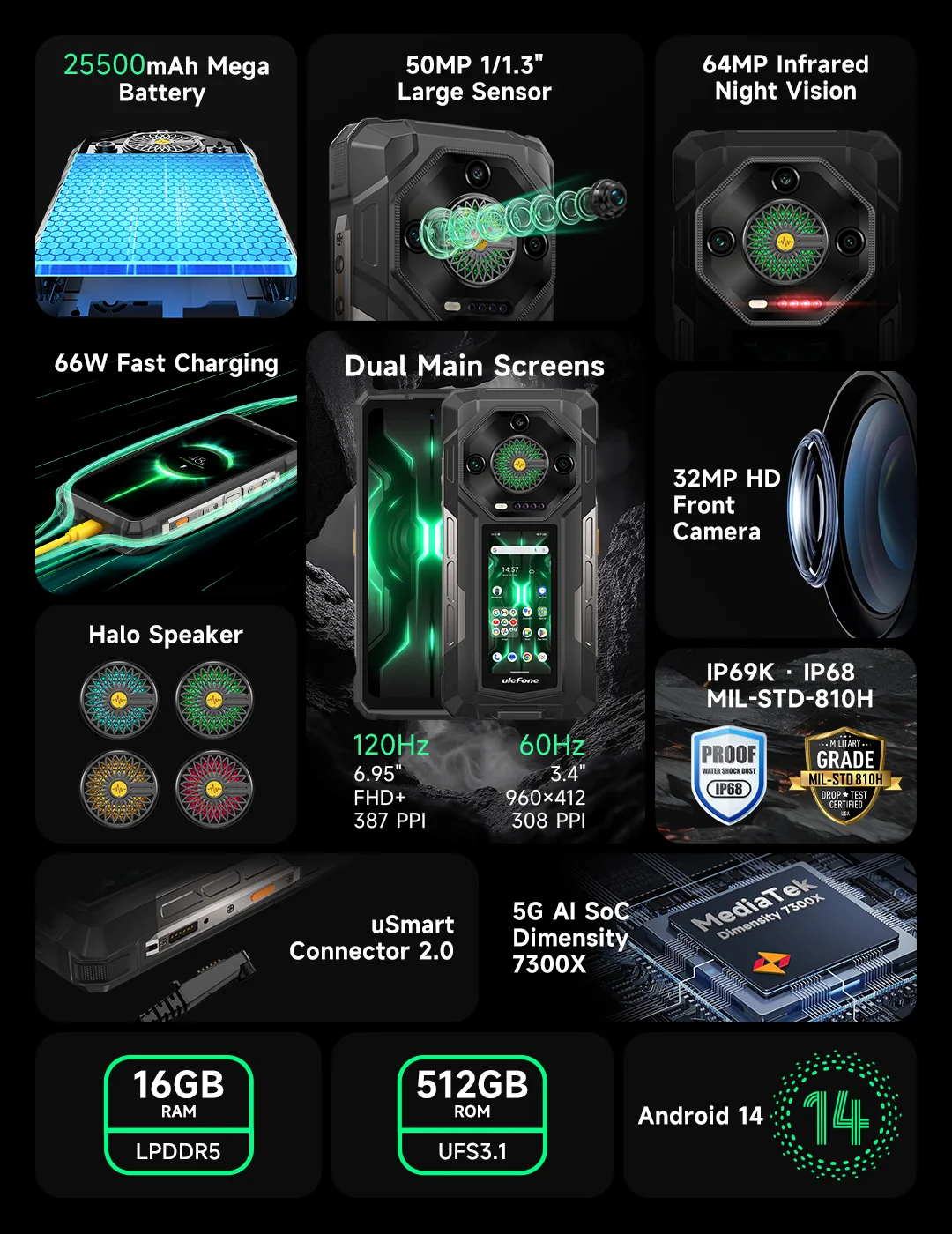

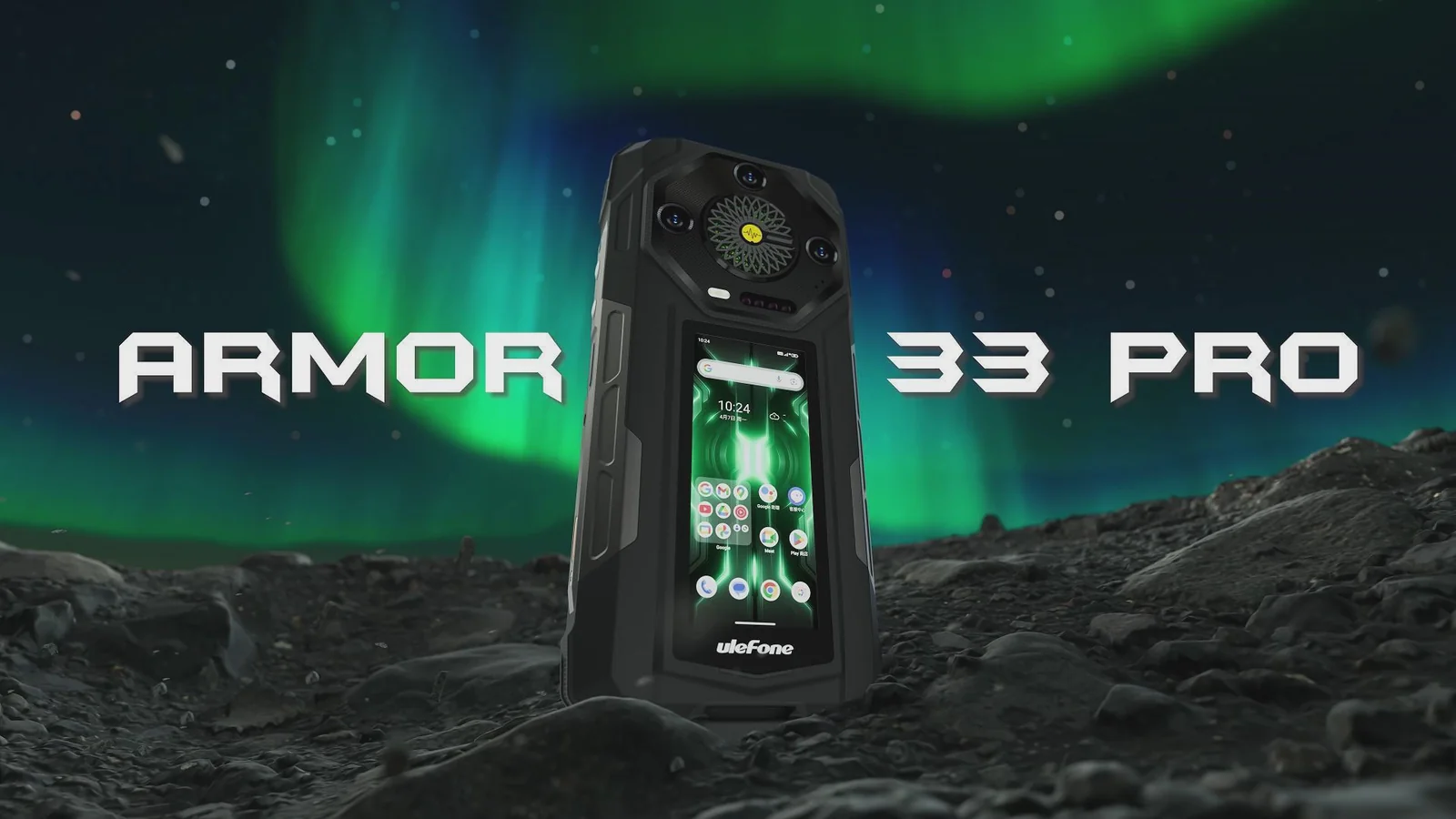

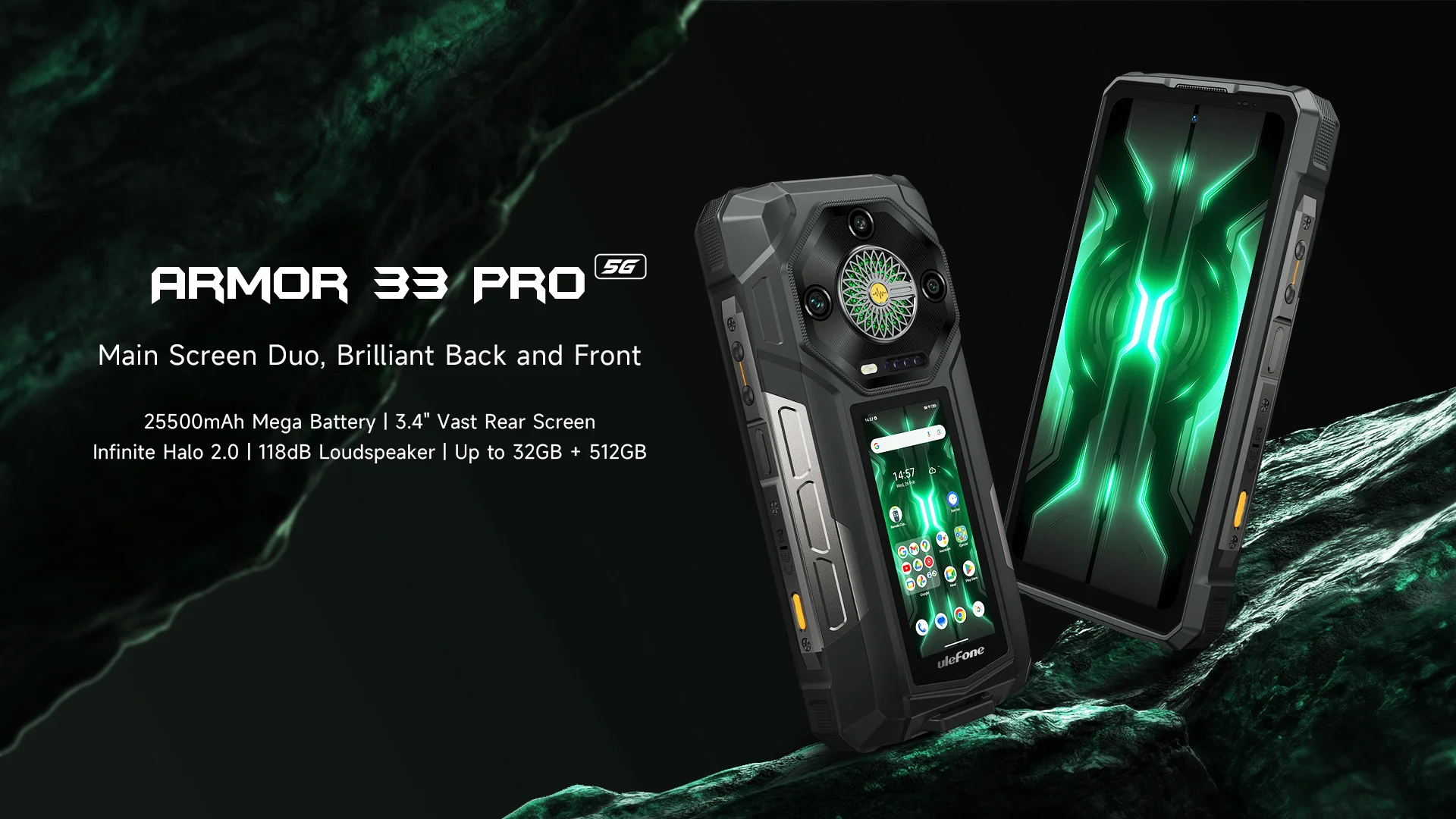

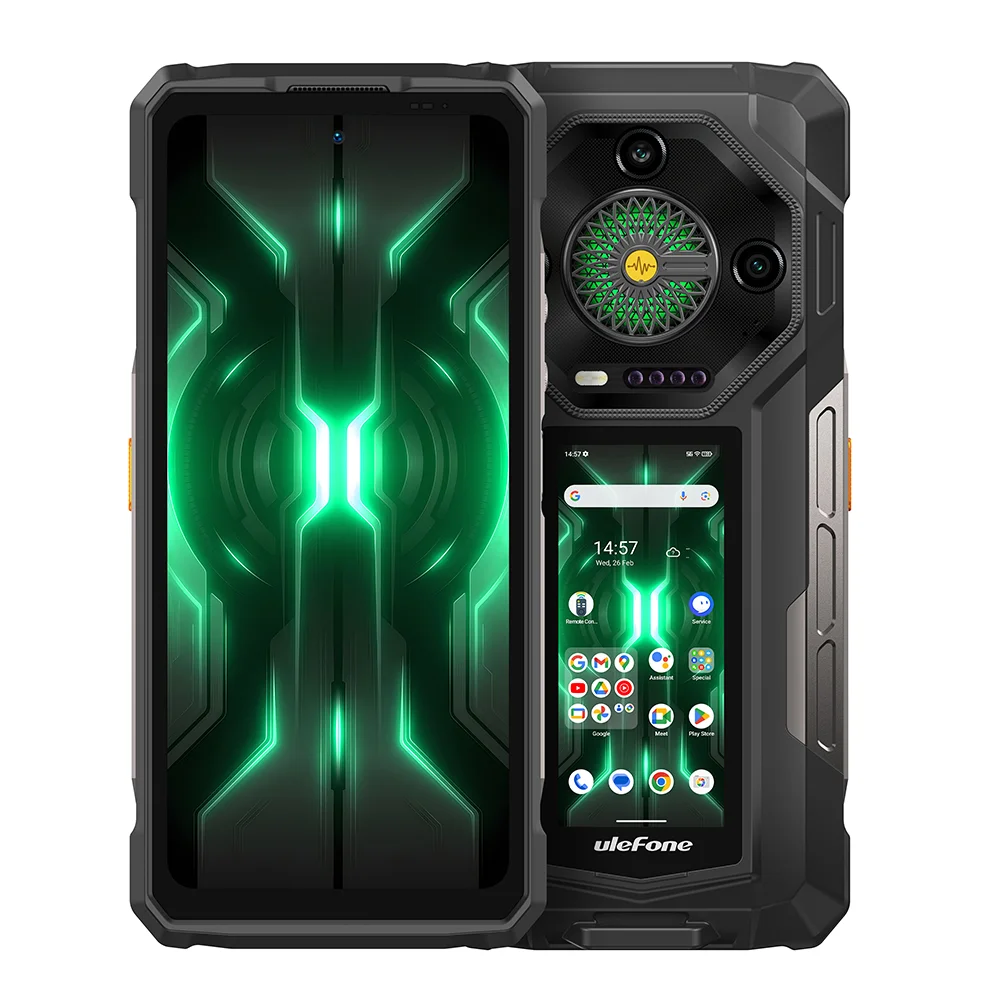

Armor 33 Pro

Specifications

Physical Characteristics

• Color: Phantom Black
• Material: PC + Aluminium
• USB: Type-C, USB 2.0
• Headphone Jack: 3.5mm Headphone Jack

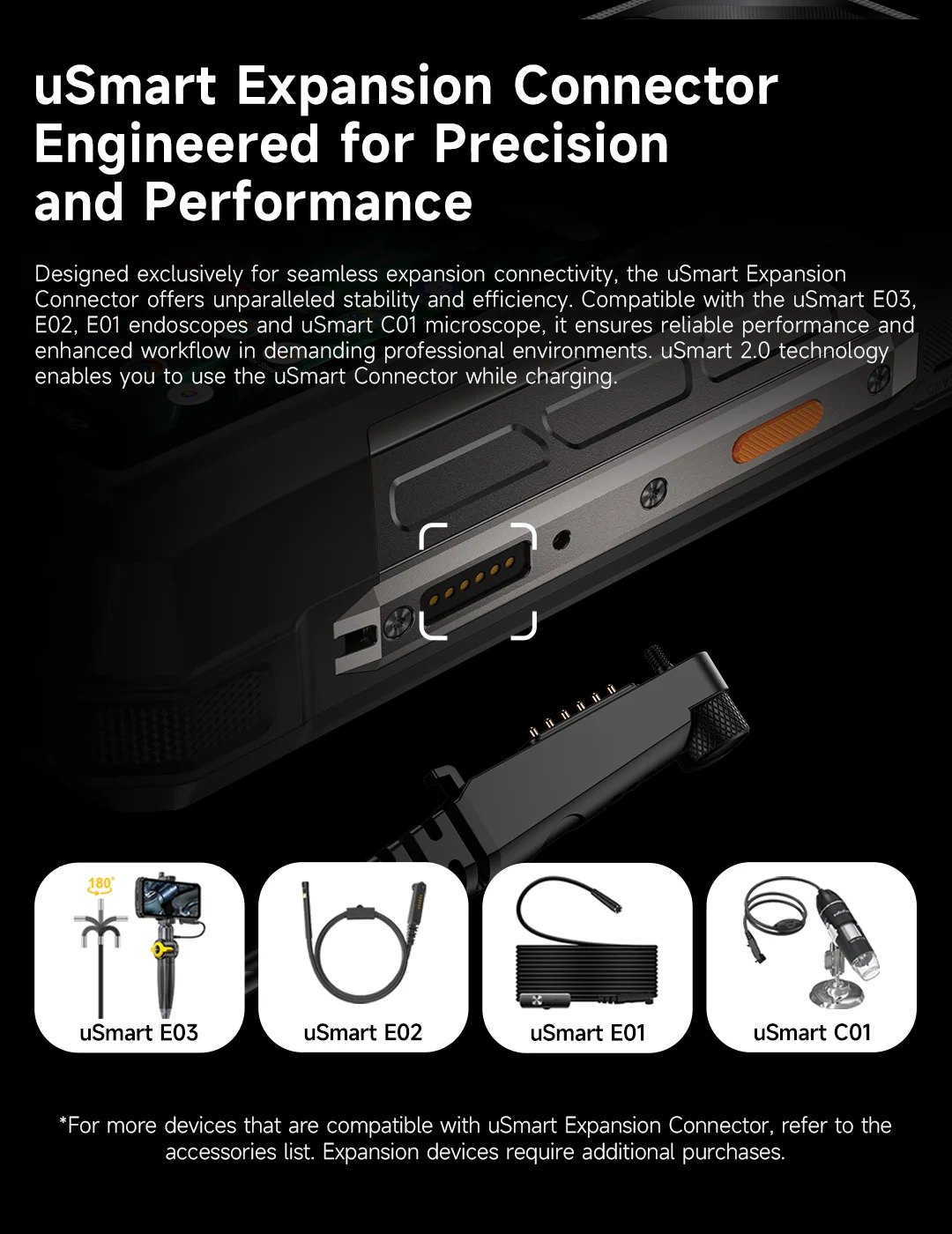

• Expansion Connector: uSmart Expansion Connector 2.0, supports uSmart series accessories, allows simultaneous charging while the uSmart Connector is in use.
• Card Slots: 3 (1x Nano-SIM + 1x Nano-SIM + 1x microSD)

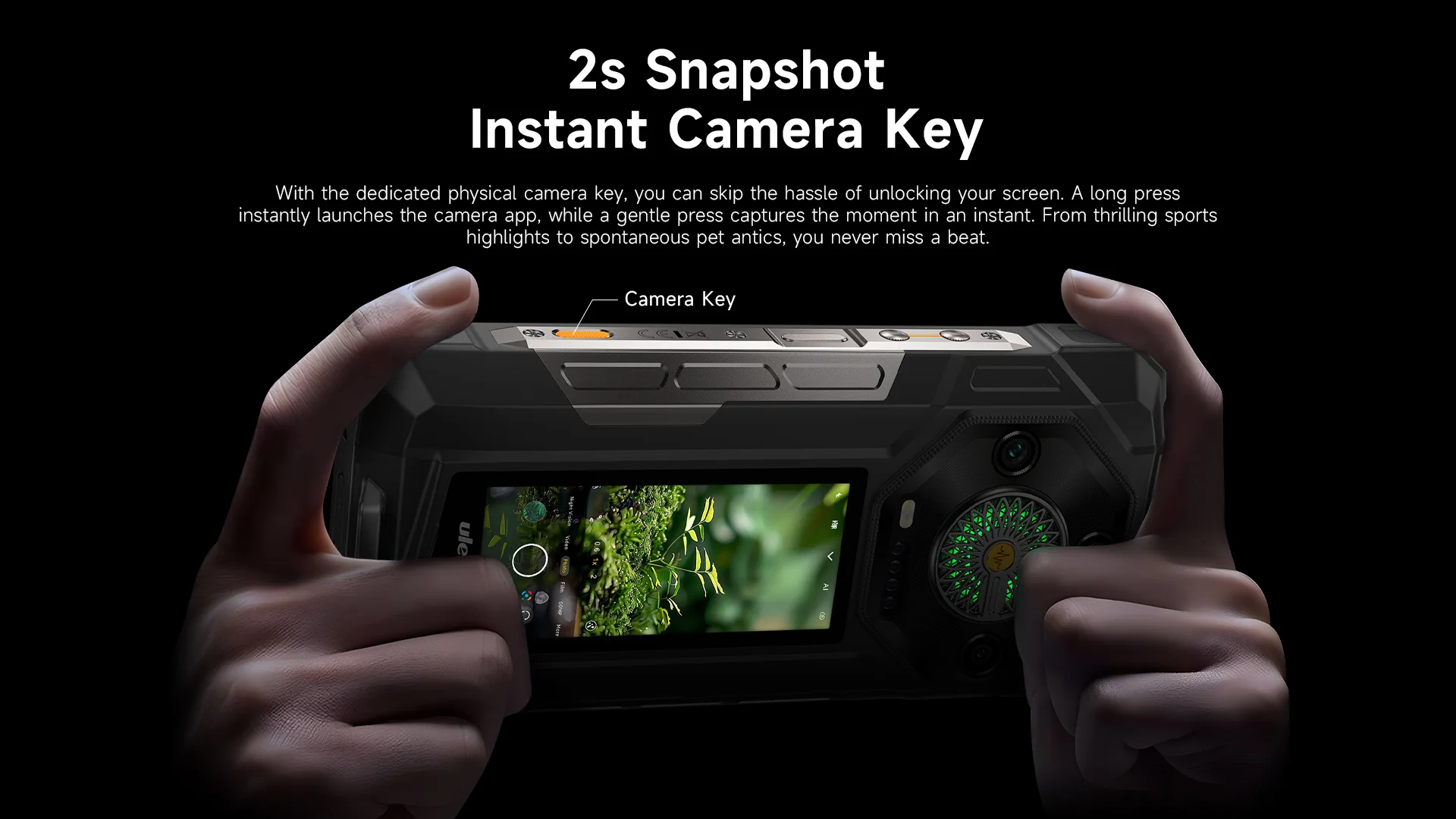

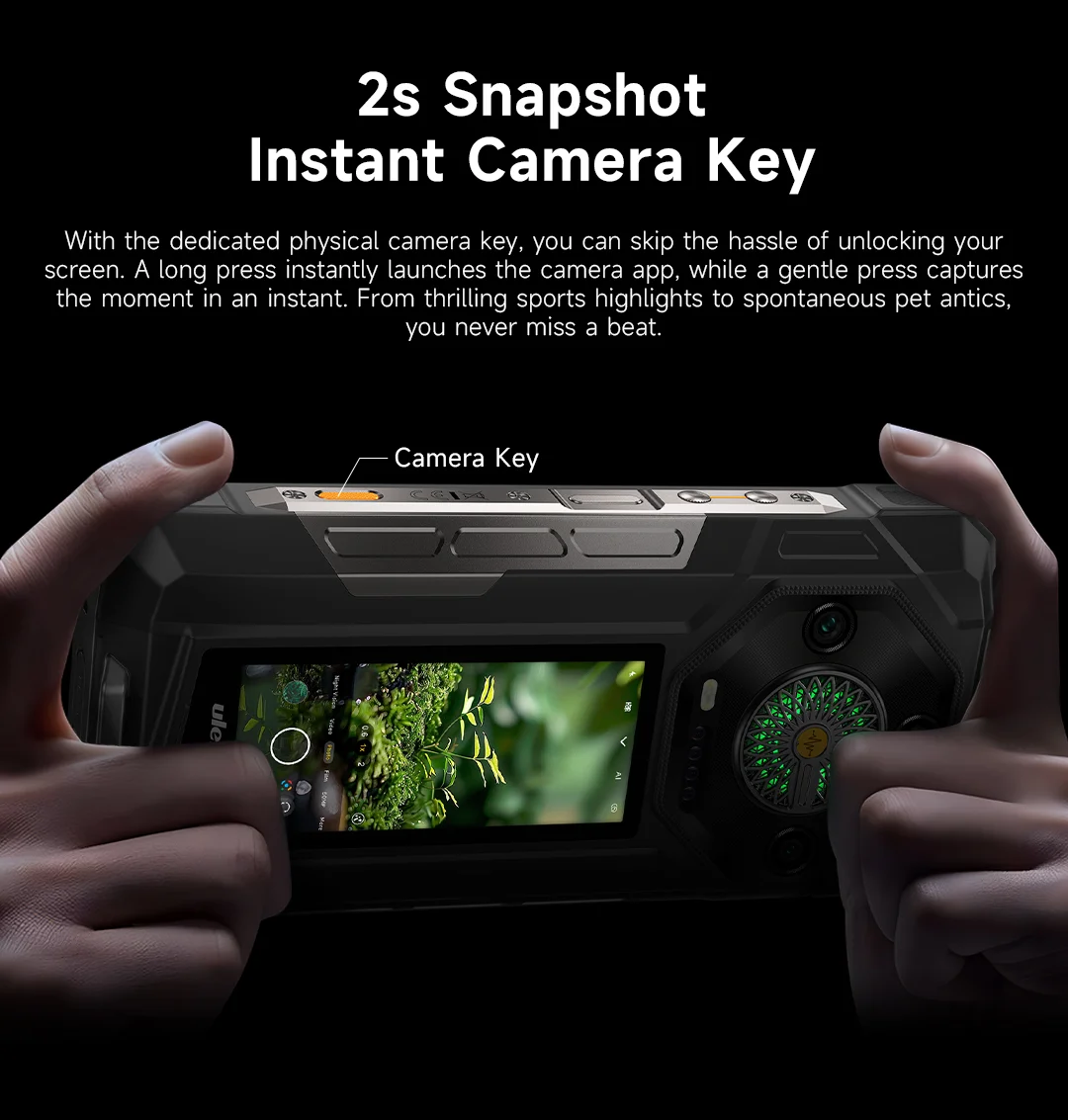

• Keys: Right: Power button (Fingerprint) + Volume button + Camera Key, Left: Custom Key

Size & Weight

• Product Size: 185.5 x 85.5 x 34 mm / 7.3 x 3.37 x 1.34 inches
• Product Weight: 776.5g / 27.39 ounces
• Package Size: 109 x 207 x 88 mm / 4.29 x 8.15 x 3.46 inches
• Package Weight: xx g

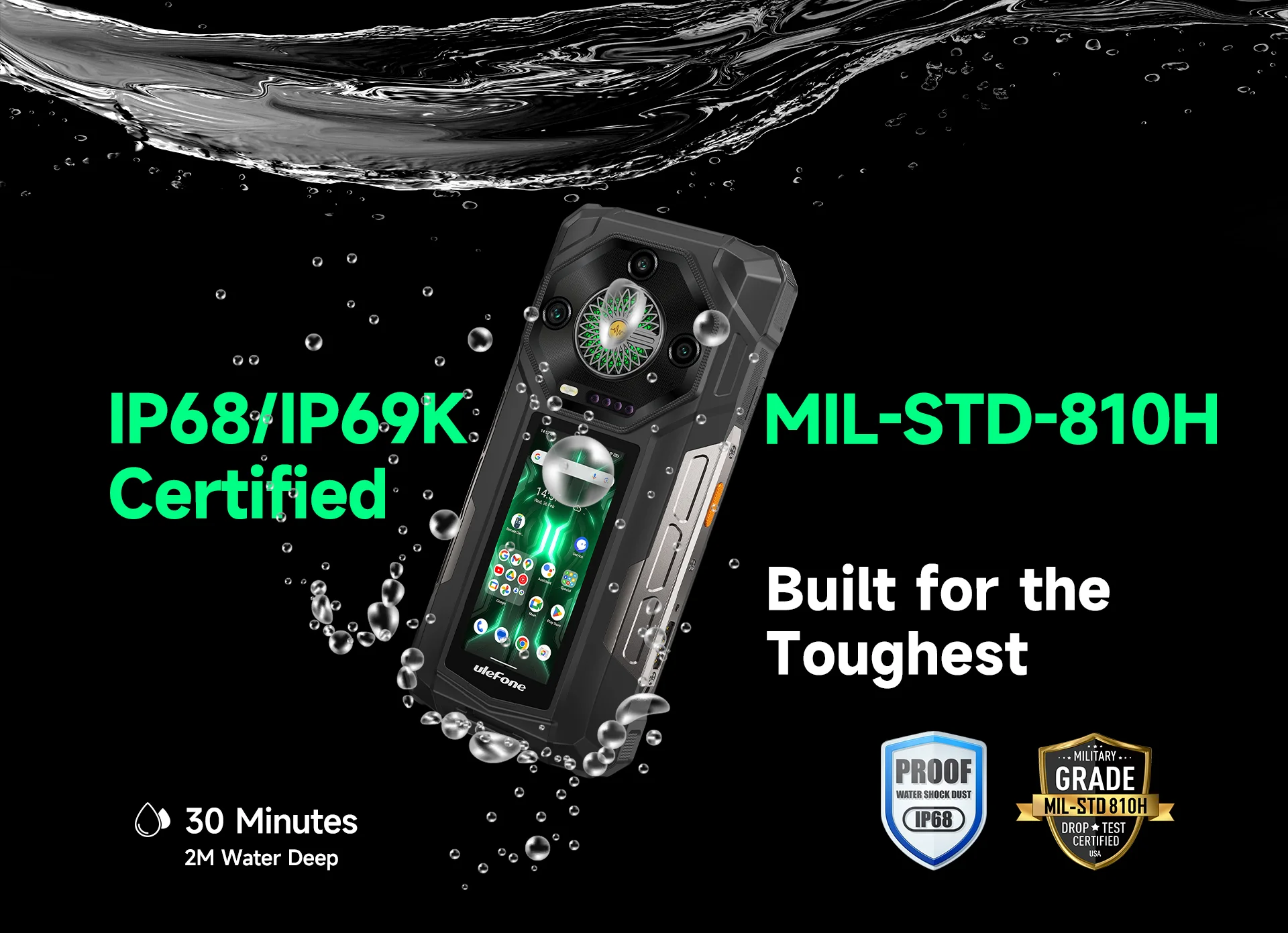

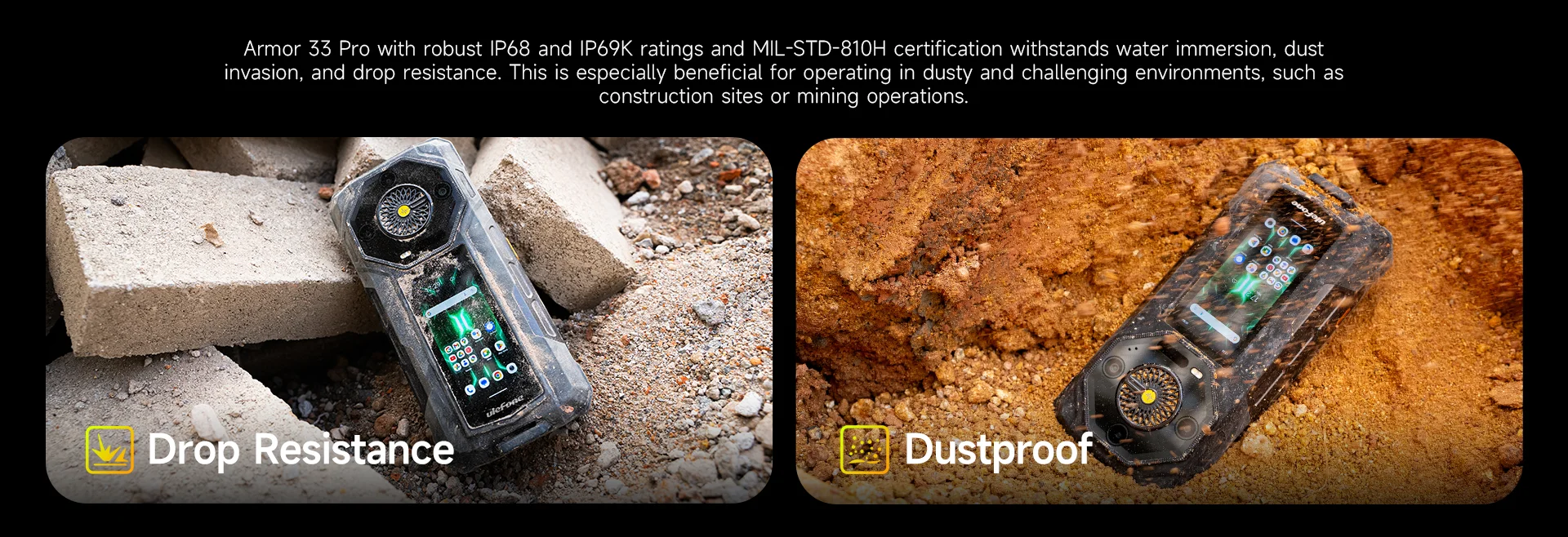

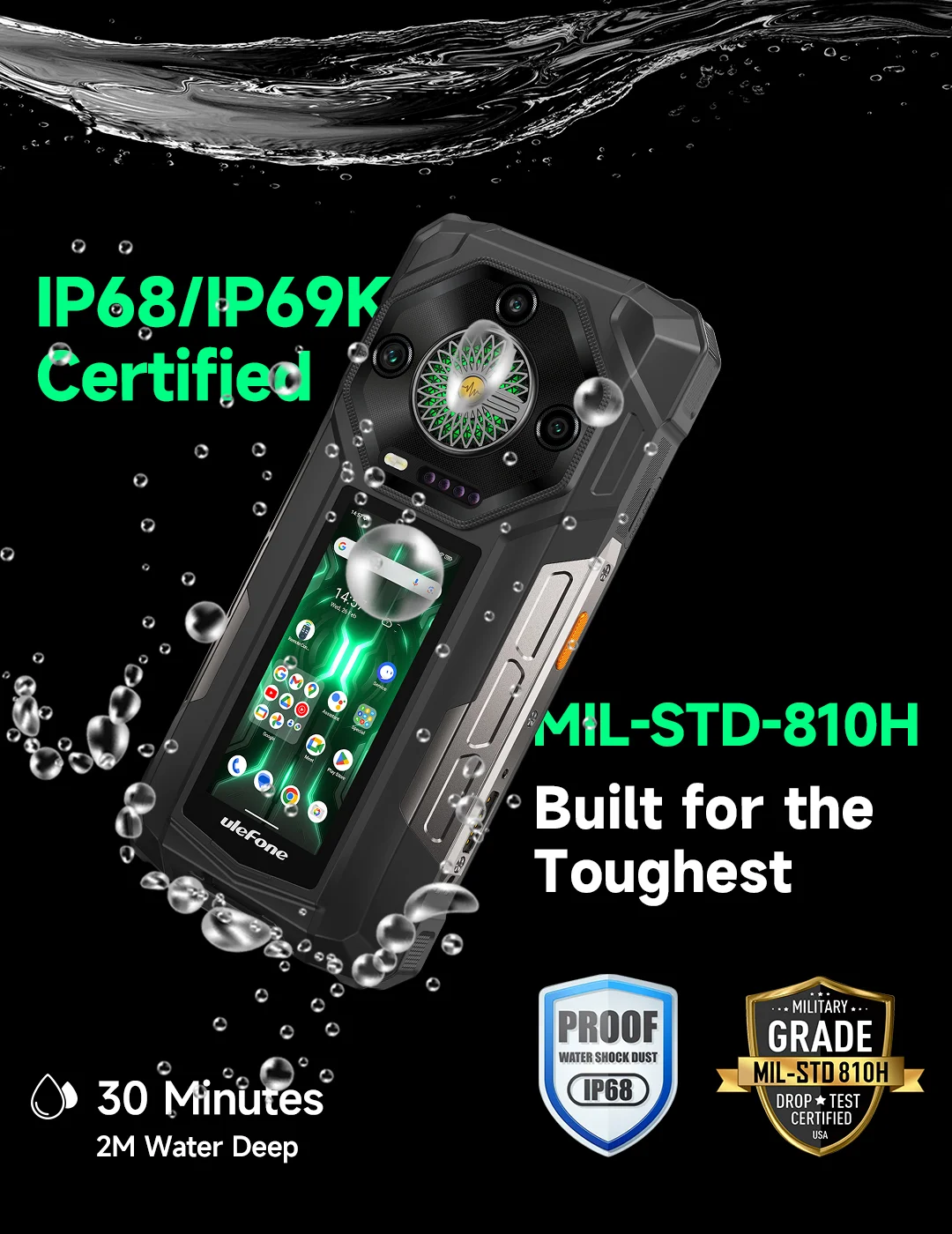

Ruggedness

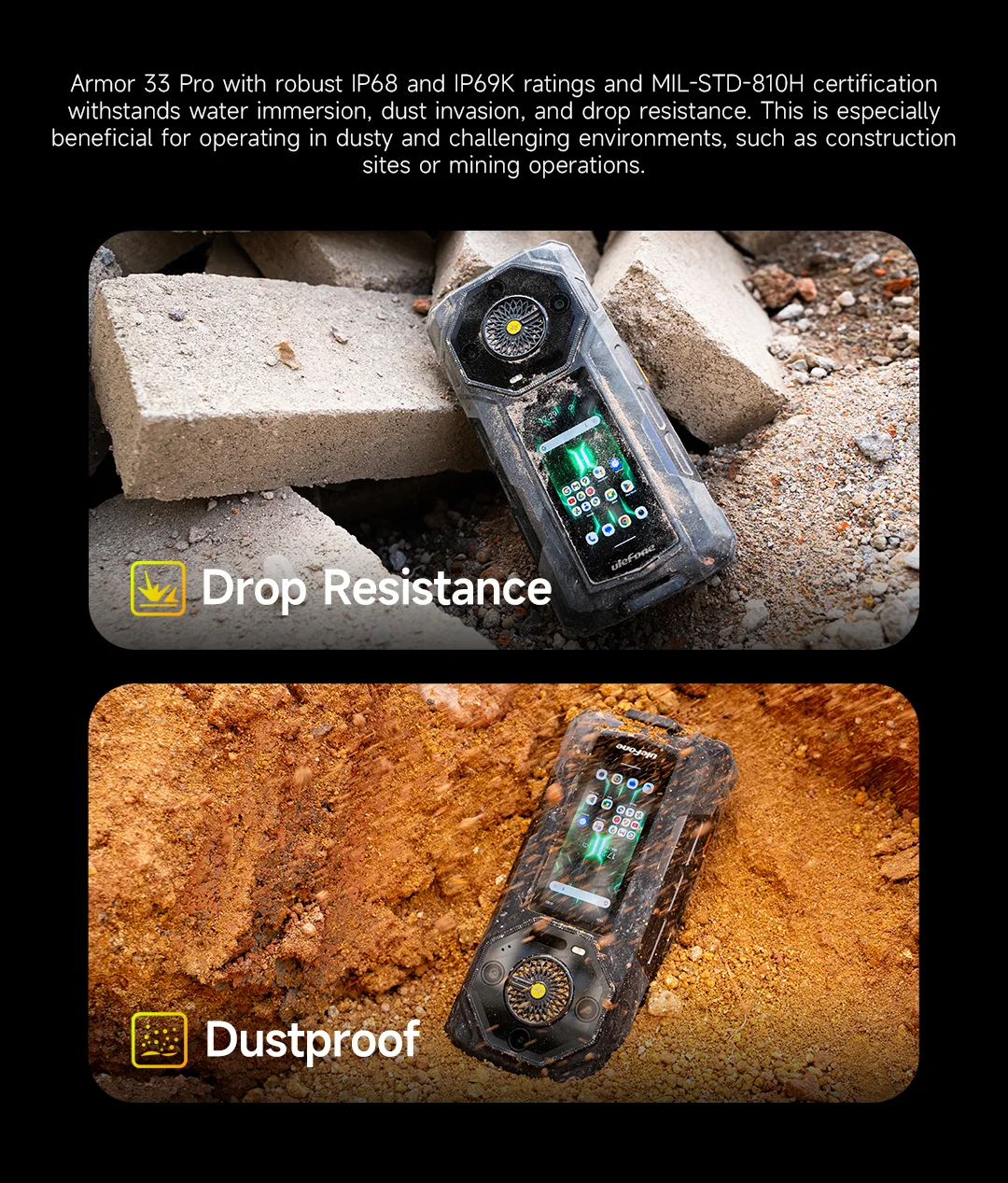

• Certification: IP68/IP69K/MIL-STD-810H
• Water Resistance: Max depth 2 meters up to 30 minutes
• Drop Resistance: Up to 1.5m tall
• Working Temperature: -30℃ – 55 ℃ (-22℉ – 131℉)

Main Display

• Size: 6.95-inch
• Resolution: 1080 x 2460 FHD+
• Aspect Ratio: 20.5:9
• PPI: 387
• Brightness: 700 nits (peak)
• Color Depth: 10-bit
• Refresh Rate: 120Hz
• Screen-to-Body Ratio: 87%
• Multi-touch: 10

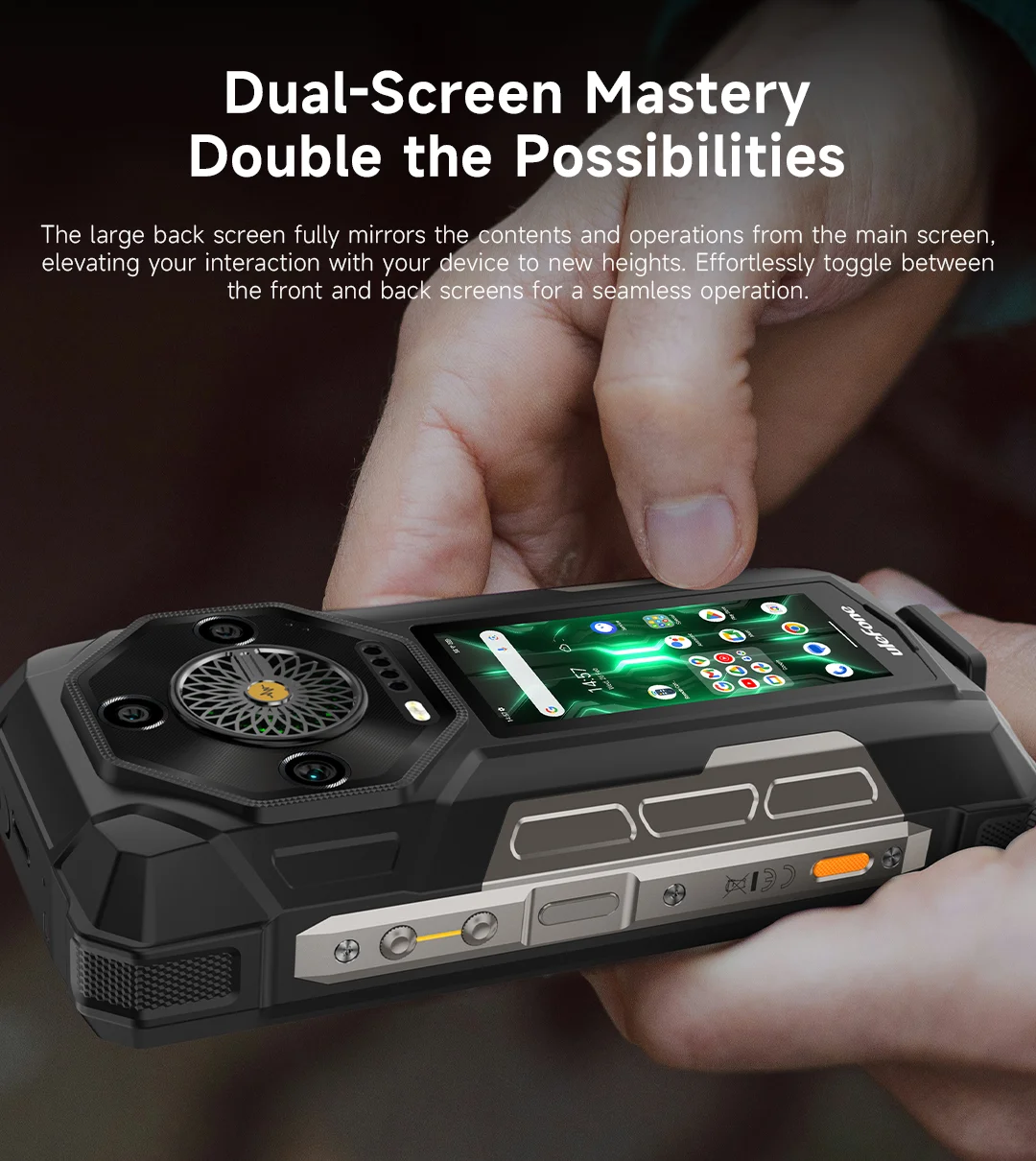

Back Display

• Size: 3.4-inch
• Resolution: 412 x 960 HD+
• Brightness: Max 600 nits
• Refresh Rate: 60Hz
• Multi-touch: 5

Dual Screen Settings

• Modes: Dual Screen Intelligence Display, Main Screen Display, Sub-screen Display, Dual Screen Mirroring
• Double-tap to Wake/Sleep: Supported on active screen

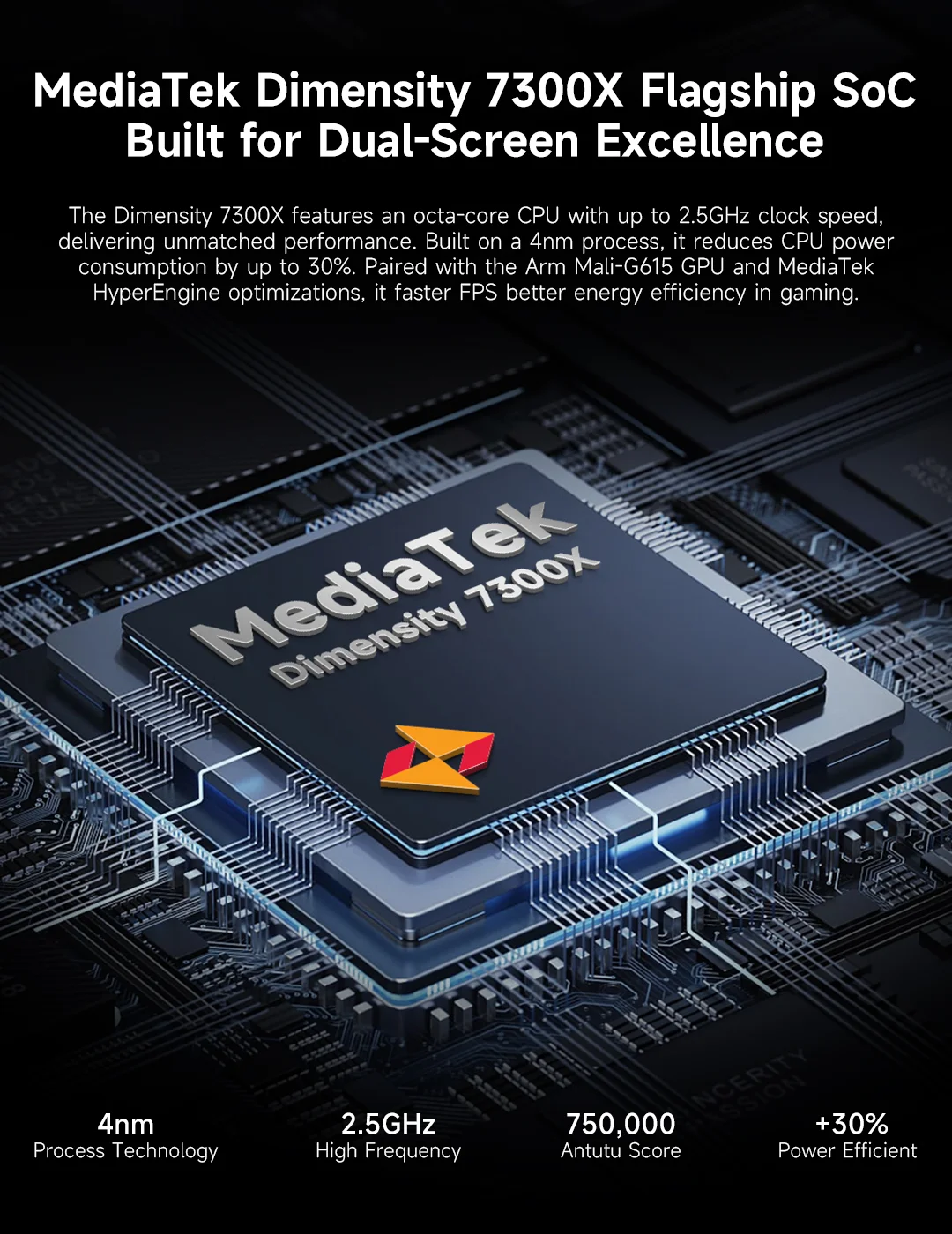

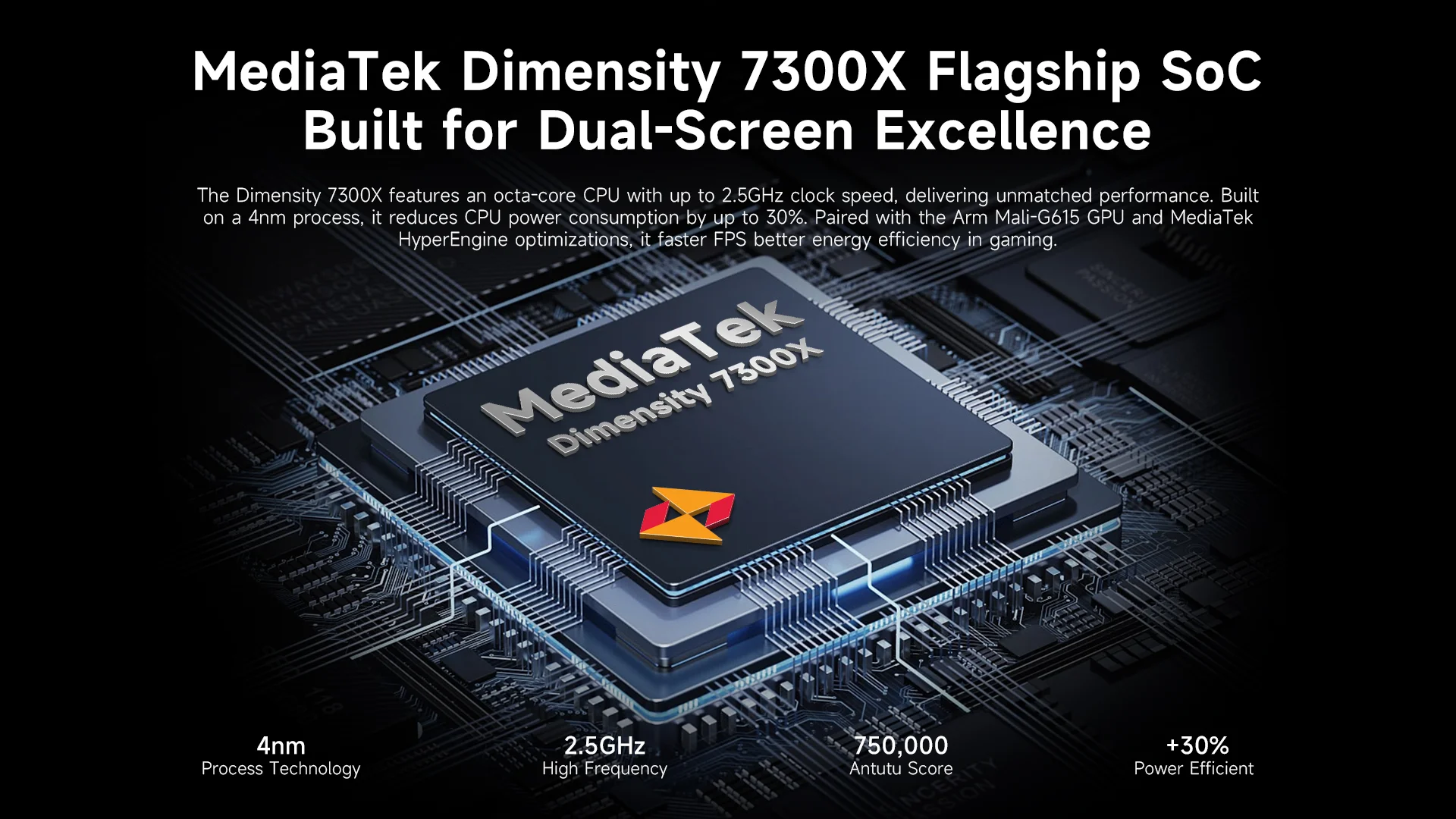

Processor

• CPU Model: MediaTek Dimensity 7300X
• Main Frequency: 2.5GHz
• Process: 4nm
• Cores: 8 (4x Cortex-A78 + 4x Cortex-A55)
• GPU: Arm Mali-G615 MC2, 1100MHz
• AI Unit: MediaTek NPU 655

RAM & Storage

• RAM: 16GB LPDDR5 + 16GB Dynamic RAM
• Storage: 512GB UFS3.1
• Max Expansion: 2TB

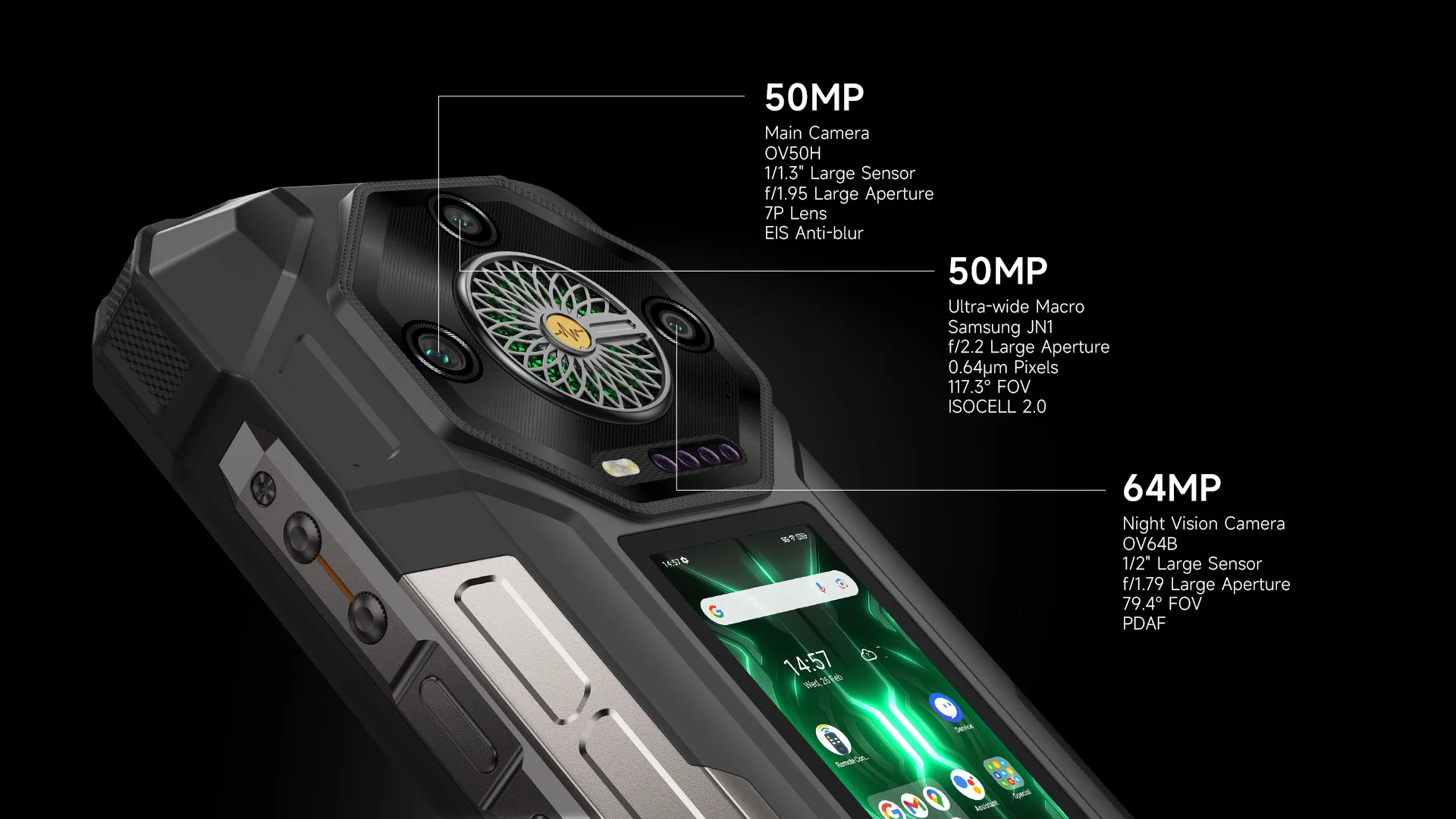

Rear Camera

• Total Cameras: 3

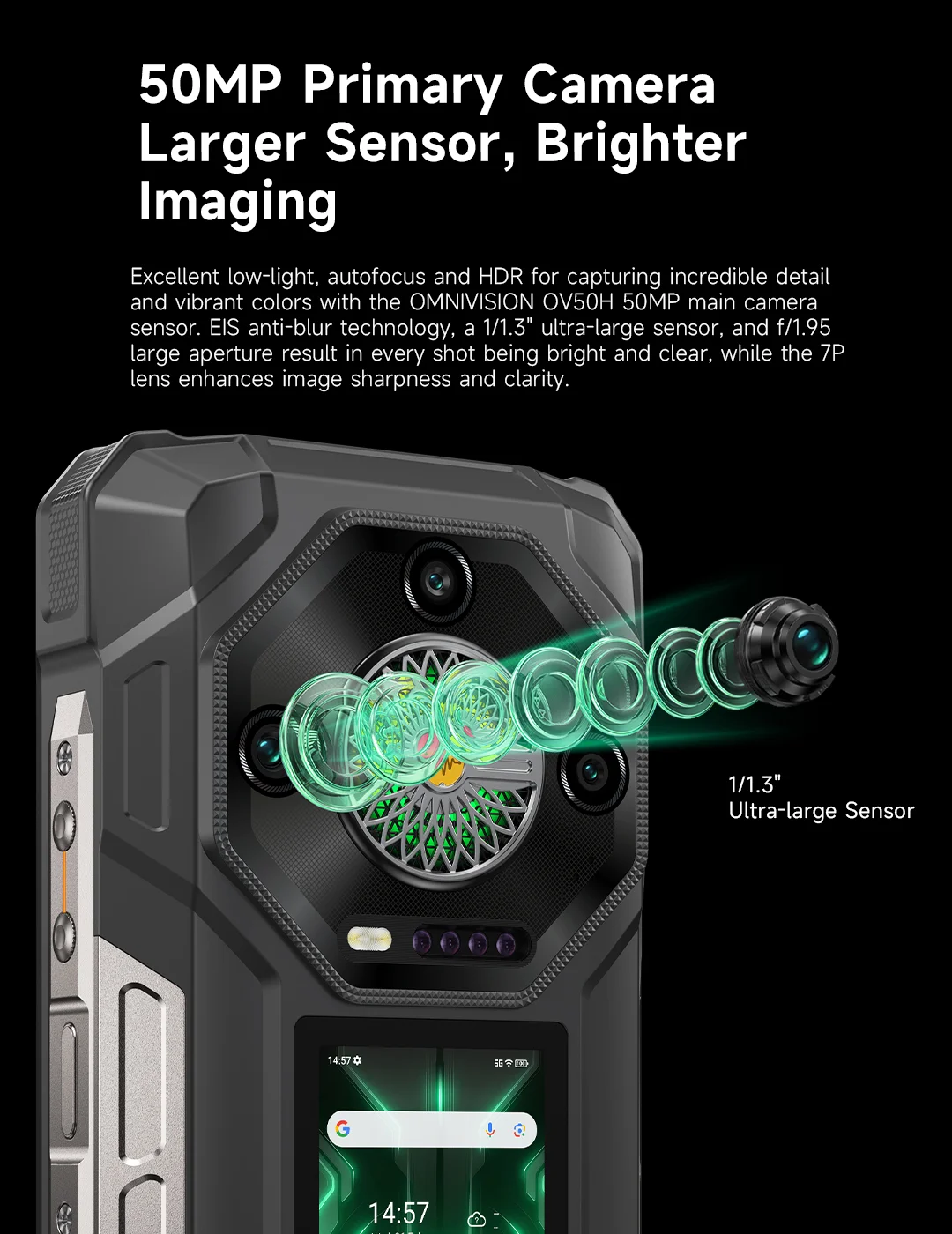

• Main: 50MP OV50H CMOS, ƒ/1.95, 7P lens, FOV 85°

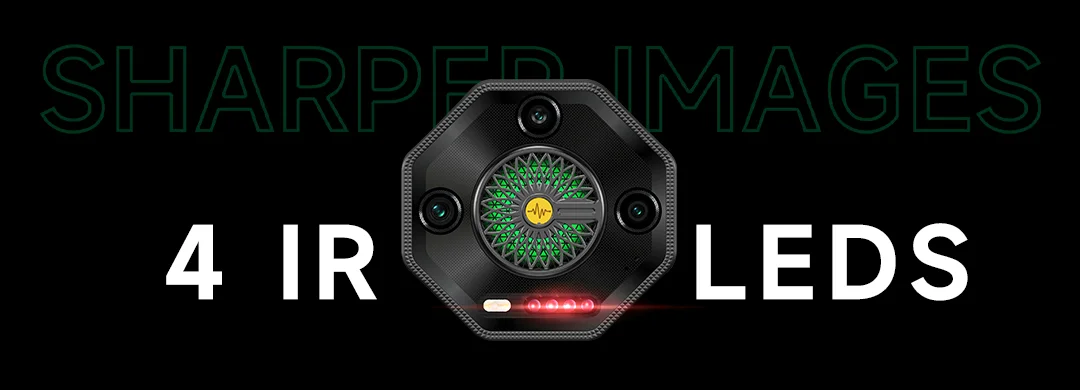

• Night Vision: 64MP OV64B CMOS, ƒ/1.79, FOV 79.4°
• Ultra-Wide: 50MP Samsung JN1 CMOS, ƒ/2.2, FOV 117.3°
• Flash: 2
• Video: 4K@30fps, FHD@30fps, HD@30fps, VGA@30fps
• Modes: Night, Pro, Panorama, Portrait, Sports, AI Emoji, Gif, Slow Motion, Time-lapse

Front Camera

• Pixel: 32MP (Samsung GD2, ƒ/2.45, 5P, FOV 80.4°)
• Video: FHD@30fps, HD@30fps, VGA@30fps
• Modes: Film, GroupPhoto, AI Emoji, Portrait

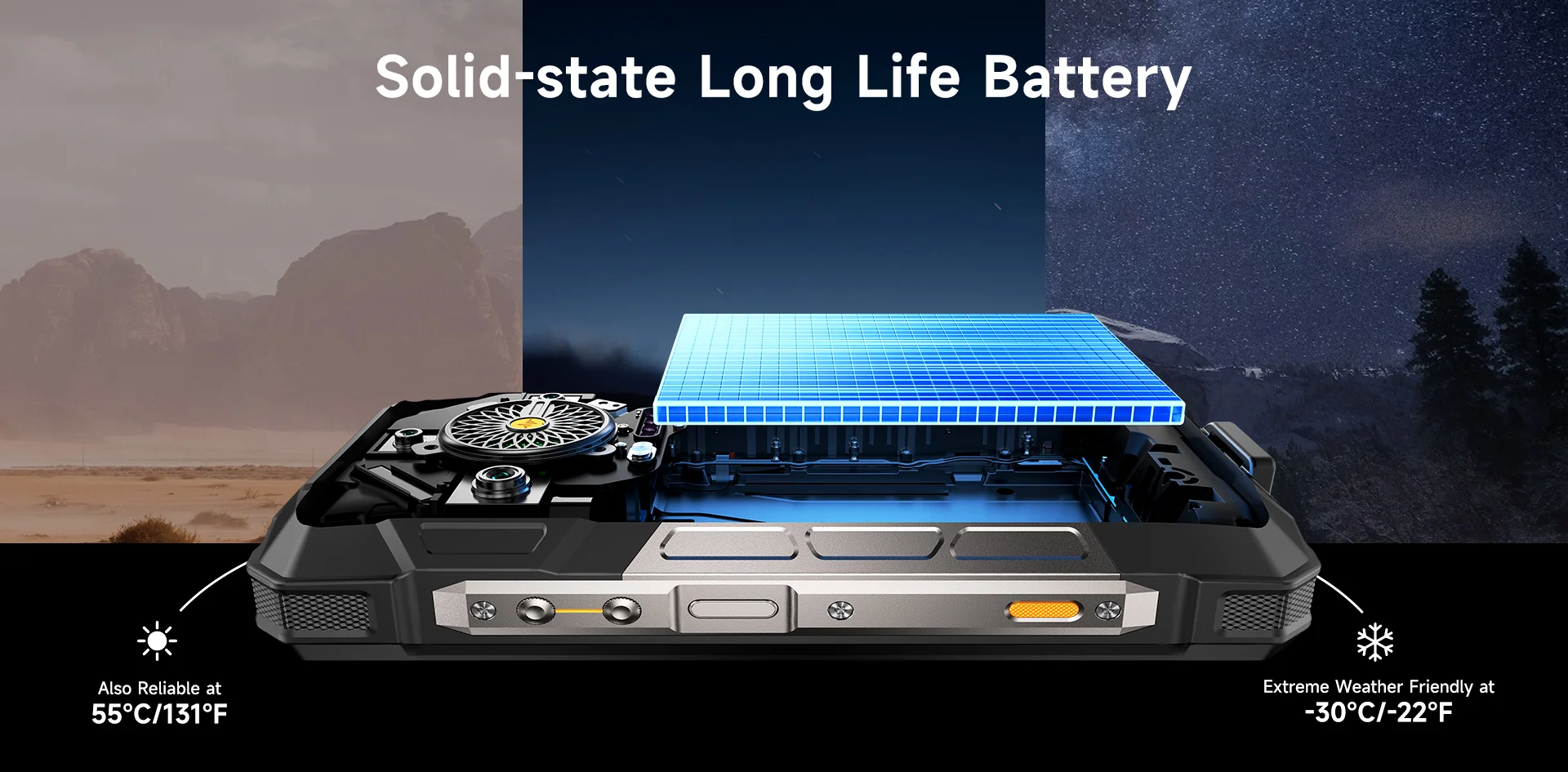

Battery & Charging

• Capacity: 25500mAh
• Wh: 98.685 Wh
• Type: Li-ion polymer
• Charging: 66W (11V6A/11V3A)

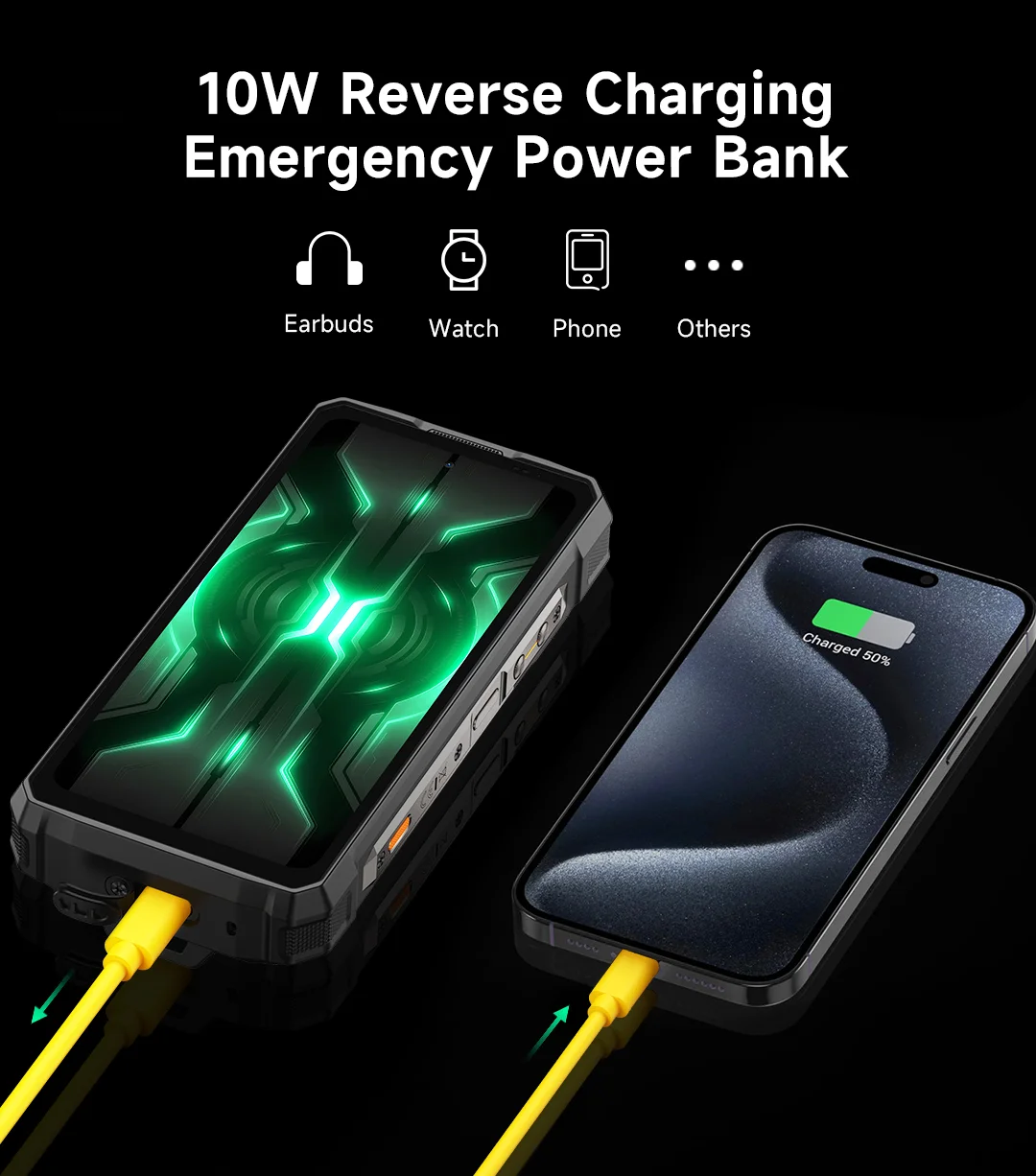

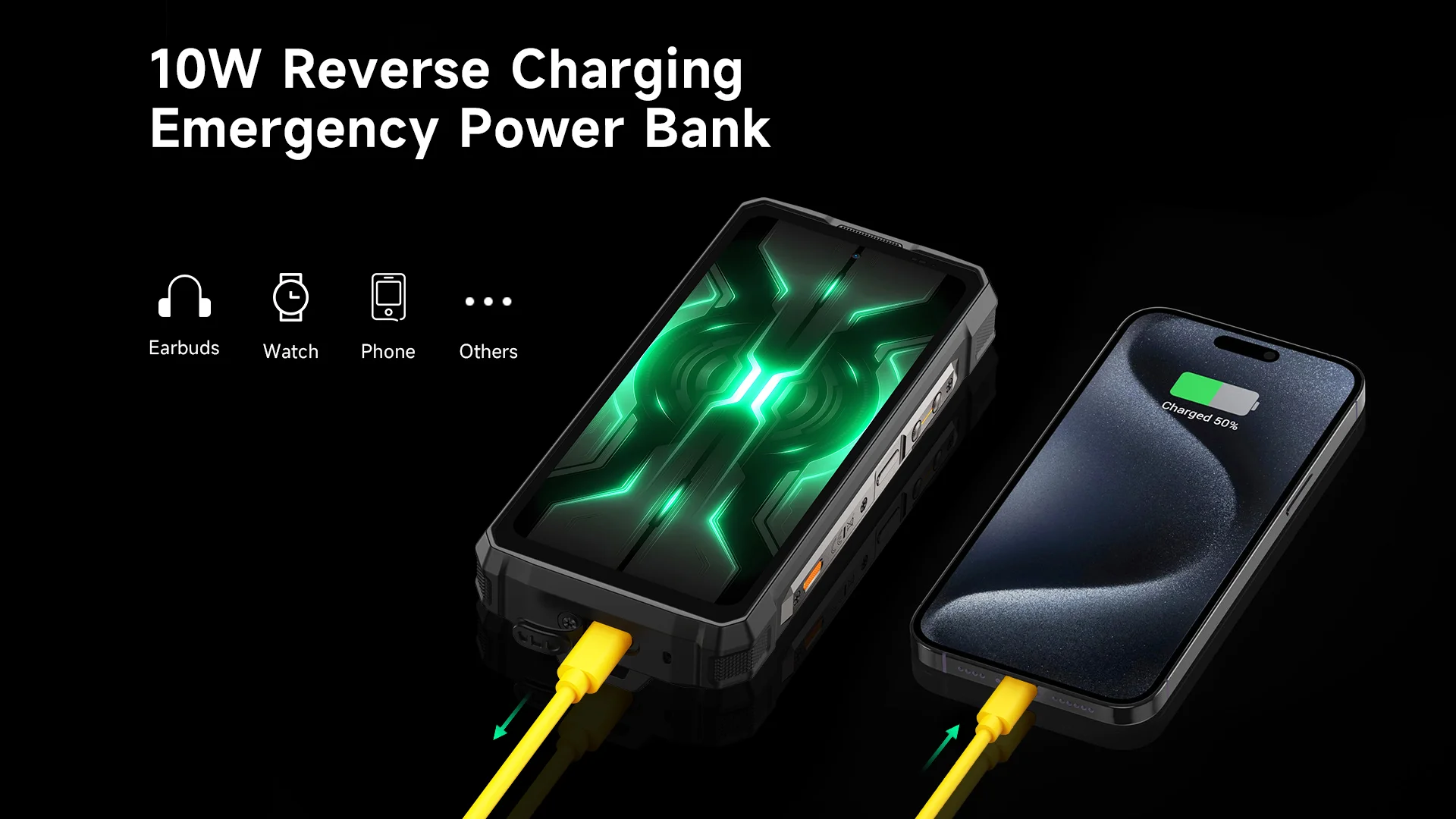

• Reverse Charging: 10W Wired
• Standby: 1380 Hours
• Talk Time: 104 Hours

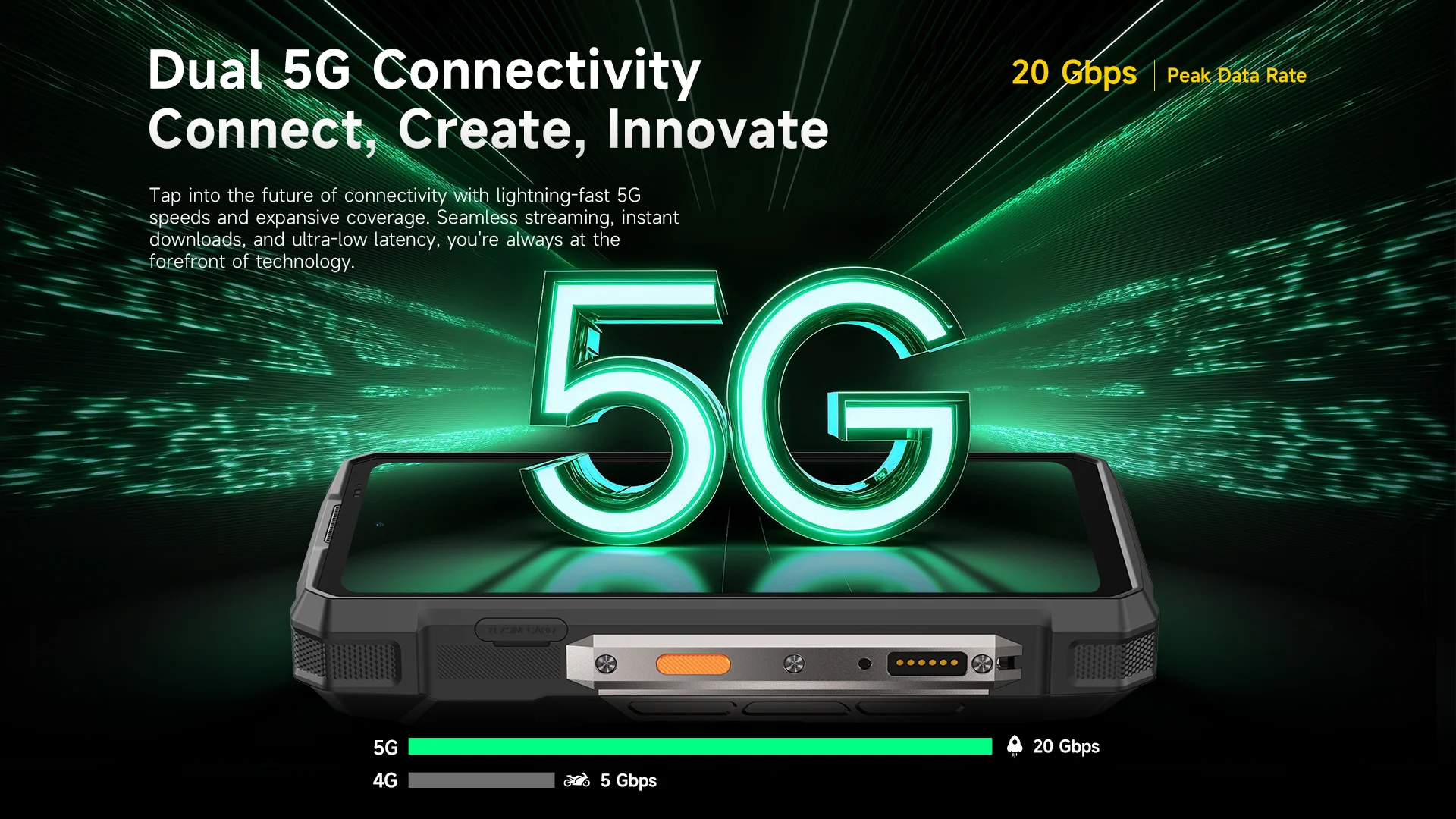

Network & Connectivity

• SIM: Dual Nano + microSD
• Cellular: 5G/4G/3G/2G
• 5G Bands: N1/2/3/5/7/8/20/25/28/38/40/41/66/71/77/78/79
• WiFi: WiFi 6E (2.4GHz/5GHz/6GHz), 802.11 a/b/g/n/ac/ax
• Bluetooth: BT5.4
• Navigation: GPS, GLONASS, Beidou, Galileo, QZSS, NavIC

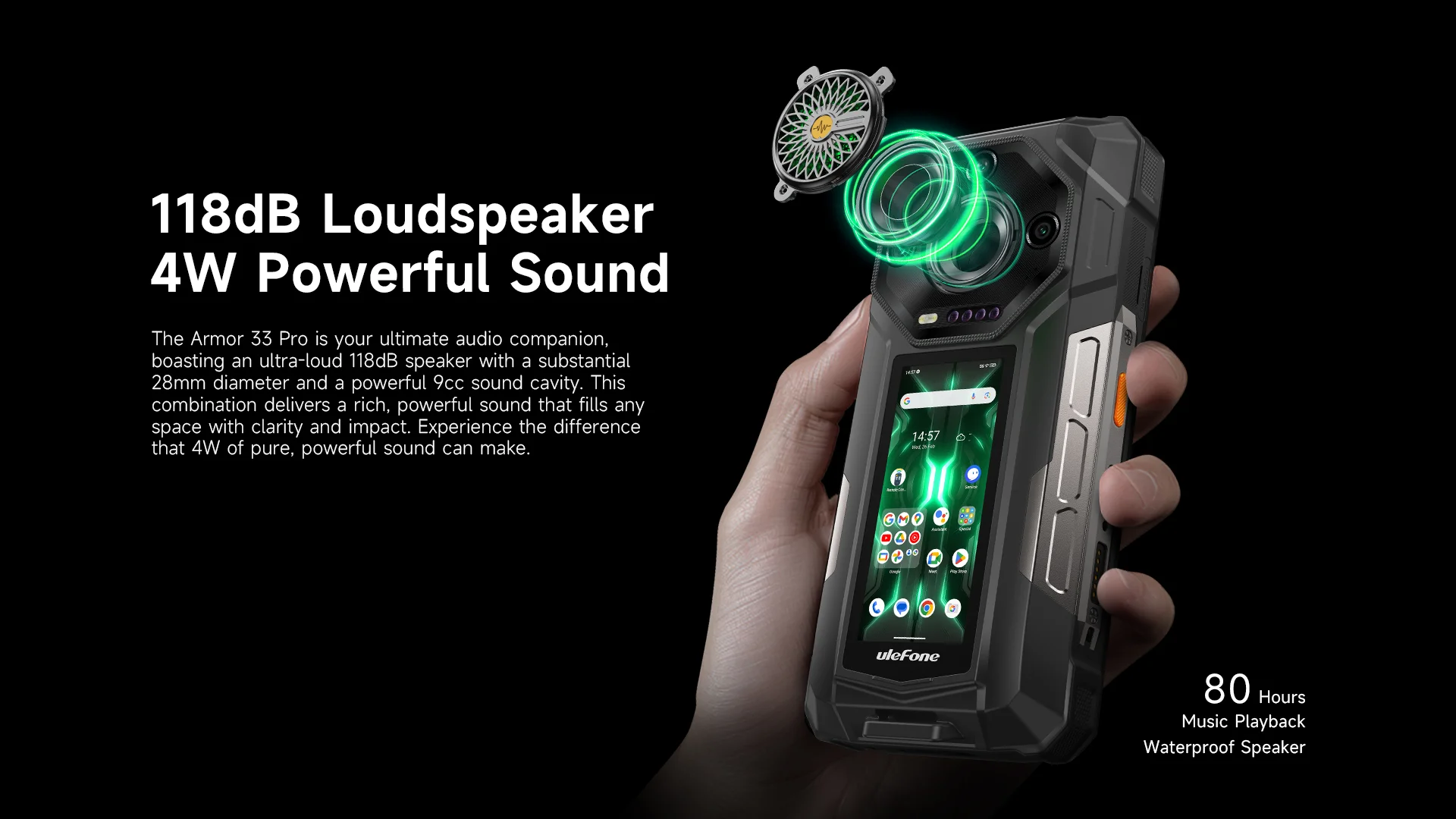

Audio

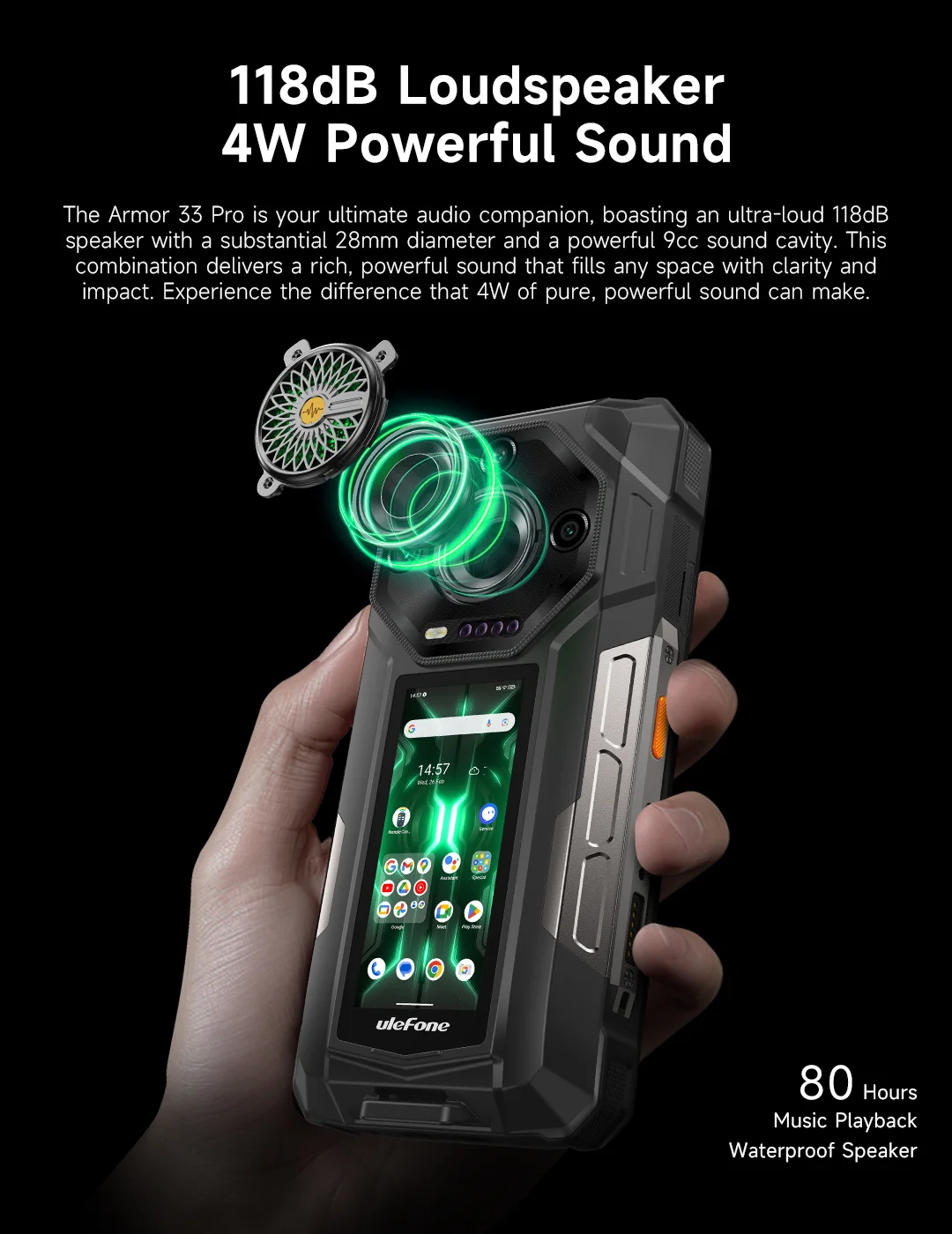

• Speaker: SPK BOX, Max 4W
• Loudness: 118dB
• Smart PA: AW88394
• Cavity: 9cc

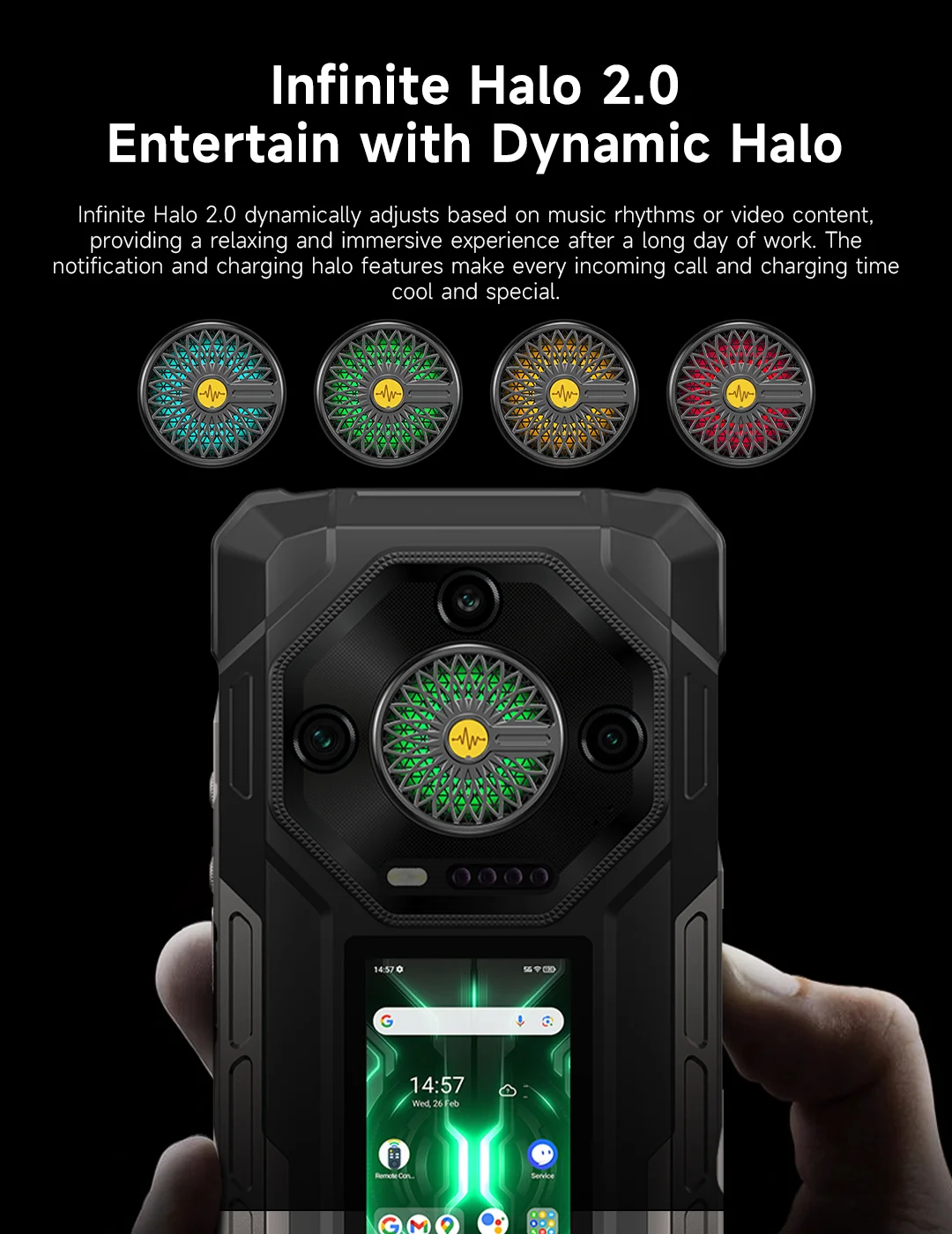

Infinite Halo 2.0

• LEDs: 3 (Tri-color)
• Modes: Music, Calling, Notification, Charging
• Custom Activation Time: Yes
• One-key Turn-off: Supported (Do Not Disturb / Settings)

Security

• Fingerprint ID: Yes
• Face Unlock: Yes

System & Features

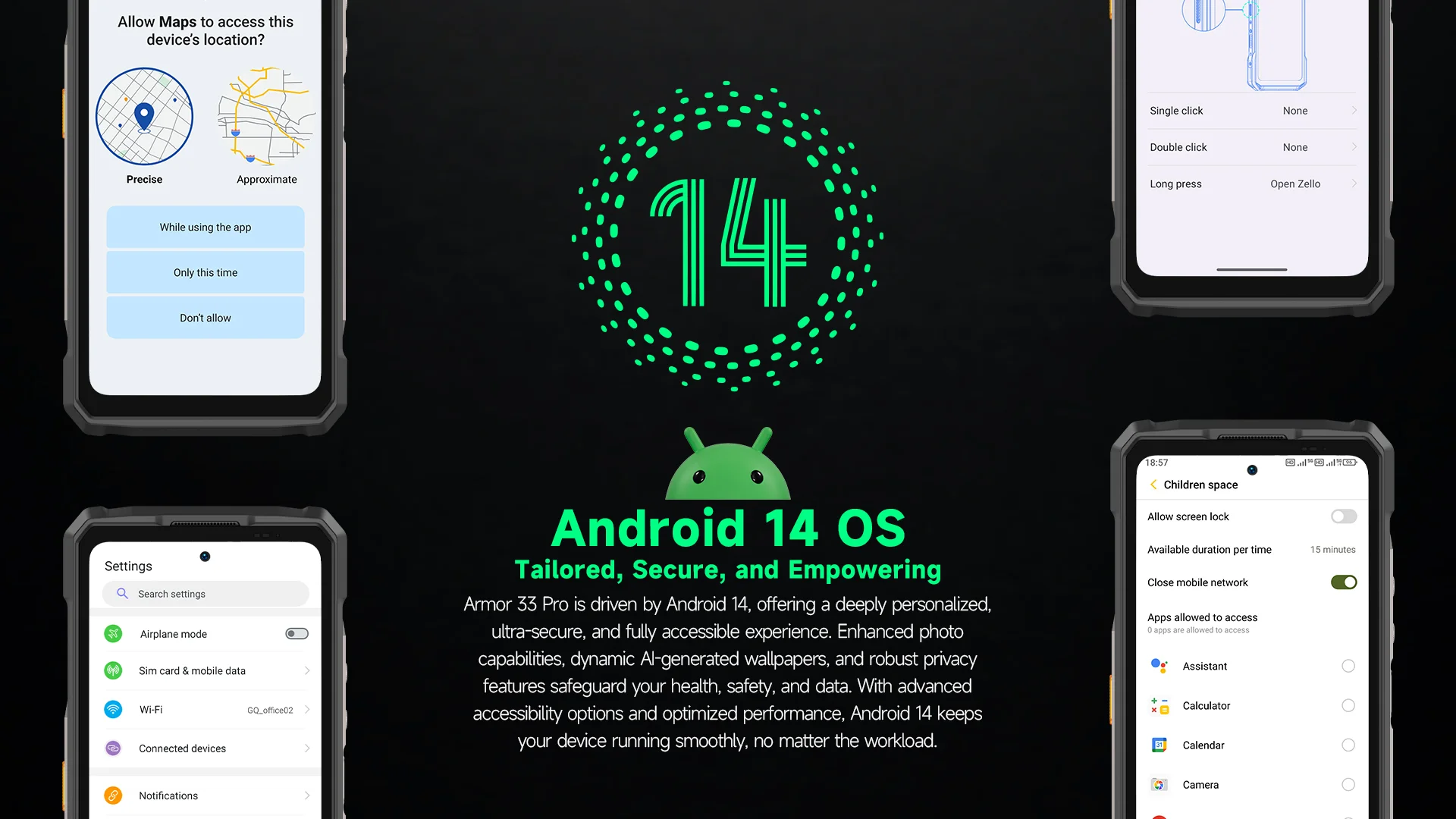

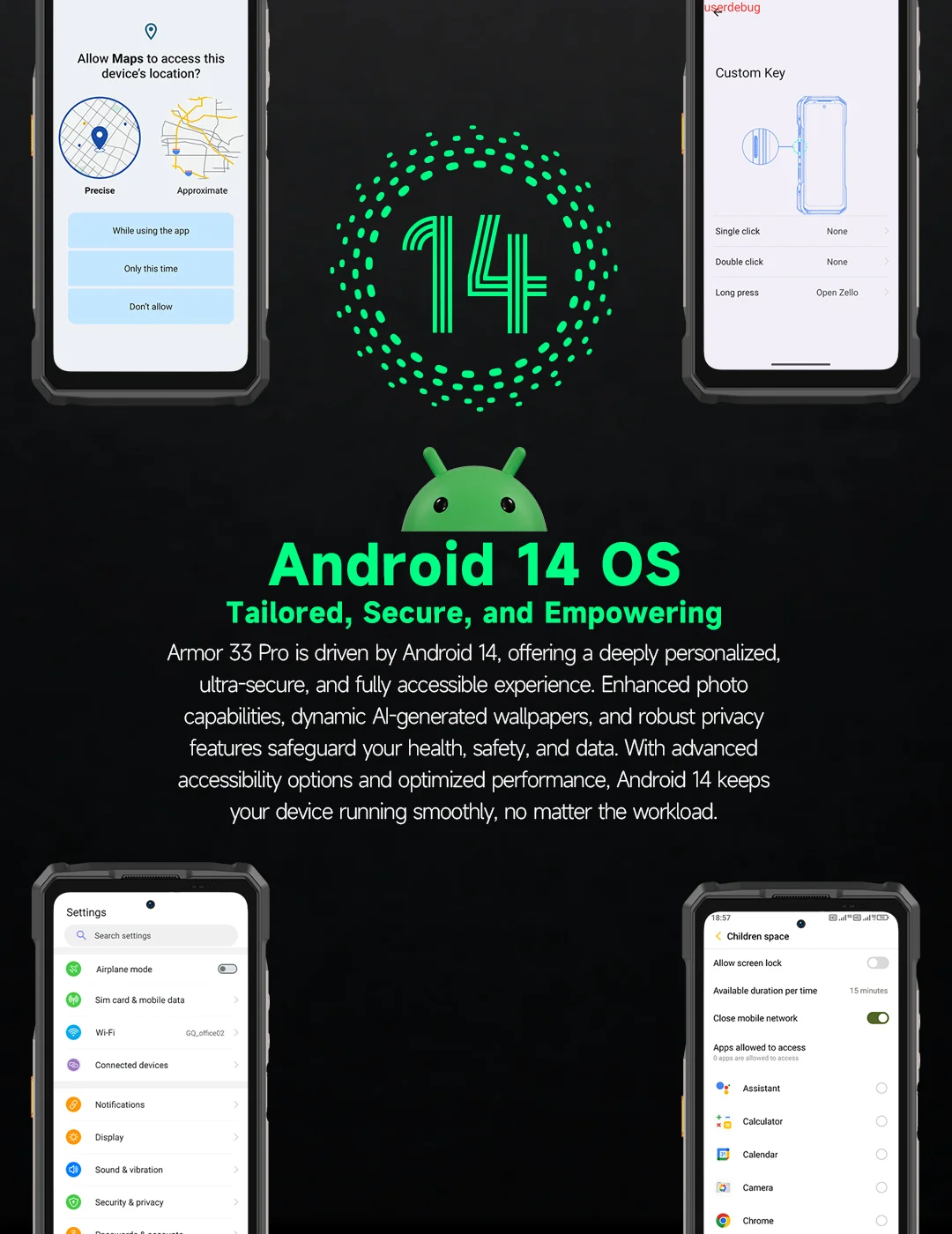

• OS: Android 14
• Pre-installed Apps: Google Suite + FM Radio + Outdoor Toolkit + Game Booster + more
• Languages: Multi-language (Full List Included)
• FM Radio: Yes, headset-free
• Sensors: Proximity, Gravity, Light, Accelerometer, Gyro, Compass, Barometer, Infrared, etc.

Special Features

• Underwater Camera: Yes
• Gloves Mode: Yes
• Toolbox: Compass, Ruler, Protractor, Plumb bob, Magnifier, Sound Meter, etc.
• OTG: Yes
• NFC: Yes
• IR Blaster: Yes

Packing List

• 1 x Phone
• 1 x AC Power Charger, 66W
• 1 x Type-C to Type-C Data Cable (100cm)
• 1 x Protective Film (Pre-installed)
• 1 x Tempered Glass Screen Protector
• 1 x SIM Needle
• 1 x Lanyard
• 1 x Multi-language User Manual
• 1 x Warranty Card
• 1 x Charging Instruction Card
• 1 x Safety Prompt Card

Certifications

CE, FCC, IP68, IP69K, MIL-STD-810H, WEEE, ROHS, UN38.3, MSDS, IEC62133
