Specifications

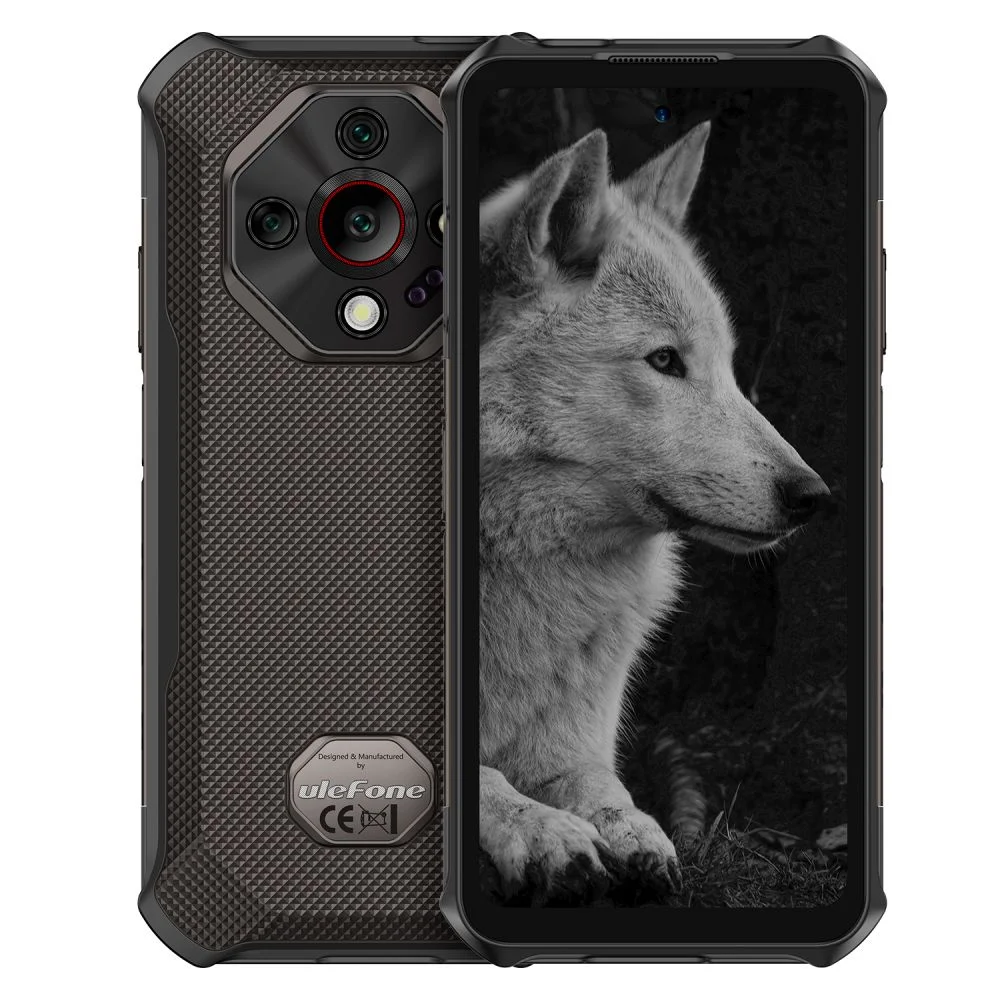

Ulefone Armor X16 Pro – Specifications

🔹 Physical Characteristics

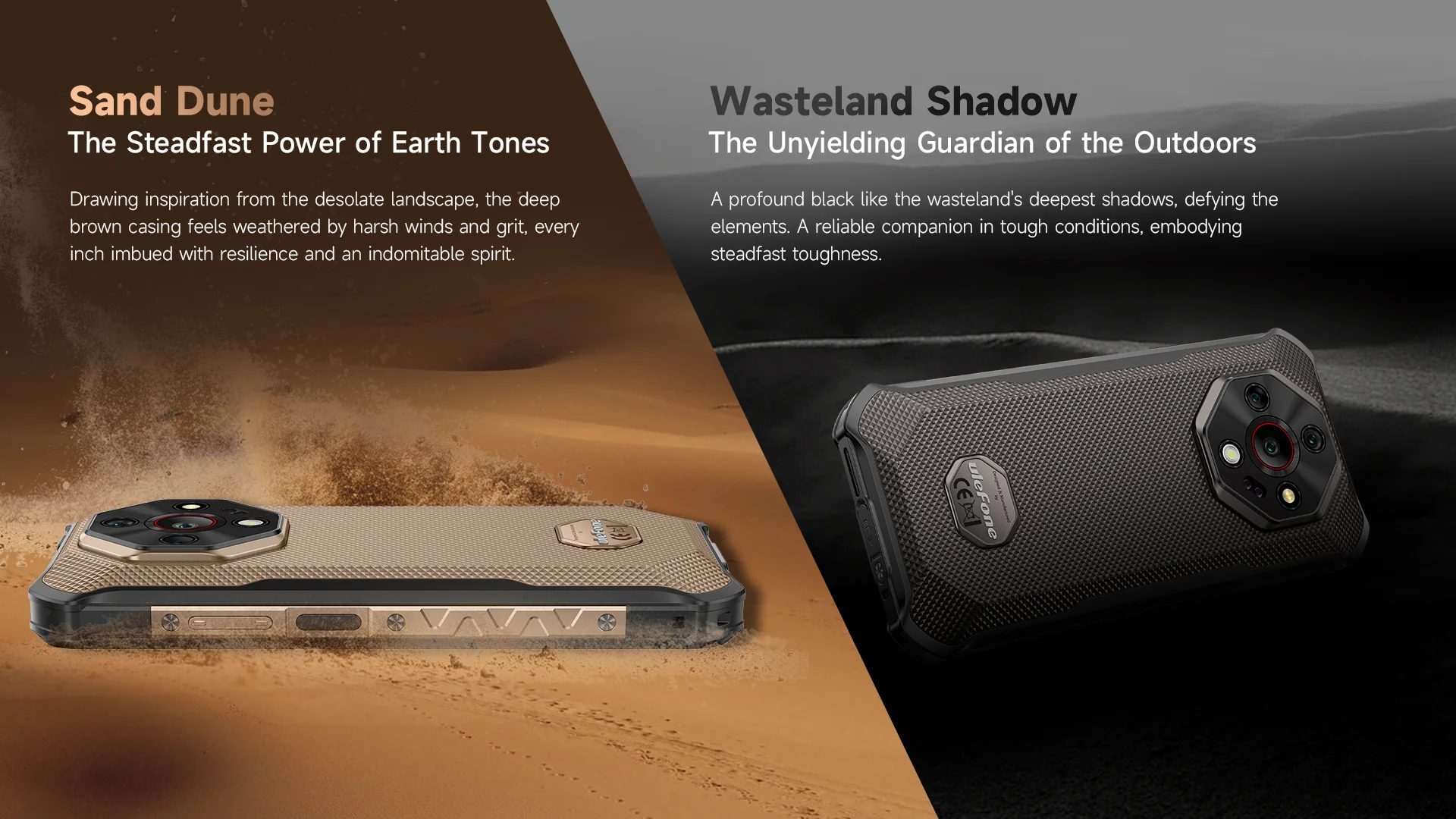

• Color: Wasteland Shadow / Sand Dune

• Material: PC

• USB: Type-C, USB 2.0

• Headphone Jack: 3.5mm

• Expansion Connector: N/A

• Card Slots: 3 (2× Nano-SIM + 1× microSD)

• Keys: Power/Fingerprint + Volume (right), Custom Key (left)

Size & Weight

• Dimensions: 173.78 × 83.4 × 17.95 mm (6.84 × 3.28 × 0.7 in)

• Weight: 394.5 g (13.92 oz)

• Package Size: 103 × 197 × 70 mm (4.06 × 7.76 × 2.76 in)

Ruggedness

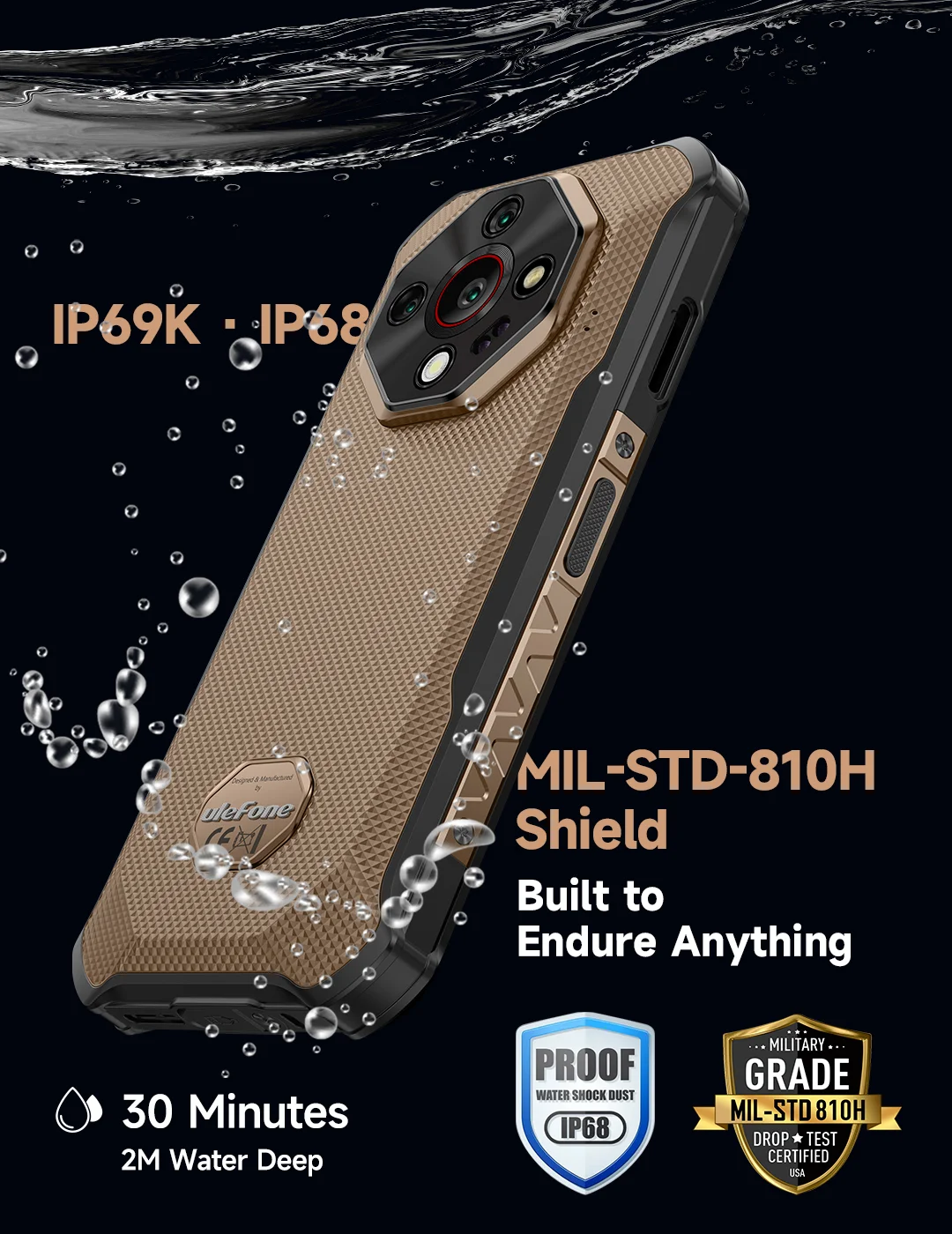

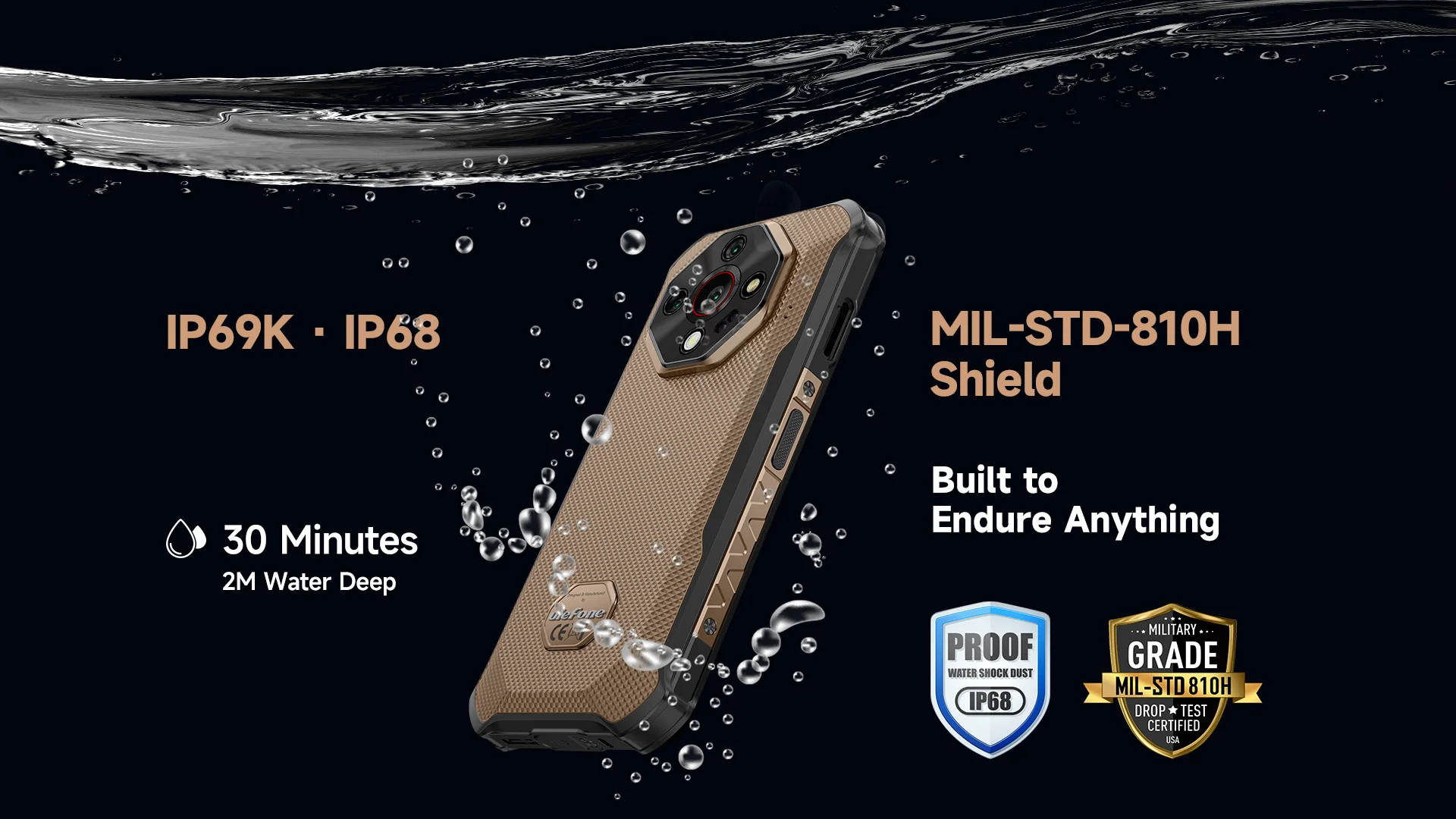

• Certifications: IP68 / IP69K / MIL-STD-810H

• Waterproof: 2 m depth up to 30 min

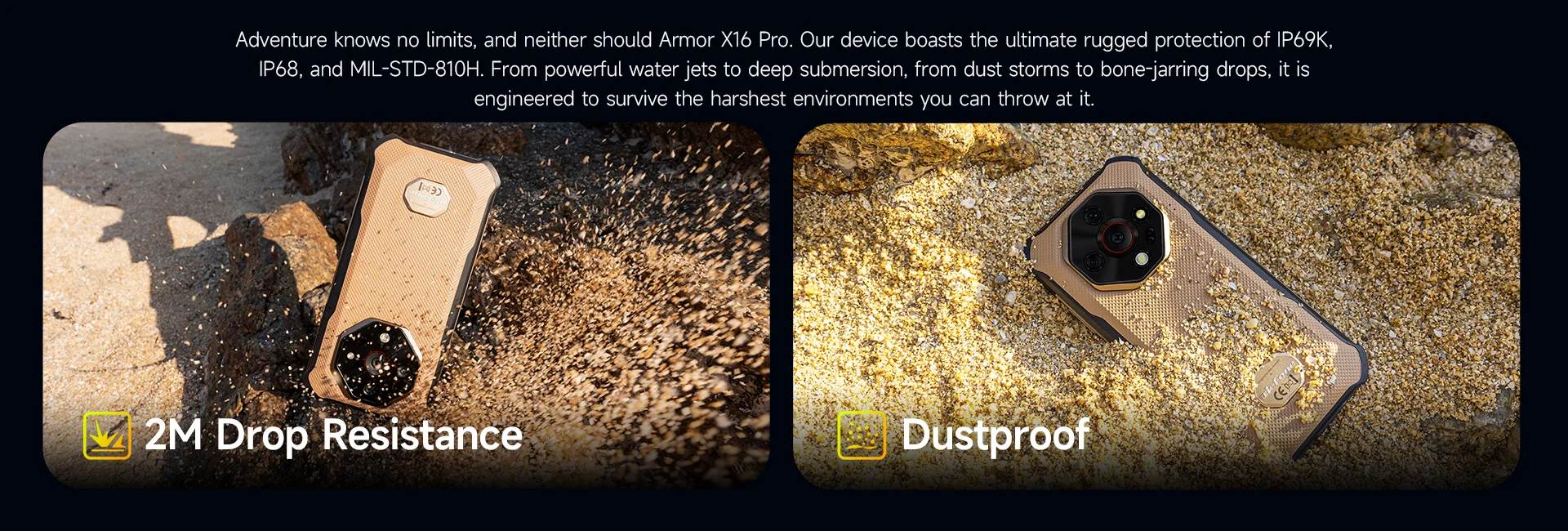

• Drop resistance: Up to 2 m

• Operating Temp: -20°C to 55°C (-4°F to 131°F)

🔹 Display

• Size: 6.56-inch

• Resolution: 1612 × 720 (HD+)

• Aspect Ratio: 20:9

• PPI: 269

• Brightness: 910 nits (max)

• Color Depth: 8-bit, 16.7M

• Refresh Rate: 120Hz

• Screen-to-Body Ratio: 84%

• Multi-touch: 10 points

🔹 Performance

• CPU: MediaTek Dimensity 6300 (Octa-core, 2× Cortex-A76 @ 2.4GHz + 6× Cortex-A55 @ 2.0GHz)

• GPU: Mali-G57 MC2

• RAM: 8GB LPDDR4X + 8GB Dynamic RAM (expandable in settings)

• Storage: 256GB UFS 2.2

• Expandable: Up to 2TB microSD

🔹 Cameras

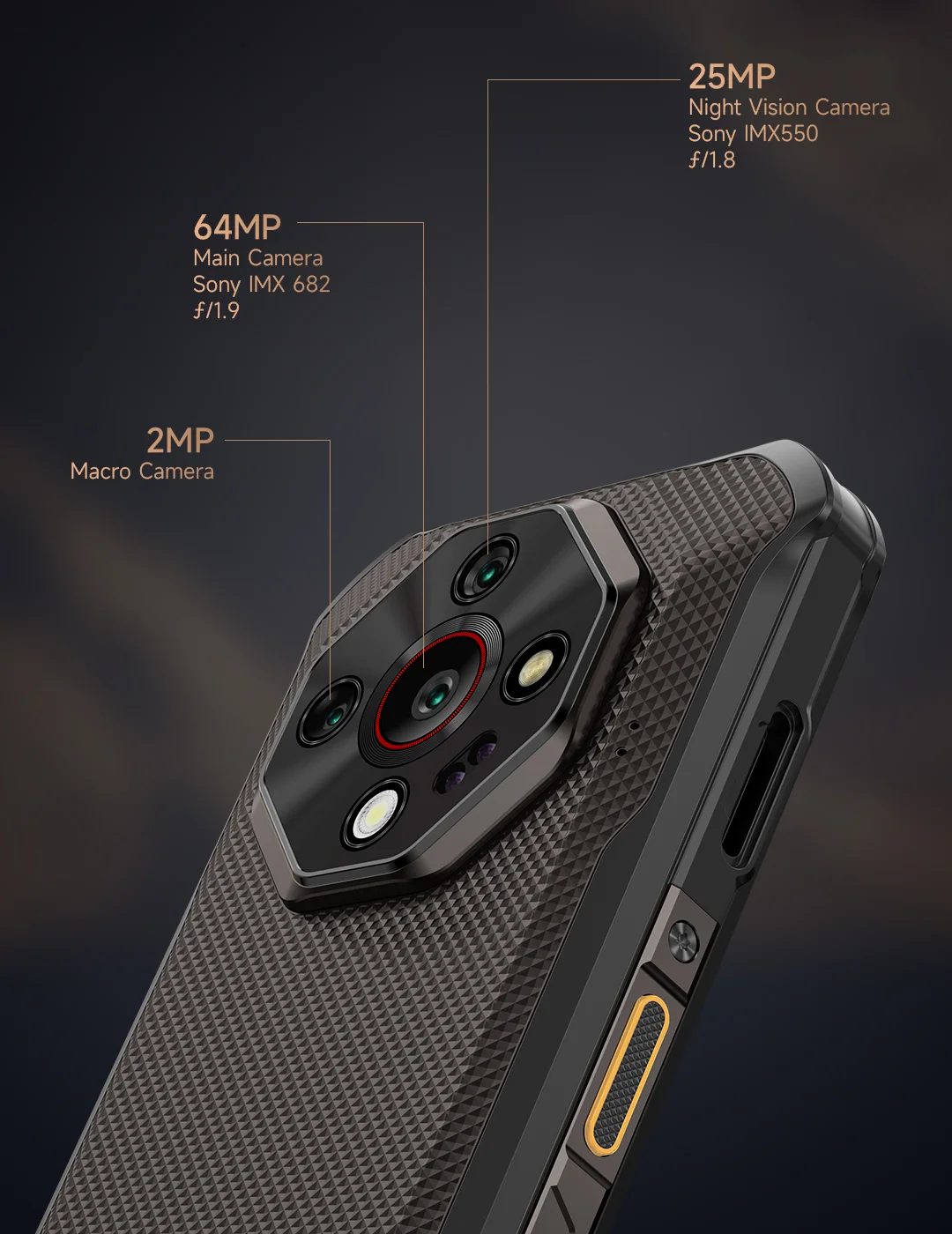

Rear Cameras (Triple):

• Main: 64MP Sony IMX682, ƒ/1.9, 85° FOV, 6-piece lens

• Night Vision: 25MP Sony IMX550, ƒ/1.8, 77.4° FOV

• Macro: 2MP OV02B10, ƒ/2.2, 73° FOV

• Flash: Single LED

• Video: 2K @ 30fps, FHD 30fps, HD 30fps, VGA 30fps

• Features: Night Vision, Film mode, 64MP mode, Macro, Night mode, Pro, Panorama, Portrait, Sports, AI Emoji, GIF, Document correction, Time Lapse, Slow Motion, Intelligent Scan

Front Camera:

• 16MP Samsung 3P8, ƒ/2.2, 76.3° FOV, 5-piece lens

• Video: FHD 30fps, HD 30fps, VGA 30fps

• Features: Filters, Watermark, Timer, Grid line, Touch capture, Anti-flicker, Location info, Camera mute, Mirror mode

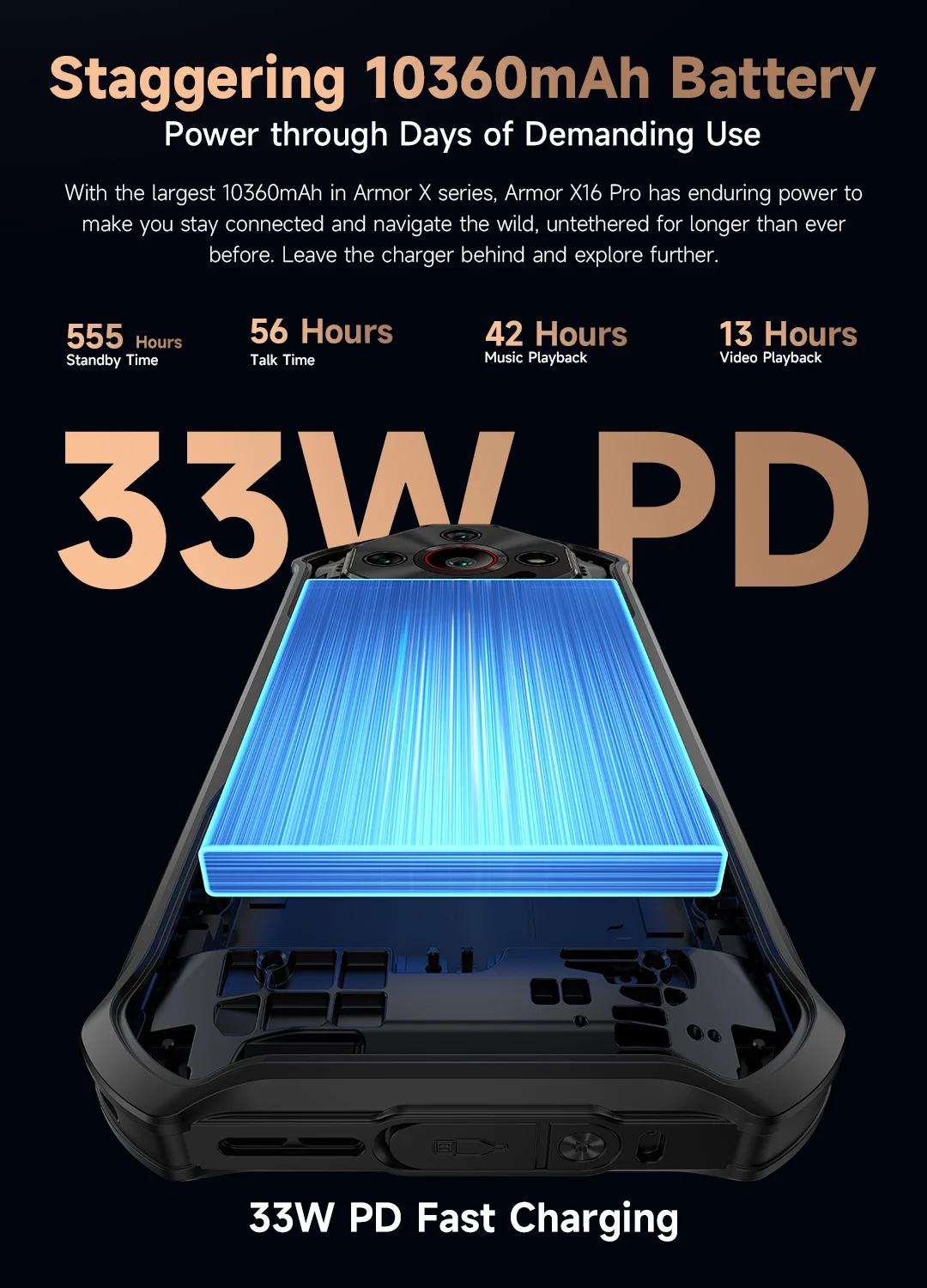

🔹 Battery & Charging

• Capacity: 10,360 mAh (Li-ion Polymer)

• Energy: 40.093 Wh

• Charging: 33W fast charge (11V/3A)

• Reverse Charge: 5W wired

• Wireless Charge: Not supported

• Standby Time: 555 hours

• Talk Time: 56 hours

🔹 Network & Connectivity

• SIM: Dual Nano + microSD

• Cellular: 5G / 4G / 3G / 2G

• Bands:

  • 5G Sub-6: N1/2/3/5/7/8/20/25/28/38/40/41/66/71/77/78/79

  • 4G FDD-LTE: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/32/66/71

  • 4G TDD-LTE: B34/38/39/40/41

  • 3G WCDMA: B1/2/4/5/6/8/19

  • 2G GSM: B2/3/5/8 CDMA: BC0/BC1/BC10

• Standby: Dual SIM dual standby

• VoLTE: Supported

• VoNR: Not supported

• WiFi: 2.4G/5G, 802.11 a/ac/b/g/n

• Bluetooth: 5.2

• Navigation: GPS, GLONASS, Beidou, Galileo, QZSS

🔹 Audio

• Speaker: 1 (1420 BOX, Smart PA AW88394, 1.5W, 100dB, 0.8cc cavity)

• Special Features: None listed

🔹 Security

• Fingerprint Unlock: Supported

• Face Unlock: Supported

🔹 System & Features

• OS: Android 15

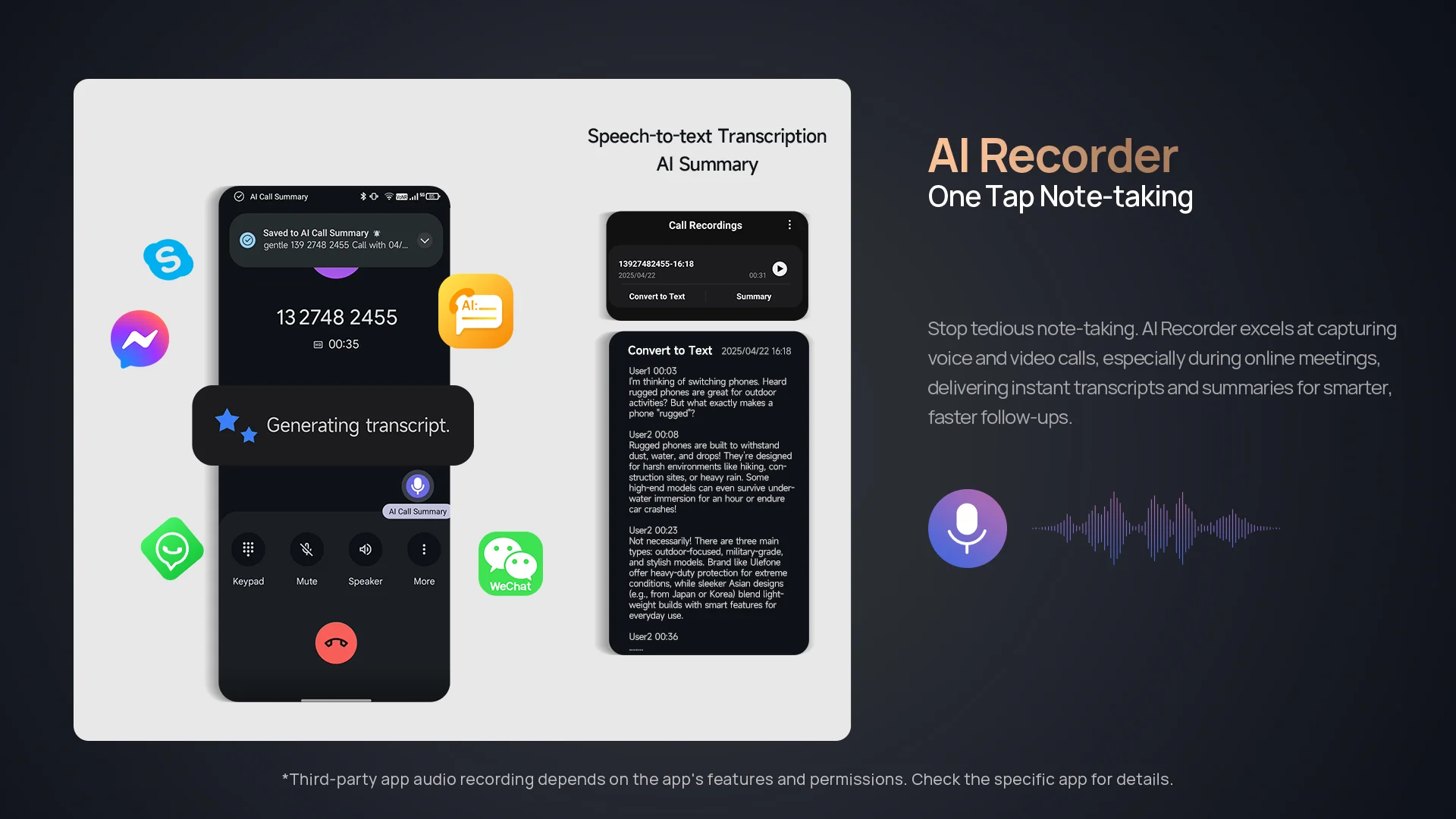

• Pre-installed Apps: Google apps, Netflix, YouTube, FM Radio, Outdoor Toolkit, Remote Control, SuperFlashLight, AI Call Summary, Background Recording, and more

• Languages: Multilingual (supports 50+ languages including English, Spanish, Arabic, Hindi, Chinese, Japanese, Korean, etc.)

• Notification Light: RGB (Red/Green/Blue)

• Battery Indicator Light: Supported

• FM Radio: Yes (headset-free)

• Media Support:

  • Audio: MID, FLAC, MP3, M4A, AAC, AMR, OGG, MP2

  • Video: MOV, MKV, 3GP, MP4

  • Image: GIF, JPEG, PNG, BMP

  • Text: TXT, HTML

• Sensors: Proximity, Gravity, Light, Accelerometer, Geomagnetic, Gyroscope, Coulomb counter, Pedometer, Barometer, Infrared, NFC

🔹 Special Features

• Underwater Camera: Yes

• Gloves Mode: Yes

• Digital Toolbox: Height meter, Compass, Gradienter, Flashlight, Alarm bell, Hanging Painting, Magnifier, Noise Test, Pedometer, Barometer, Funny Sounds, Underwater Camera

• OTG: Yes

• NFC: Yes

• IR Blaster: Yes

• Built-in Flashlight: High power glare flashlight

🔹 Package Contents

• 1× Phone

• 1× 33W AC Power Charger

• 1× Type-C to Type-C Cable (100cm)

• 1× Protective Film (Pre-installed)

• 1× Tempered Glass Screen Protector

• 1× SIM Needle

• 1× Lanyard

• 1× Multi-language User Manual

• 1× Warranty Card

• 1× Charging Instruction Card

• 1× Safety Prompt Card

Certifications: CE, IP68, IP69K, MIL-STD-810H, WEEE, ROHS, TAC, UN38.3, MSDS, IEC62133
