Power Armor 19T

Specifications

Size and Weight
Height: 175.2 mm
Width: 83.4 mm
Depth: 18.8 mm
Weight: 409 grams

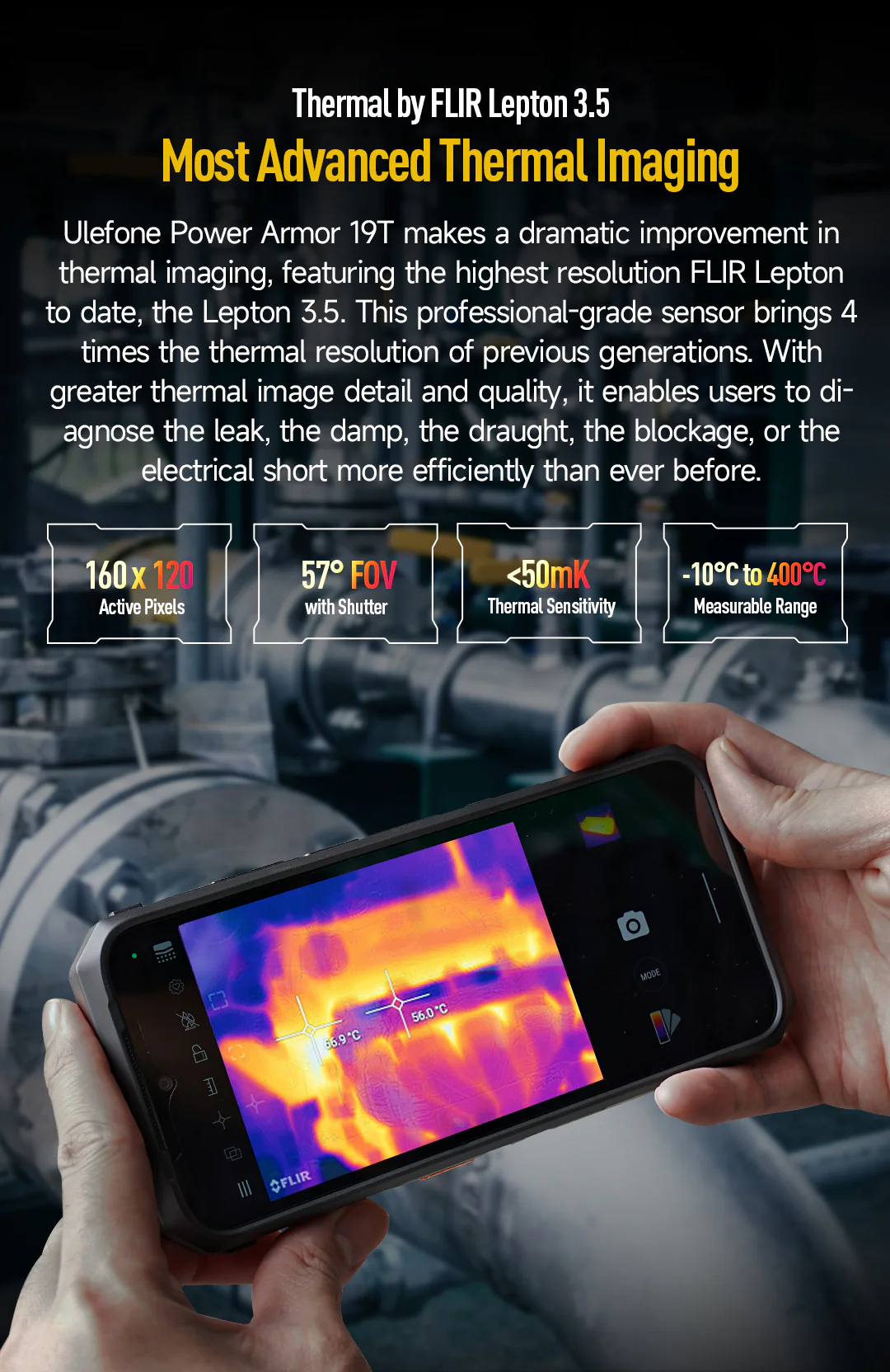

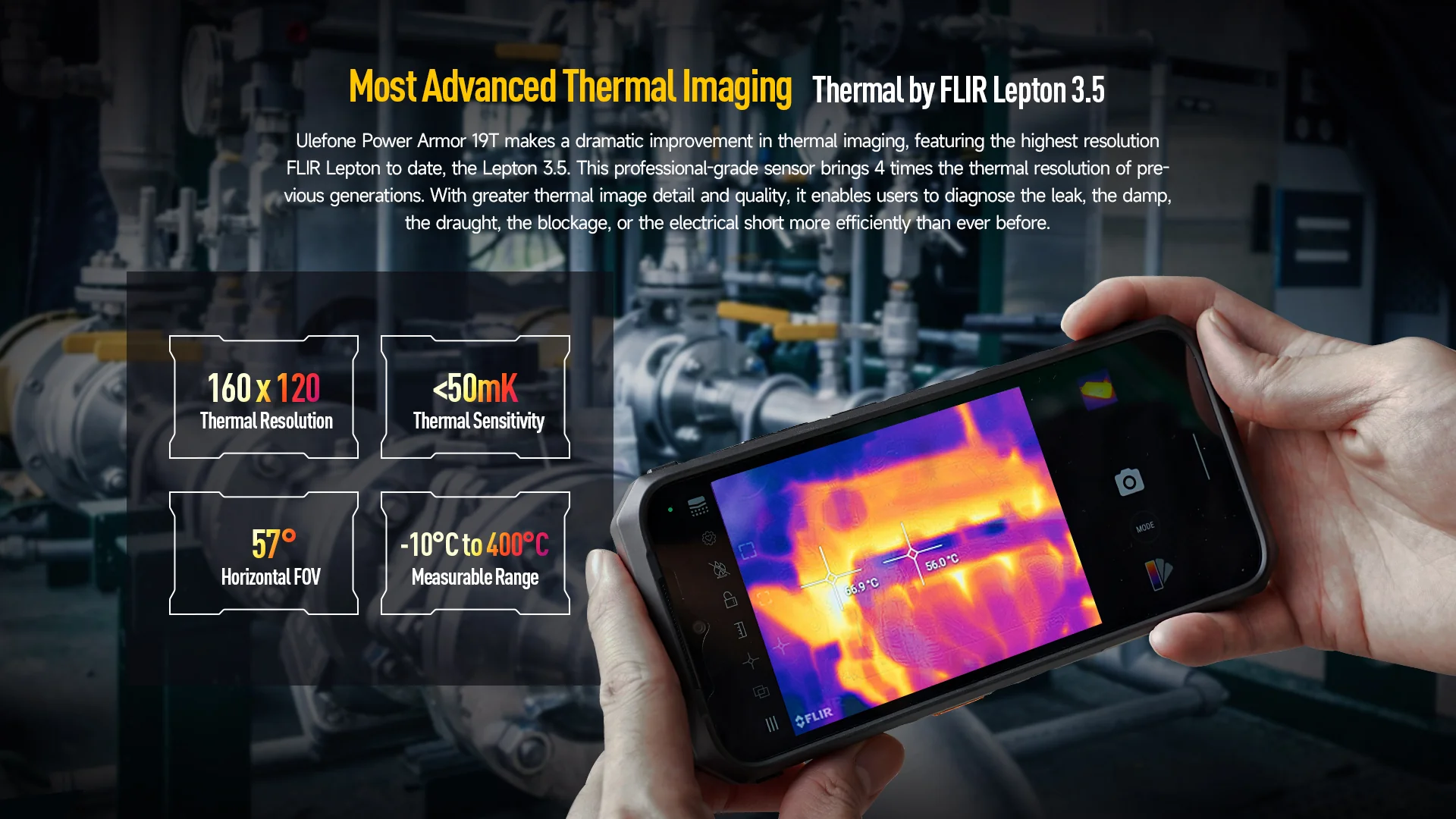

Thermal Imaging
Integrated FLIR® Thermal Imaging
FLIR Lepton with MSX® technology
Thermal Imaging Module: FLIR Lepton 3.5
Thermal Resolution: 160×120
Horizontal FOV: 57°
Measurable Temperature Range: -10℃ – 400℃
5MP Auxiliary Imaging Camera
Visualizes heat that is invisible to the naked eye, highlighting temperature contrasts.
Pre-install MyFLIR App

* MyFLIR APP support and maintenance provided by FLIR, which should be used in Power Amor 19T.

Charging and battery

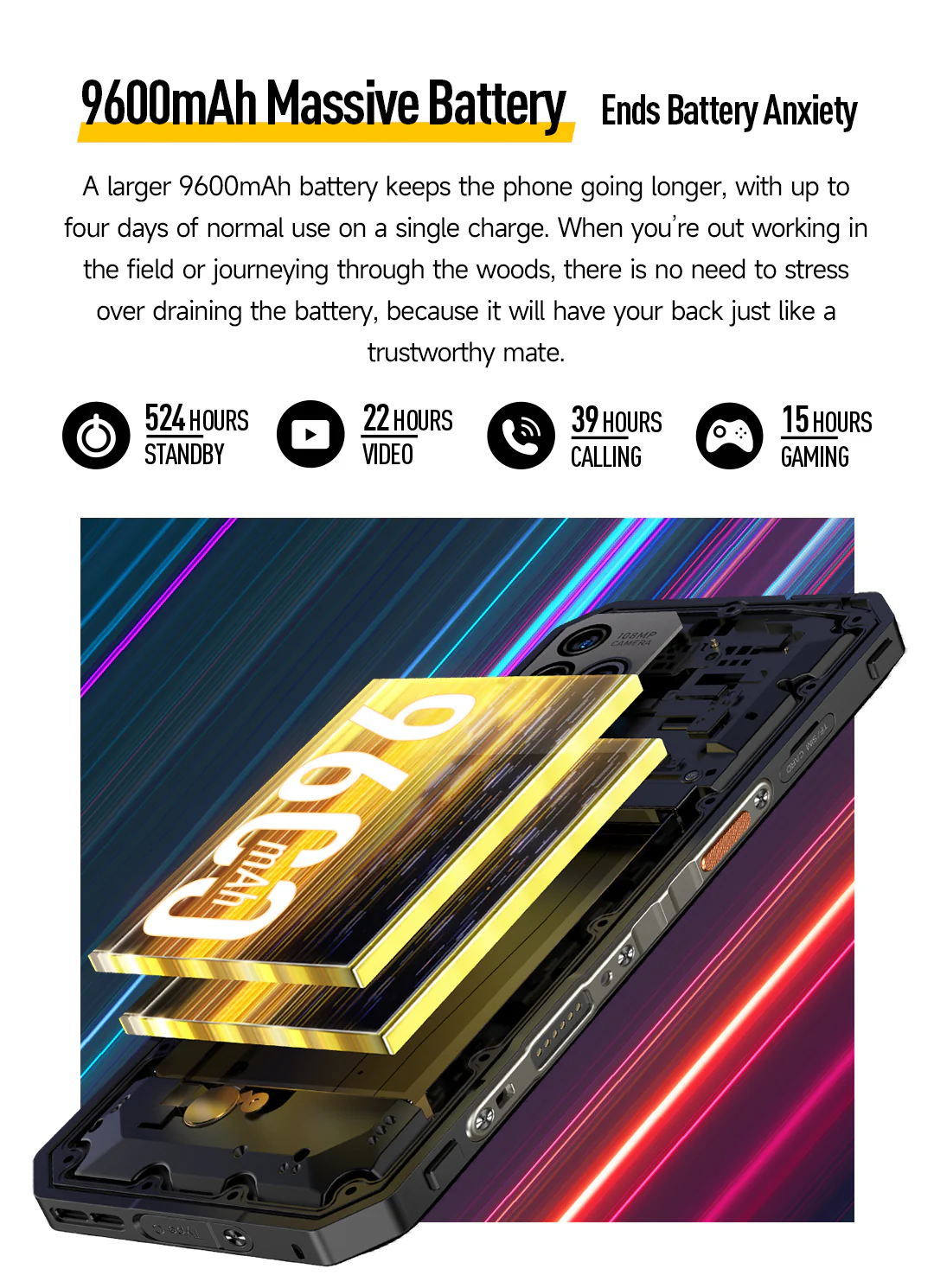

9600mAh Battery
Built-in lithium-ion polymer battery
USB Type-C port

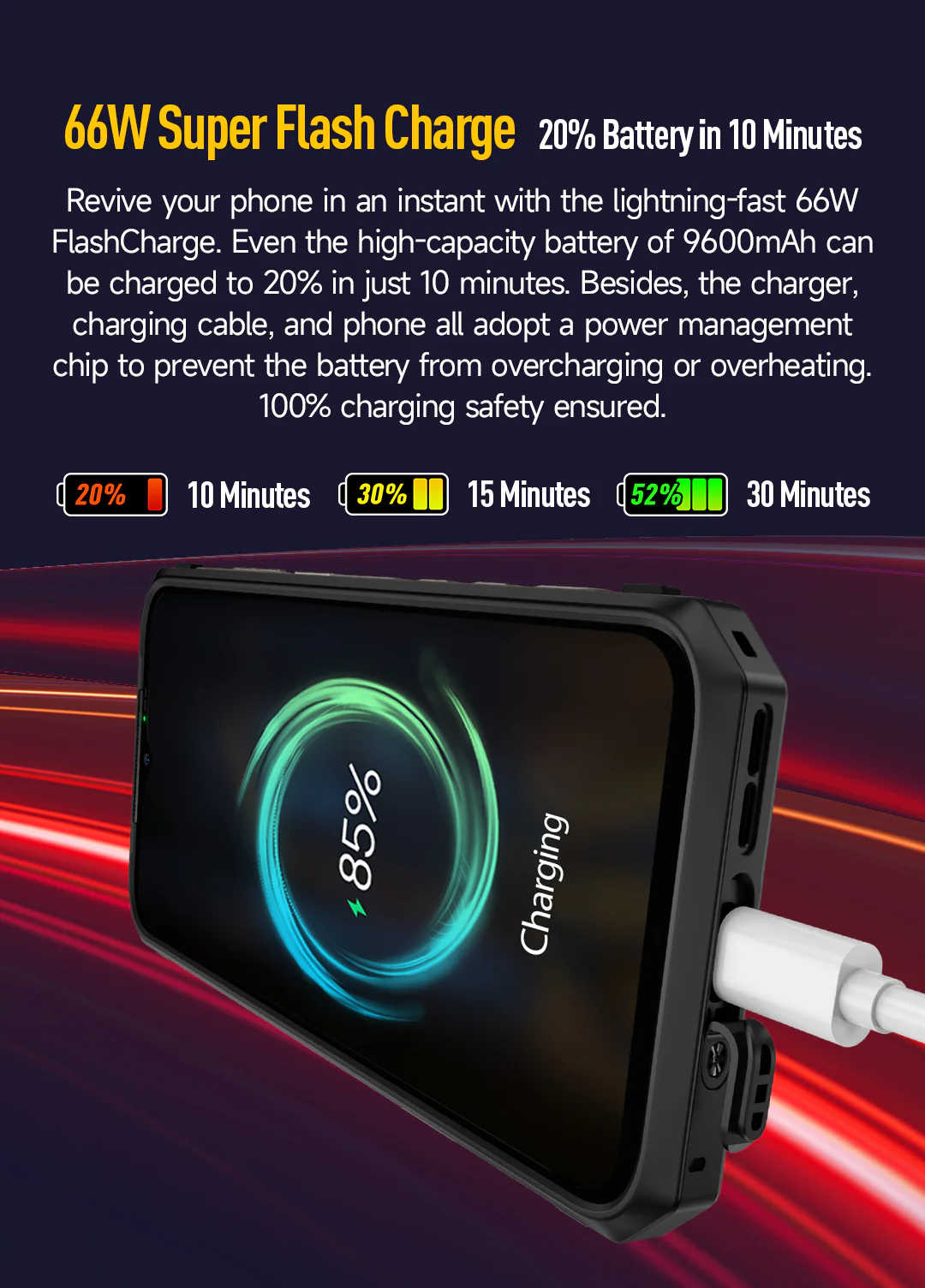

Supports 66W super fast charging

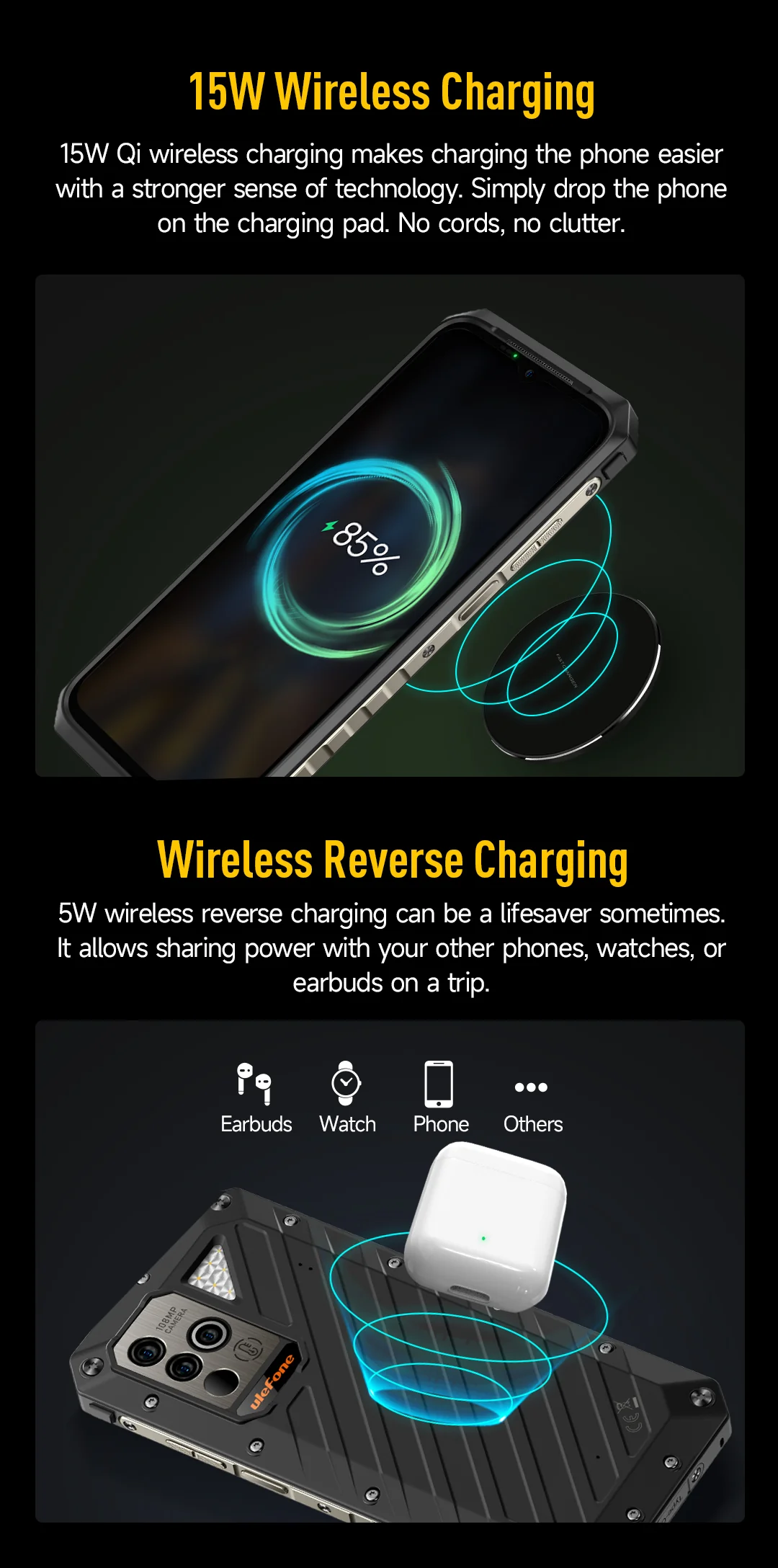

Supports 15W wireless charging(Qi Standard)
Supports wireless reverse charging

Battery Life
Standby Time Up to 524 Hours
Talk Time Up to 39 Hours

*Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual product may be slightly above or below the nominal battery capacity.
*Non-removable battery. Removing the battery may cause damage to the device.
*Use with original charger and data cable, the max charging power can reach 66W. The actual charging power will intelligently change with different scenarios, please refer to the actual use.
*Under the Qi protocol, the max wireless charging power is 15W. The actual charging power will intelligently change with different scenarios, please refer to the actual use.

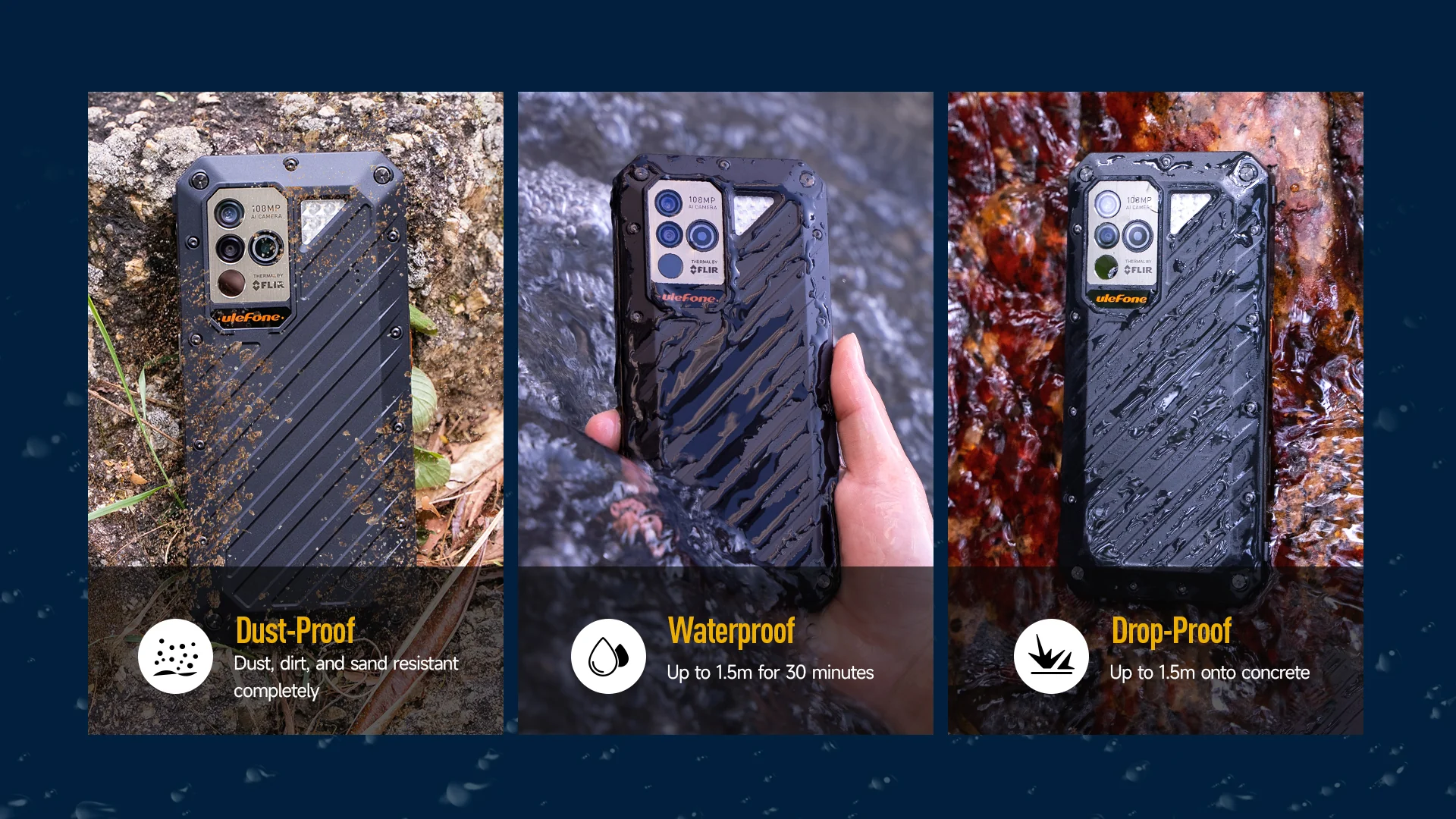

Rugged
Splash, Water and Dust Resistant
Rated IP68 (maximum depth of 1.5 metres up to 30 minutes) under IEC standard 60529
Rated IP69K under IEC standard 60529
MIL-STD-810H Certification

*Power Armor 19T is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 1.5 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Power Armor 19T. Liquid damage not covered under warranty.

Processor
MediaTek Helio G99
CPU: MediaTek MT6789
CPU architecture: 2*Cortex-A76+6*Cortex-A55, 6nm process
CPU frequency: Octa Core, up to 2.2GHz
GPU: Arm Mali-G57 MC2
GPU frequency: up to 1GHz

Storage and RAM
12GB+256GB
RAM: 12GB large memory
Flash storage: 256GB phone storage
microSD memory card Up to 2TB

*Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device.
*The Virtual Memory Expansion can be activated in Settings and adds up to 5GB of RAM. Some software may not be compatible with this feature.
*microSD card needs to be purchased separately. Recommended to use Class 10 memory cards, other memory cards are not guaranteed to be fully compatible.

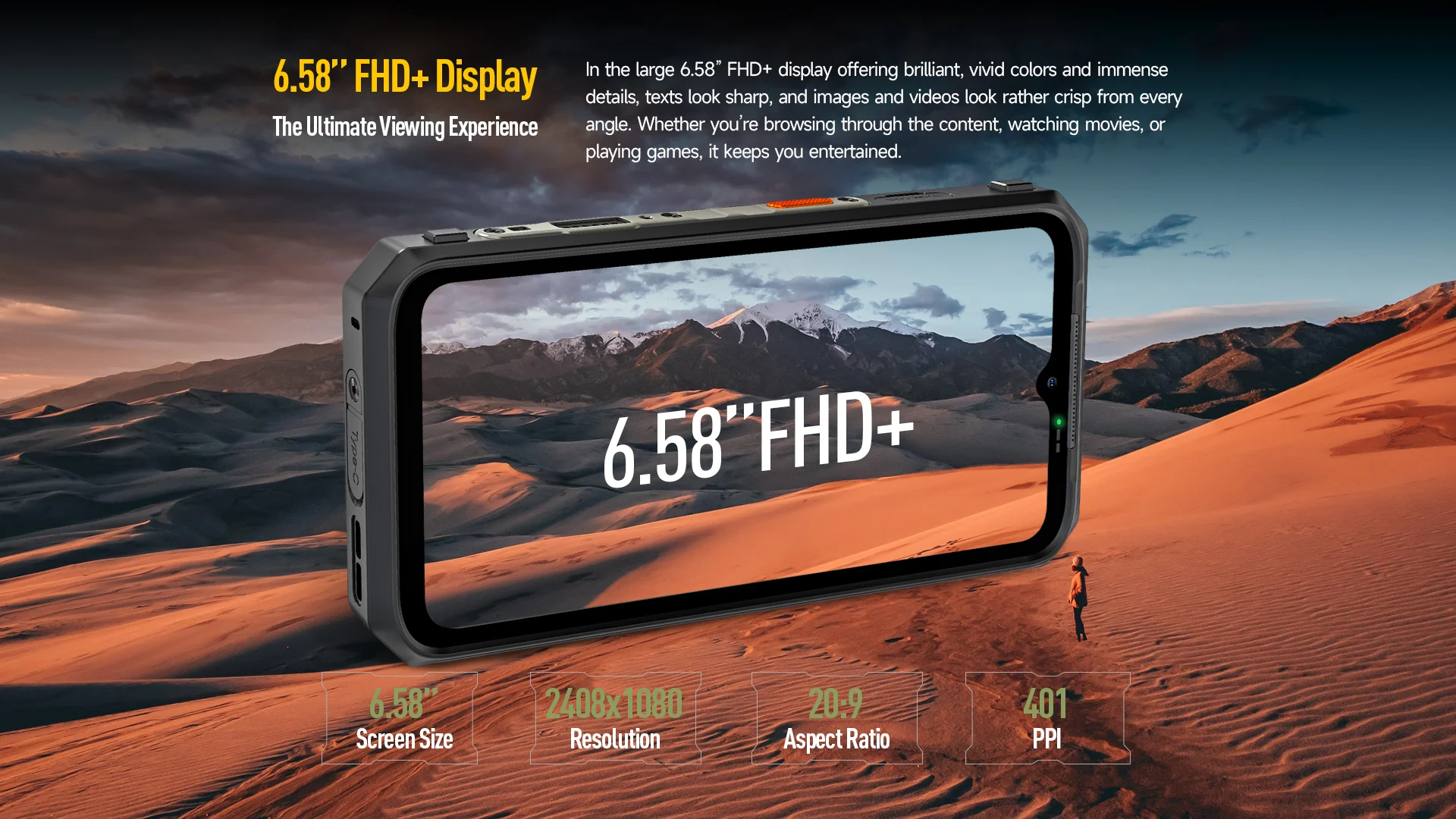

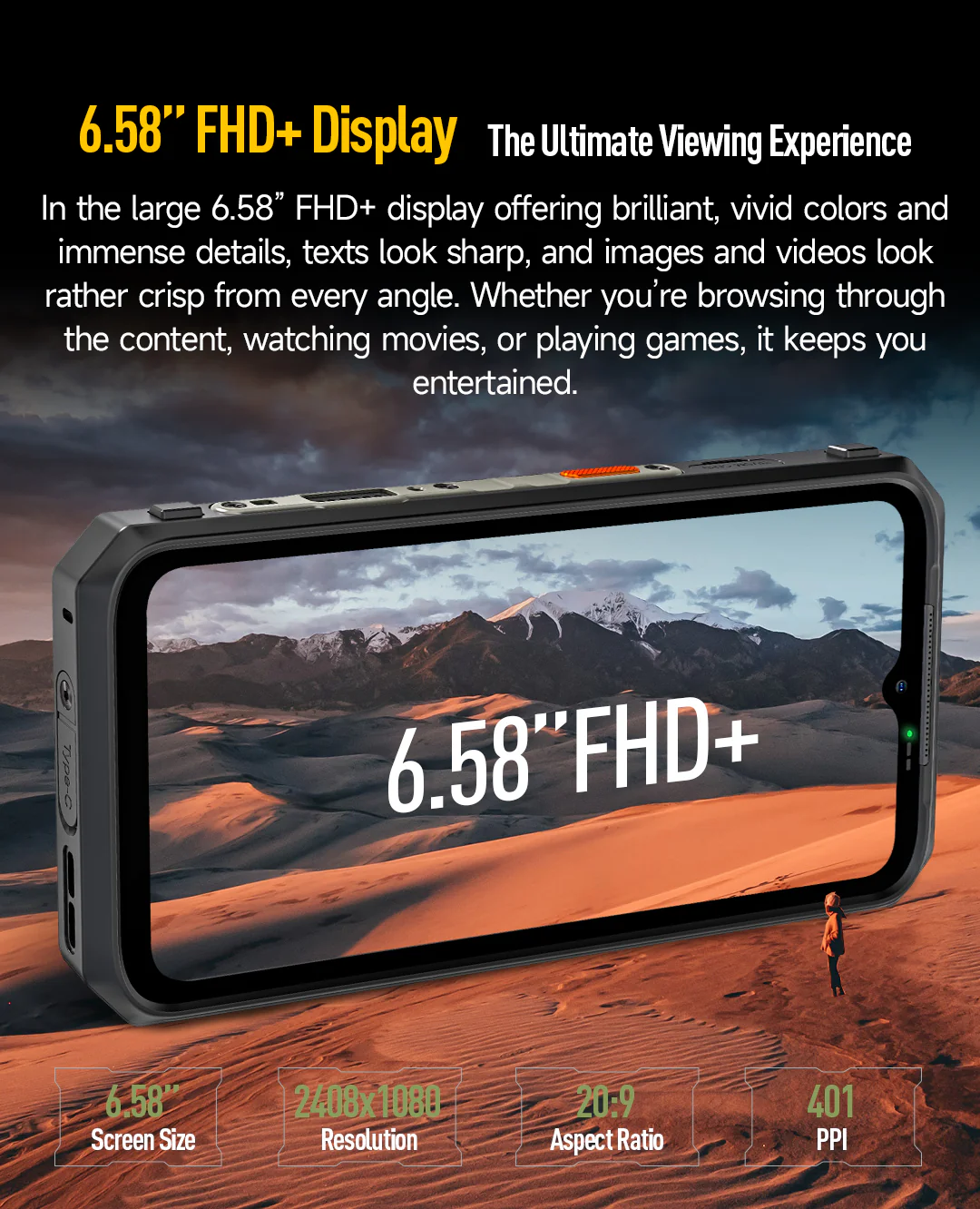

Display
6.58‑inch (diagonal)
Waterdrop Display
All-screen LCD Multi-Touch display with IPS technology
20:9, 1080 x 2408 FHD+
401 ppi

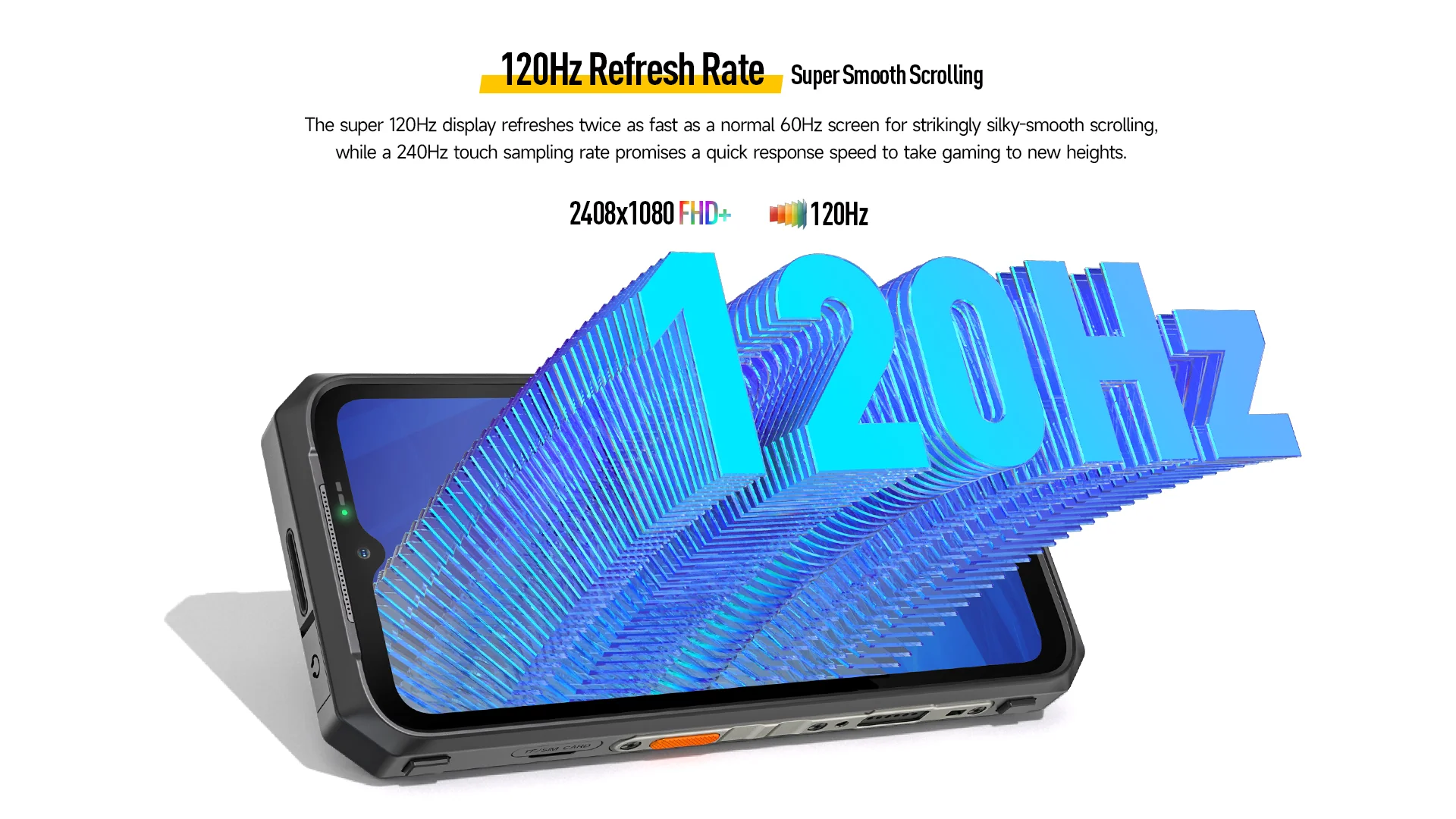

Refresh rate: 120 Hz
Touch sampling rate: 240Hz
Corning Gorilla Glass 5 (1.1mm thickness)
Fingerprint-resistant oleophobic coating

*With a rounded corners design on the display, the diagonal length of the screen is 6.58 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller).
*The resolution measured as a standard rectangle, with a rounded corners design, the effective pixels are slightly less.

Rear Camera

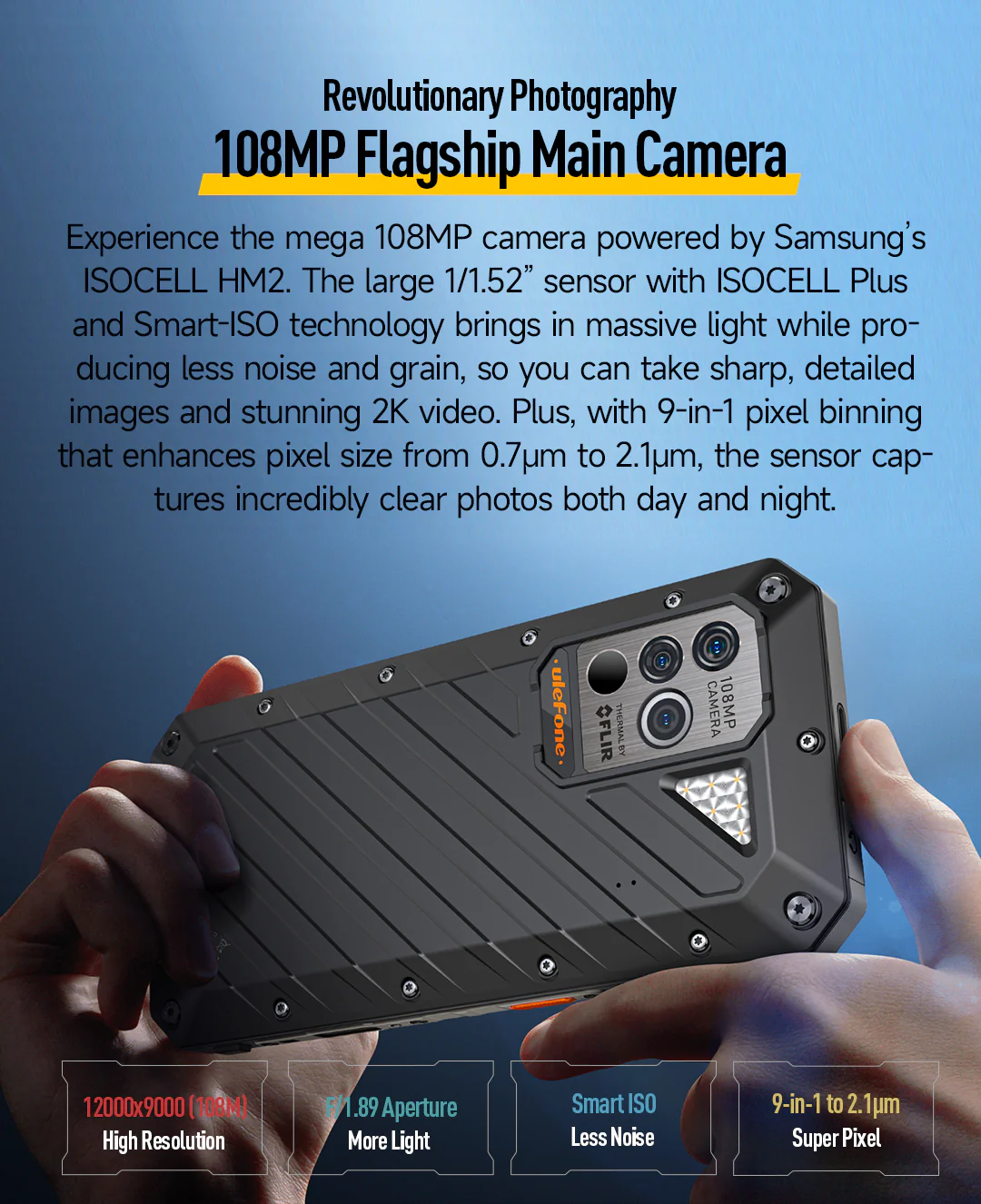

108MP, Super Triple Camera System
108MP Ultra High-Resolution Primary Camera
Samsung HM2 sensor, 0.7µm, 6 piece lens
FOV 82.3°, ƒ/1.89 large aperture
5MP Microlens Camera，60x magnification
Samsung S5K5E9 sensor, FOV 77°, ƒ/3.0 aperture
Photo resolution: up to 9000×12000 pixels
Video resolution: up to 2560×1440 pixels
6x LED Flash

Rear camera photography features
Microcope, Beauty Mode, Hi-Res Mode, Pro Mode, Portrait, Gif, Panorama mode, Mono Mode, Bokeh Mode, QR Code

Rear camera video features
2K recording 30fps
1080P recording 30fps
720P recording 30fps
480P recording 30fps

*The depth sensor can only be used as a photography assistant to improve the photo effect and needs to be used with other cameras for imaging.
*The actual photo and video resolution may vary depending on the shooting mode.
*The camera software functions are subject to actual presence, some functions and names may vary depending on the software version.

Front Camera
16MP selfie camera
SONY IMX481 Sensor
ƒ/2.0 large aperture, 5 piece lens

Front camera photography features
Normal mode, Beauty, High-Res, Gif, Mono，Location info, Watermark, Mirror, Shutter Sound, Touch Capture, Self timer, Grid line, Anti flicker, ZSD
Microphone, Location info, Mirror, Shutter Sound, Touch Capture, Self timer, Grid line, Anti flicker

Front camera video features
1080P recording 30fps
720P recording 30fps
480P recording 30fps

*The camera software functions are subject to actual presence, some functions and names may vary depending on the software version.

Underwater Photography
Supports to take photos & video recording
Supports to start/end operation underwater
Supports to quickly switch shooting modes underwater
Unlock Options
Supports Fingerprint Unlock
Side-Mounted Fingerprint, Integrate power key and fingerprint sensor together
Capacitive Touch Sensor
Response speed: Up to 0.1s
Supports the enrollment of 5 sets of fingerprint
Supports Face Unlock

Network
Supports use of dual SIM cards from different carriers
Both cards can access 4G connectivity simultaneously
Dual Nano SIM; either card can be set as the primary card
Supports 4G/3G/2G
Supports VoLTE HD calling
Supported network bands
4G Network
LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20
25/26/28A/28B/66/71
LTE-TDD: B34/38/39/40/41
3G Network
WCDMA: B1/2/4/5/6/8/19
2G Network
GSM: B2/3/5/8
CDMA: BC0/BC1/BC10

*Dual 4G SIM requires the support of local telecom operator services, and may not be available in all regions.
*Only certain regions and telecom operators support VoLTE.

Connectivity
WLAN
Supports protocols: 802.11 a/ac/b/g/n
Supports 2.4G Wi-Fi / 5G Wi-Fi

Bluetooth
Supports Bluetooth 5.2

Navigation and positioning
Supports multiple positioning systems
GPS
GLONASS
Galileo
BEIDOU
Supports Digital Compass

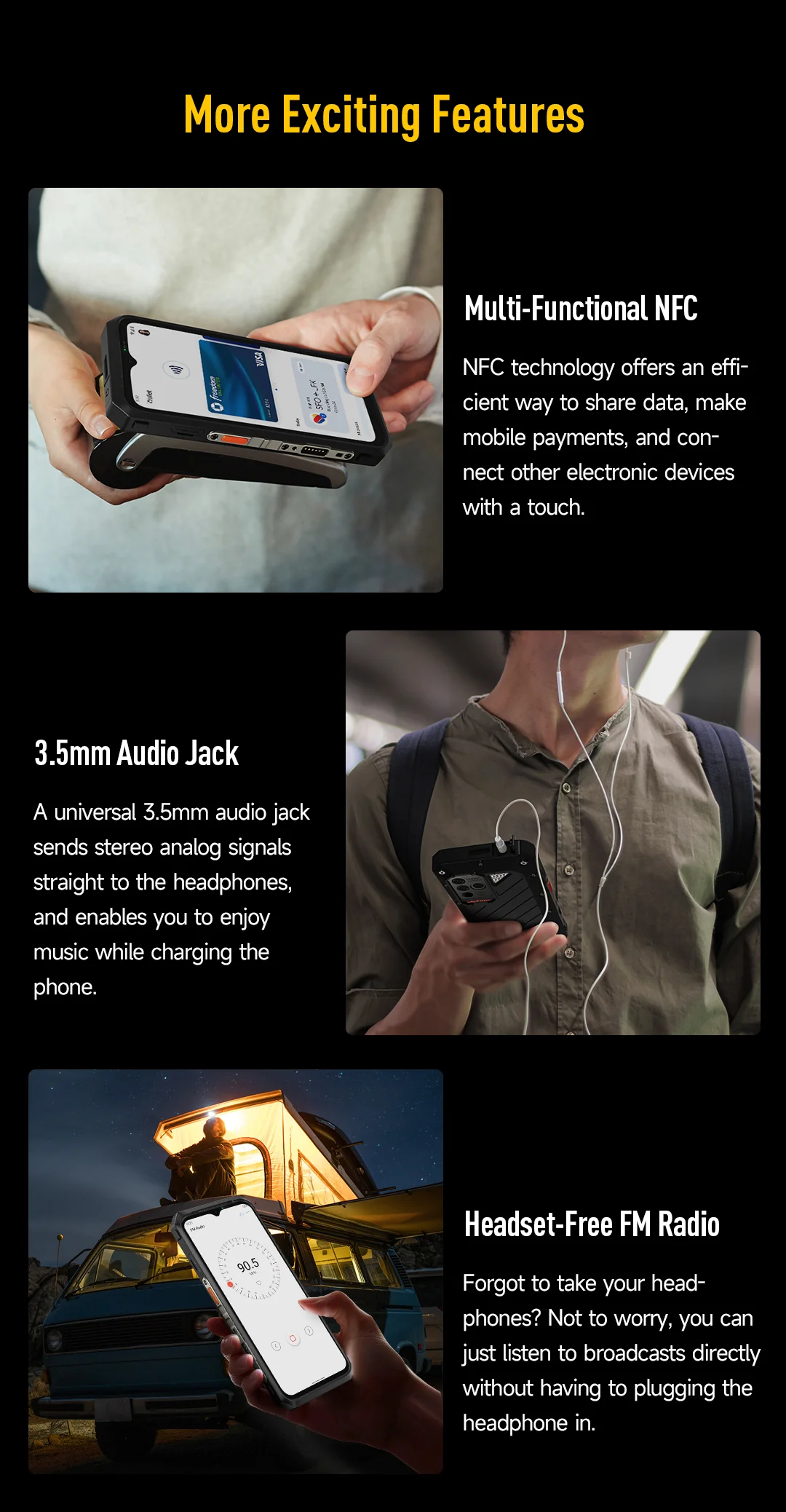

NFC
Supports Google Pay
Supports Transit, Loyalty Cards, Gift Cards and Plane tickets

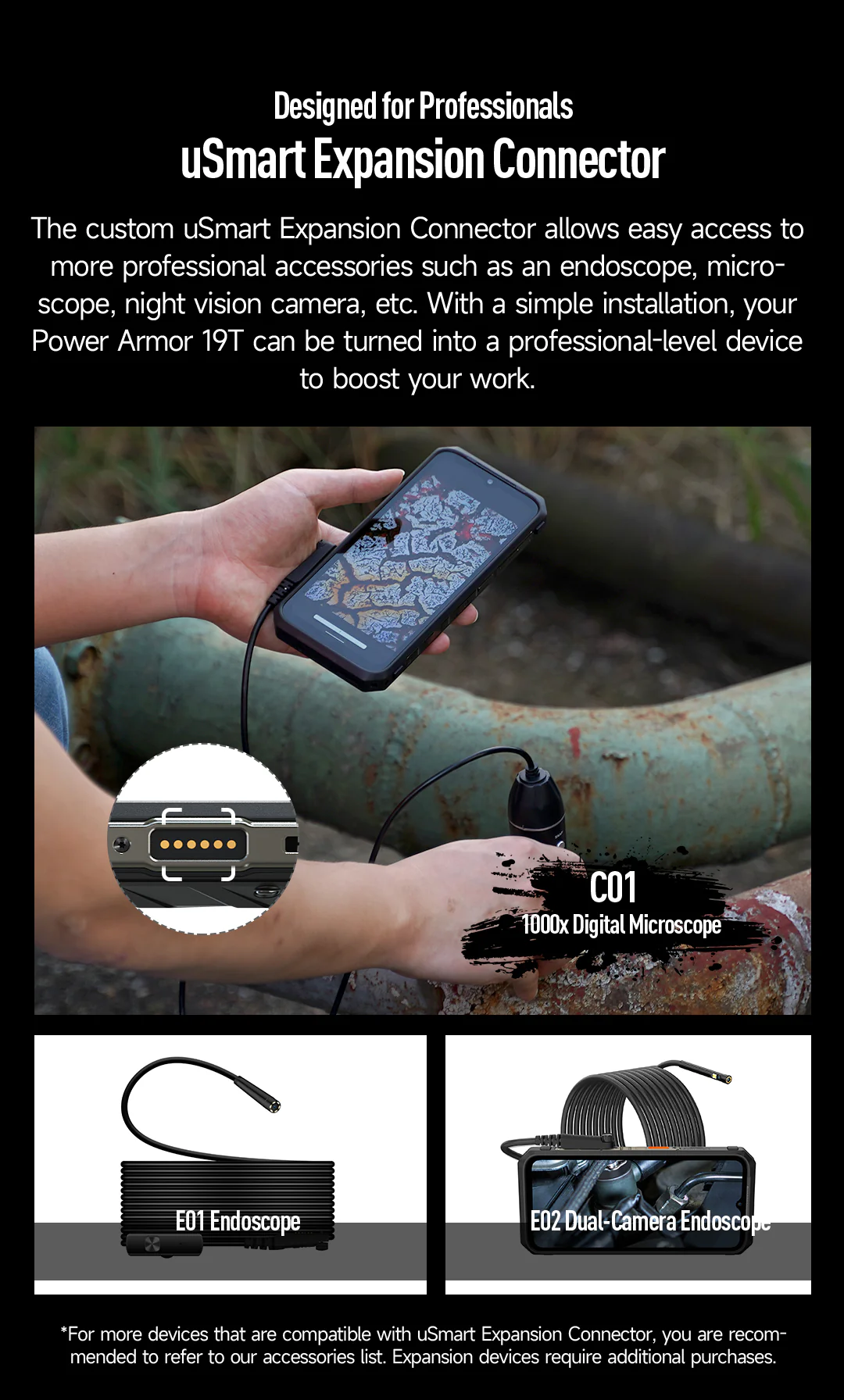

uSmart Expansion
Endoscope E1
uSmart E02 Endoscope
uSmart C01 Supermicroscope

*For more devices that are compatible with uSmart Expansion Connector, you are recommended to refer to our accessories list. Expansion devices require additional purchases.

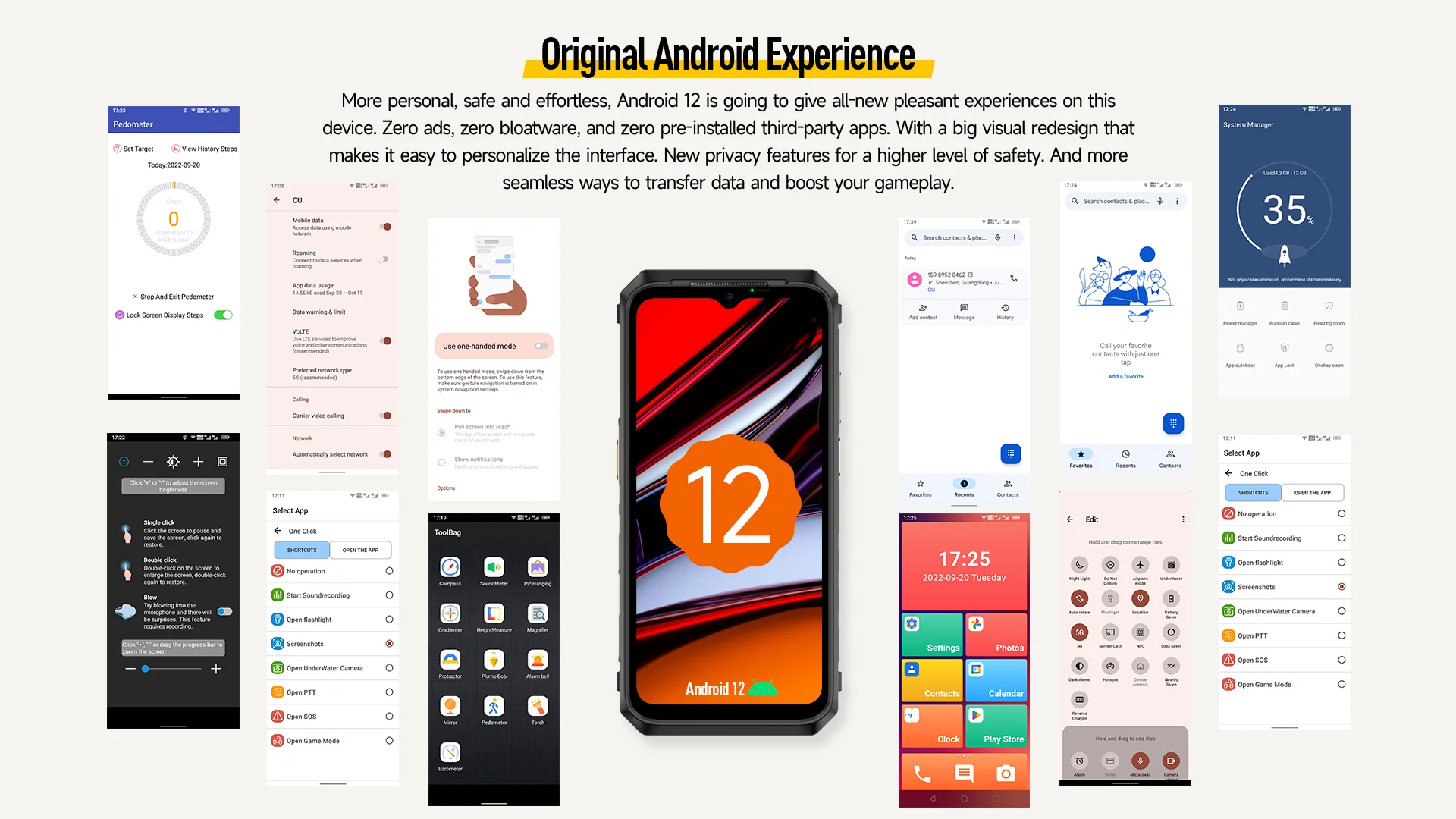

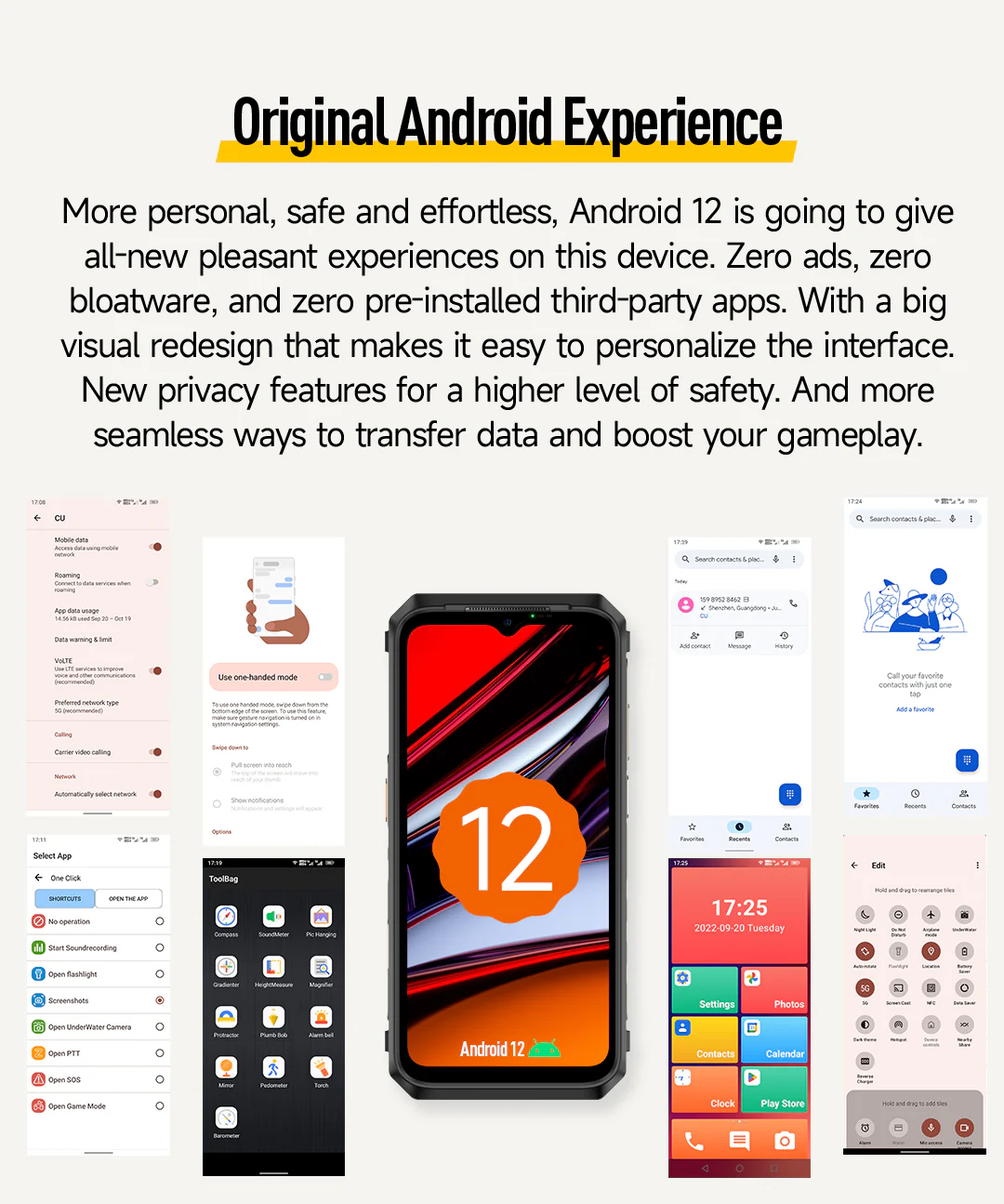

Operating System
Android 12
Pure Android System
No ads

Sensors
Proximity sensor, Light sensor, Gravity sensor, Acceleration sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer, Thermal Imaging sensor, Air pressure sensor, NFC

Multimedia
Video MOV, FLV, MKV, AVI, 3GP, MP4
Audio MID, FLAC, MKA, MP3, M4A, AAC
AMR, OGG, MP2
Image GIF, JPEG, PNG, BMP
Ebook TXT, HTML

Ports
USB 2.0, Type-C
3.5 mm Headphone Jack

Card slot
Two(2), Nano SIM + Nano SIM / microSD

Notification Light
Support, tri-color light, red / green / blue
Supports charging prompt

SAR
Maximum 10g SAR
Head: 1.111W/kg Body: 1.035W/kg

Language support
Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese and others, 200 Android languages in total.

In the box
Power Armor 19T
AC Power Charger Adapter
Data Cable
Protective Film(Pre-installed)
Tempered Glass Screen Protector
SIM Pick
Lanyard
Multi-language User Manual
Thermal Imaging Camera User Manual
Multi Function Instruction Card
Charging Instruction card
Safety Prompt card
Warranty card
