Armor 25T Pro

Specifications

Size and Weight
Height: 177.4 mm
Width: 81.4 mm

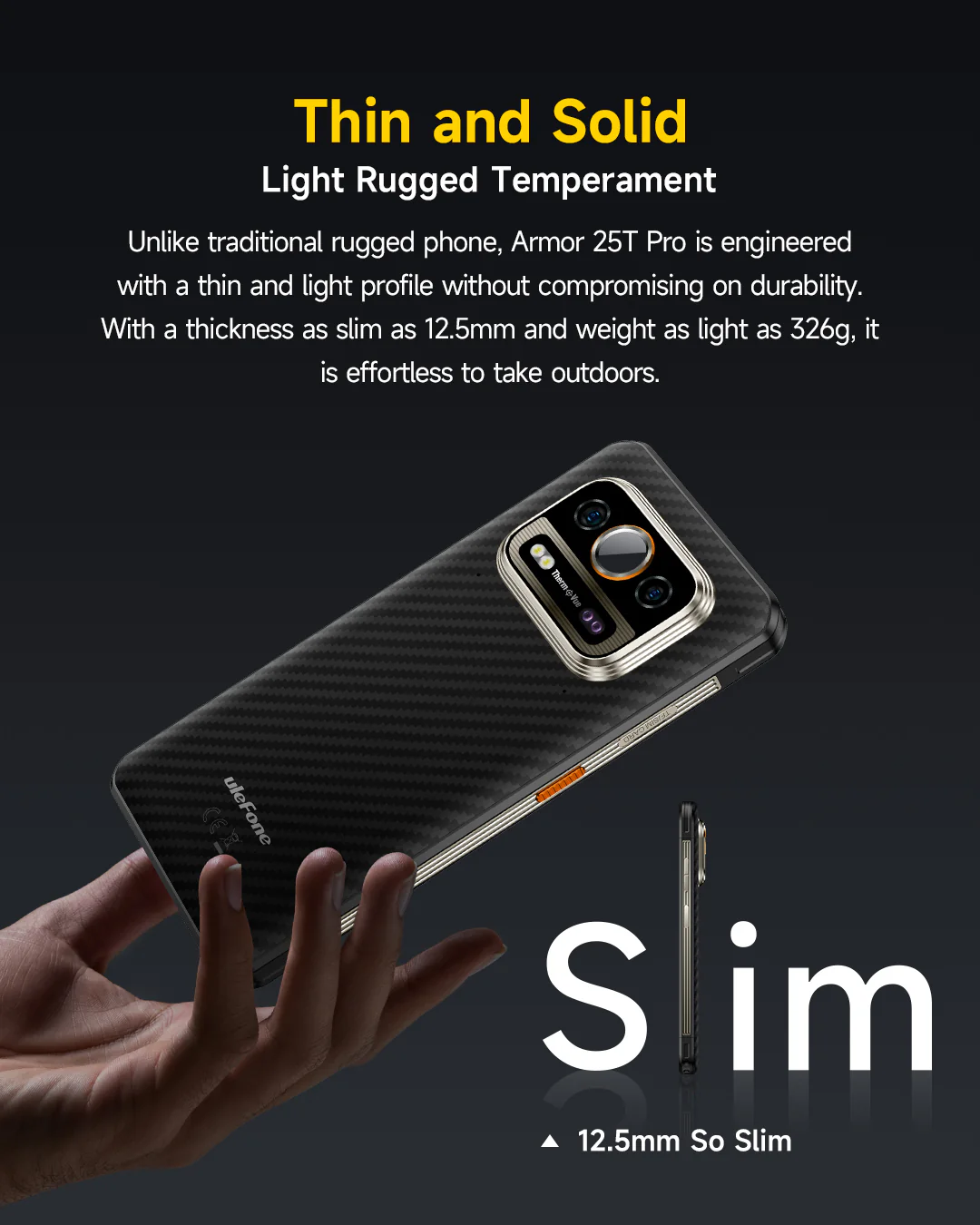

Depth: 12.5 mm
Weight: 326 grams

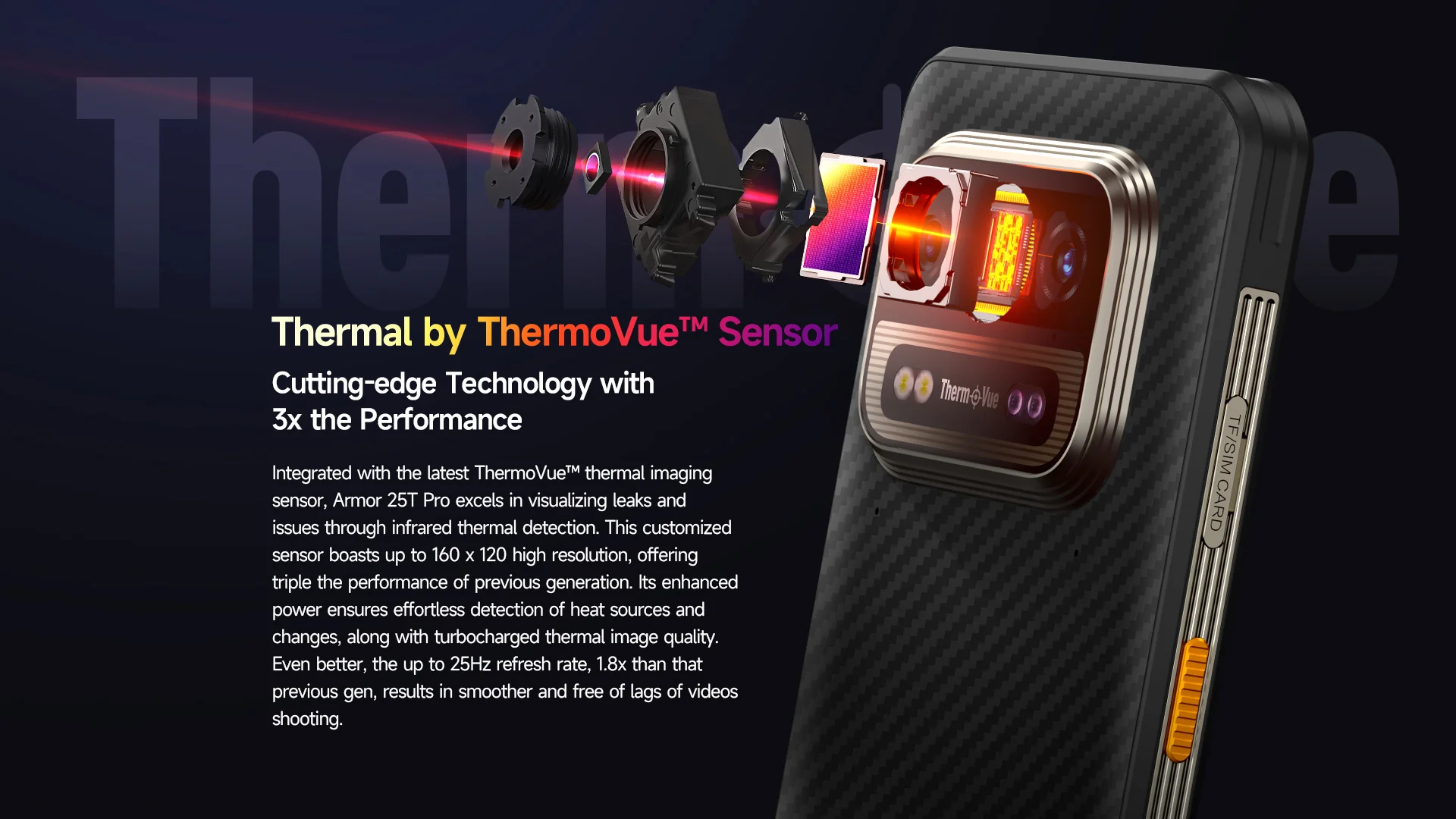

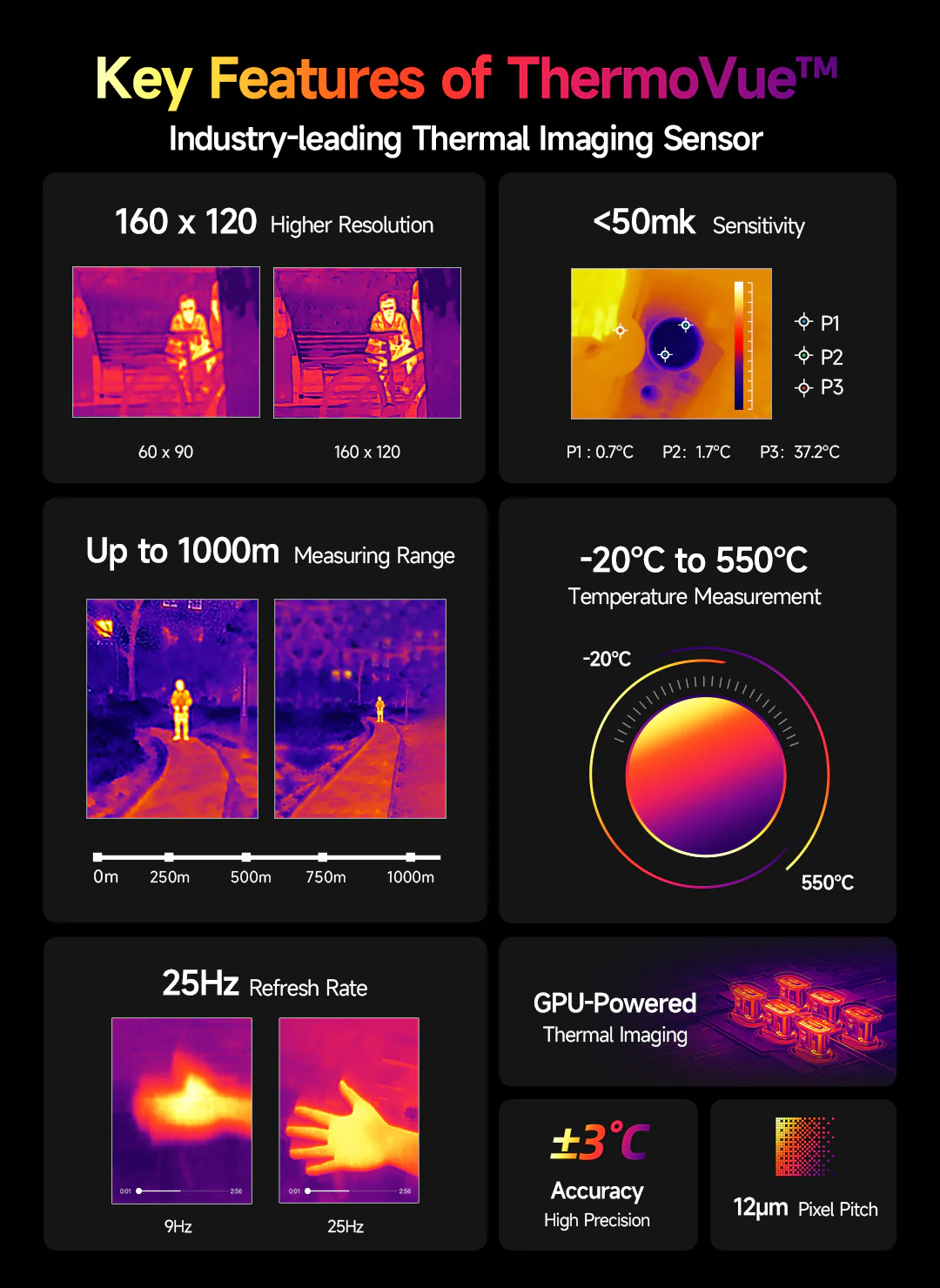

Thermal Imaging

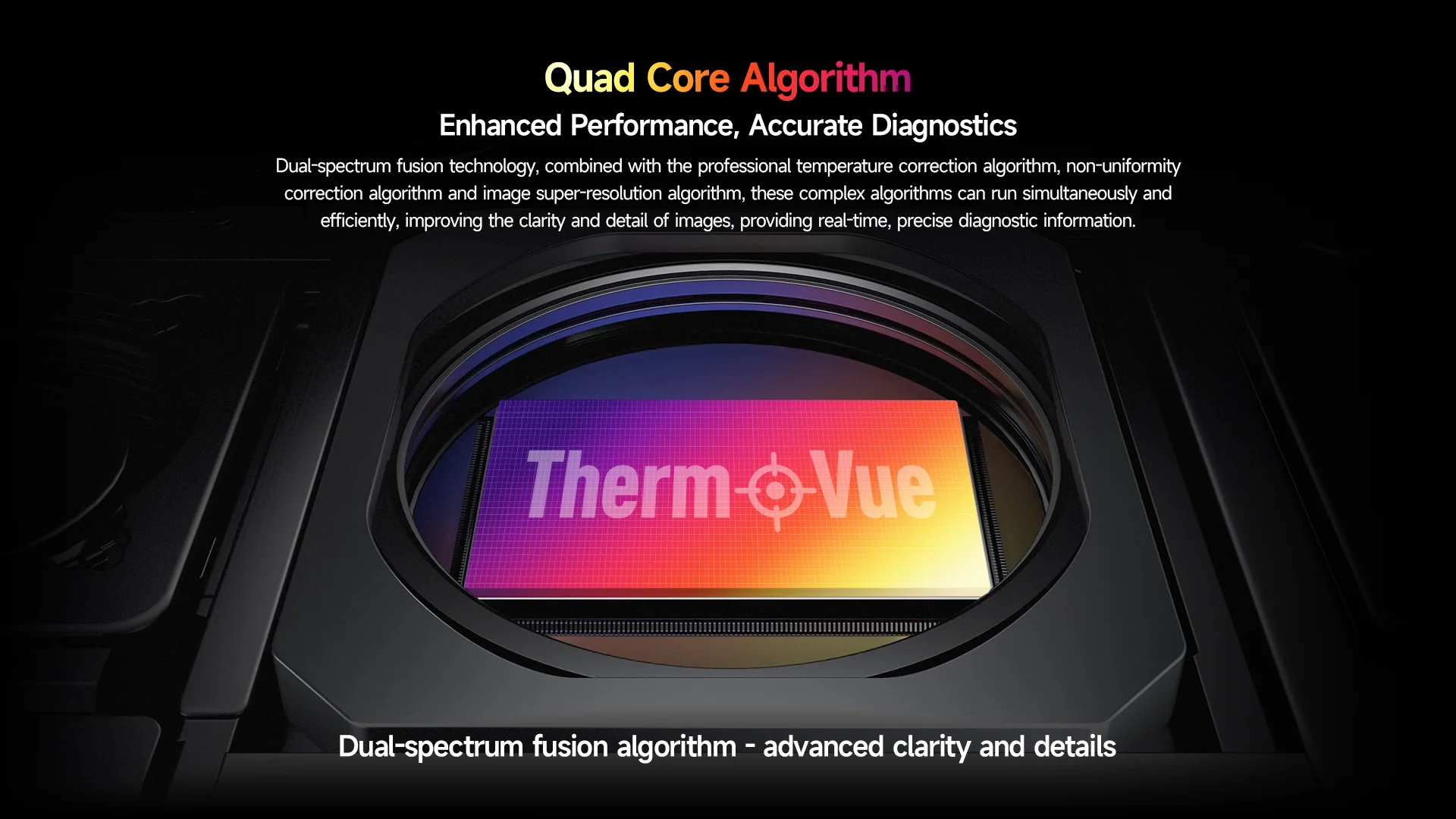

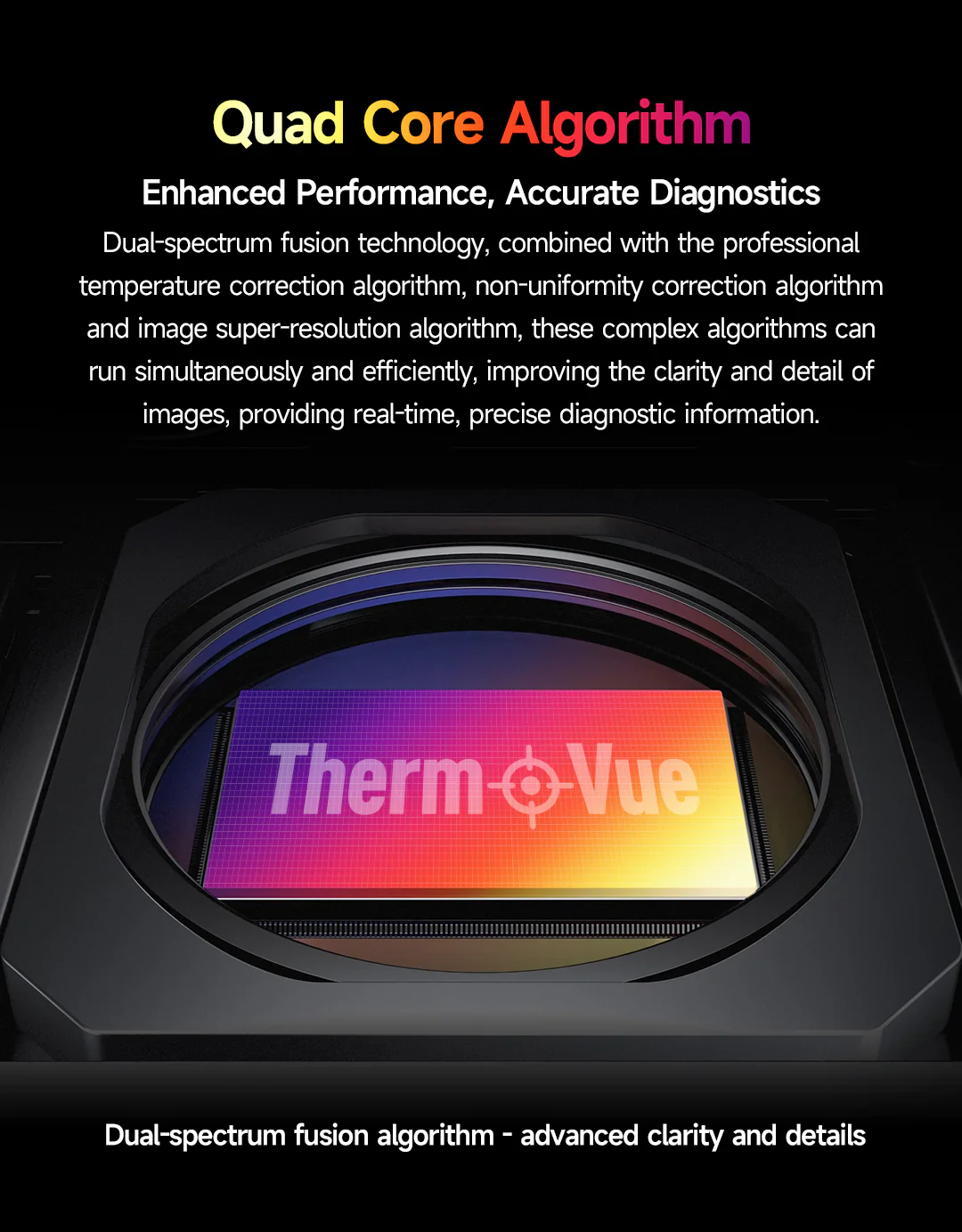

Integrated ThermoVue Thermal Imaging
Thermal Resolution: 160×120
Refresh Rate: 25Hz
Pixel Pitch: 12μm
Sensitivity: <50mk
Measurable Temperature Range: -10°C to 550°C
Accuracy: ±3°C
Visualizes heat that is invisible to the naked eye, highlighting temperature contrasts.

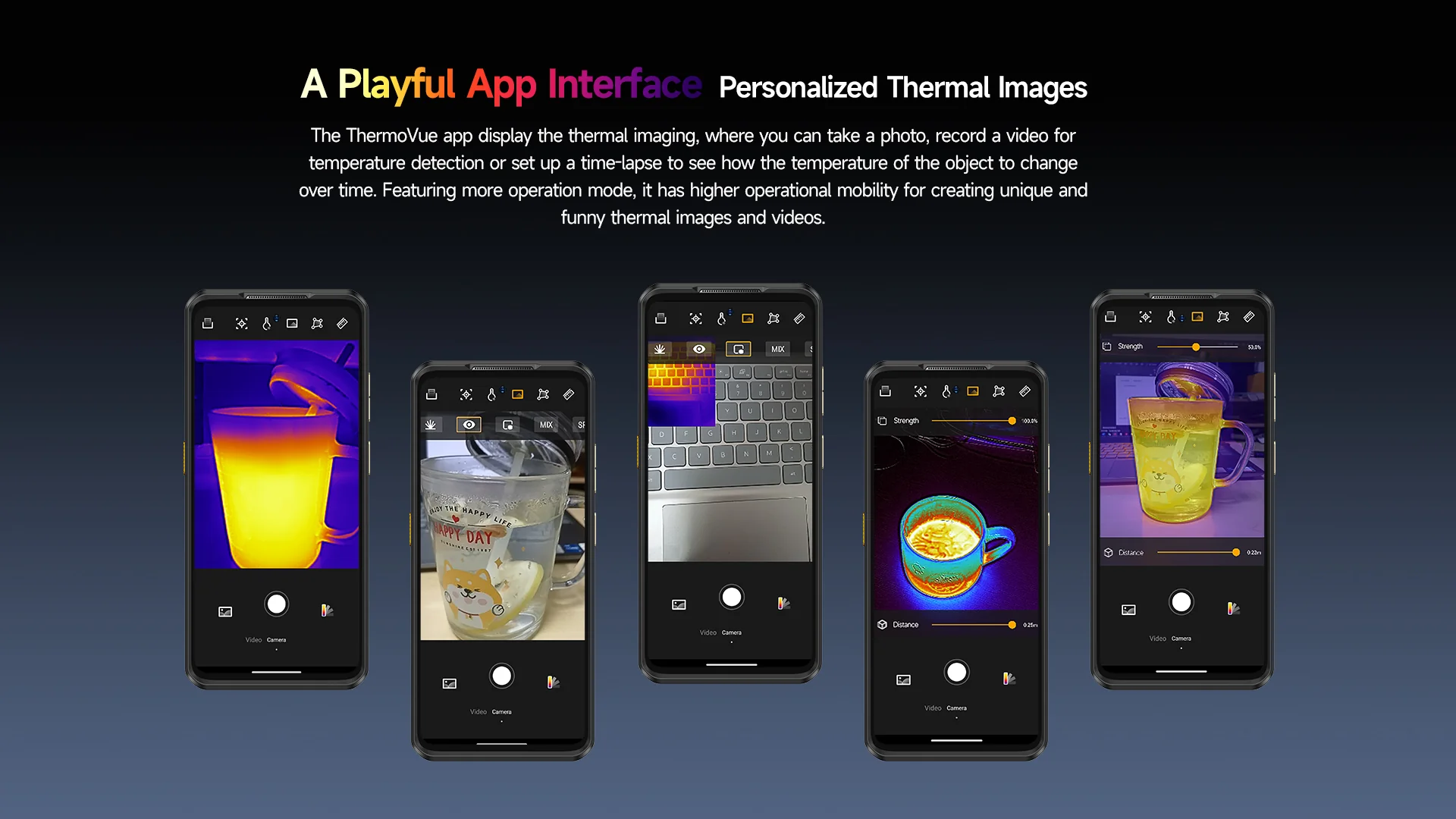

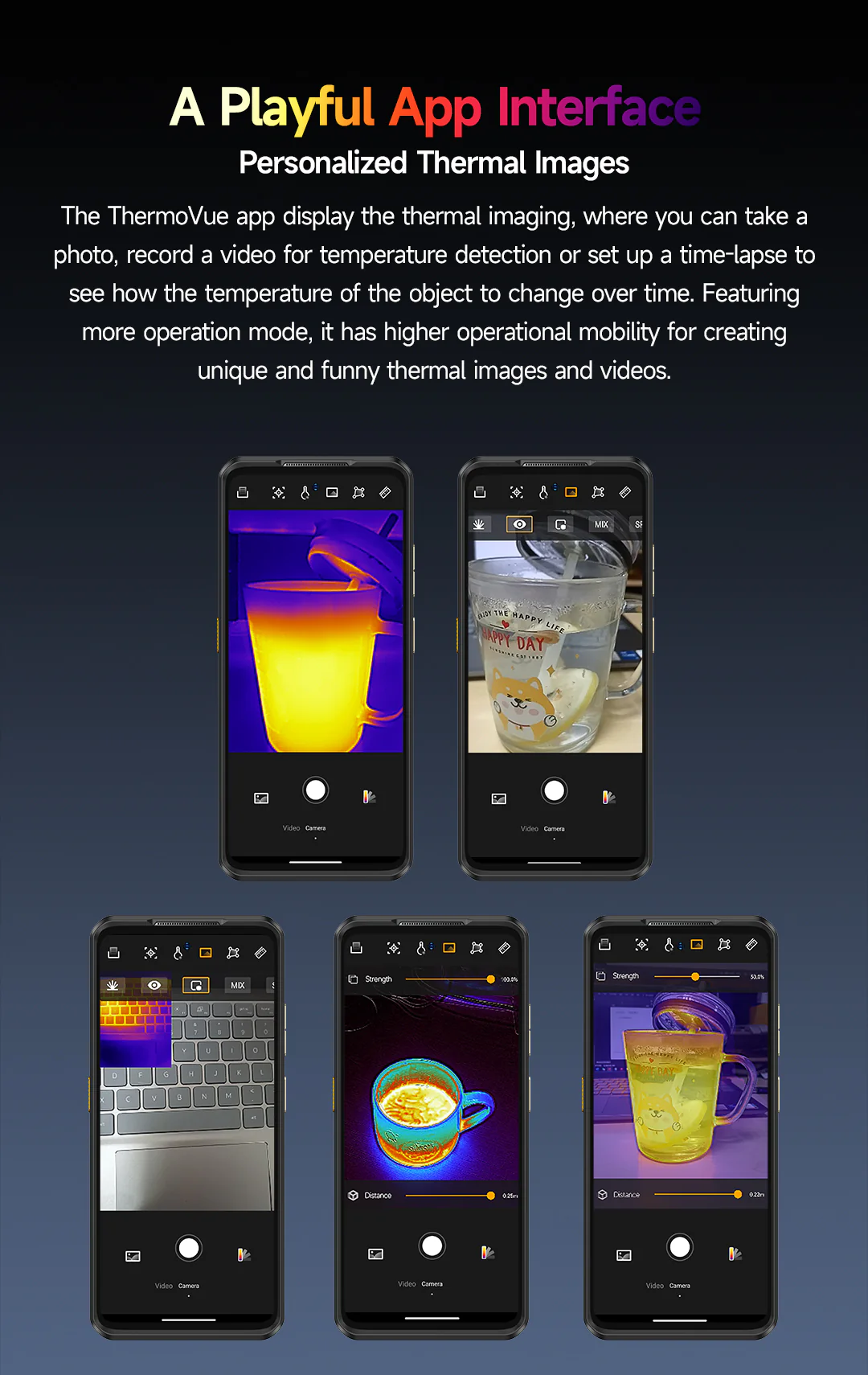

Pre-install ThermoVue App

*ThermoVue App support and maintenance provided by ThermoVue Co., Ltd, which should be used in Armor 25T Pro.

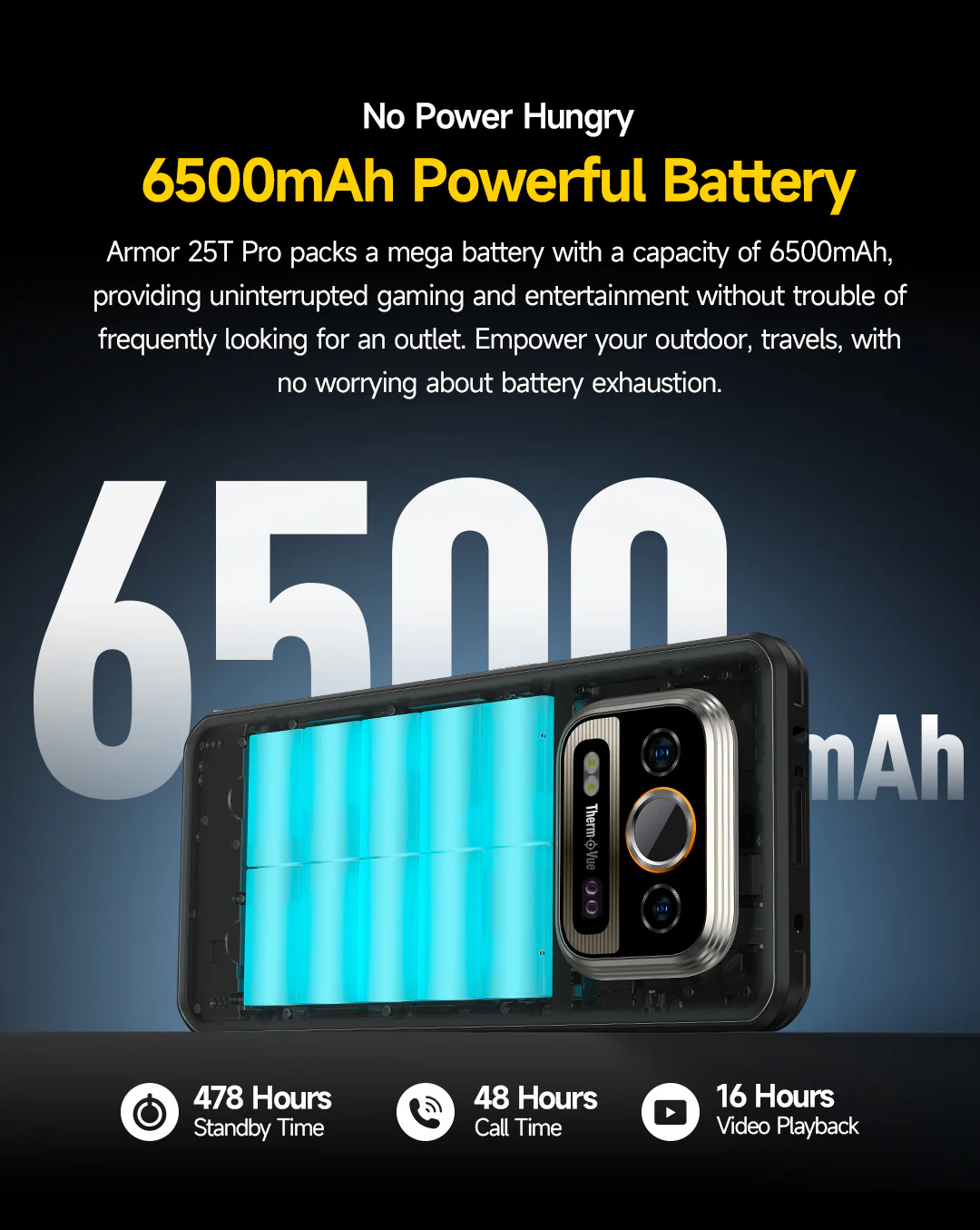

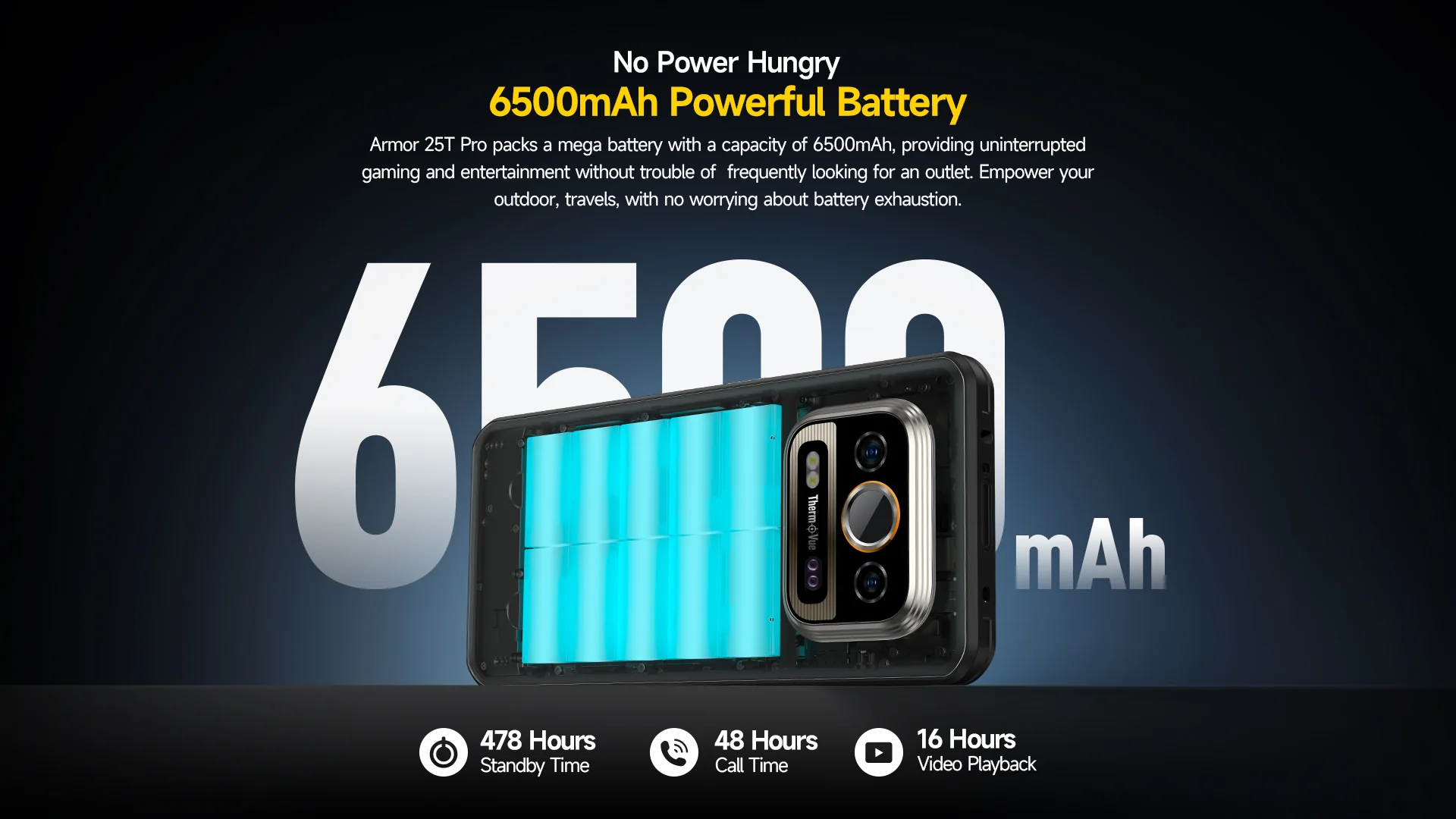

Charging and battery
6500mAh Battery
Built-in lithium-ion polymer battery
USB Type-C port
Supports 33W fast charging

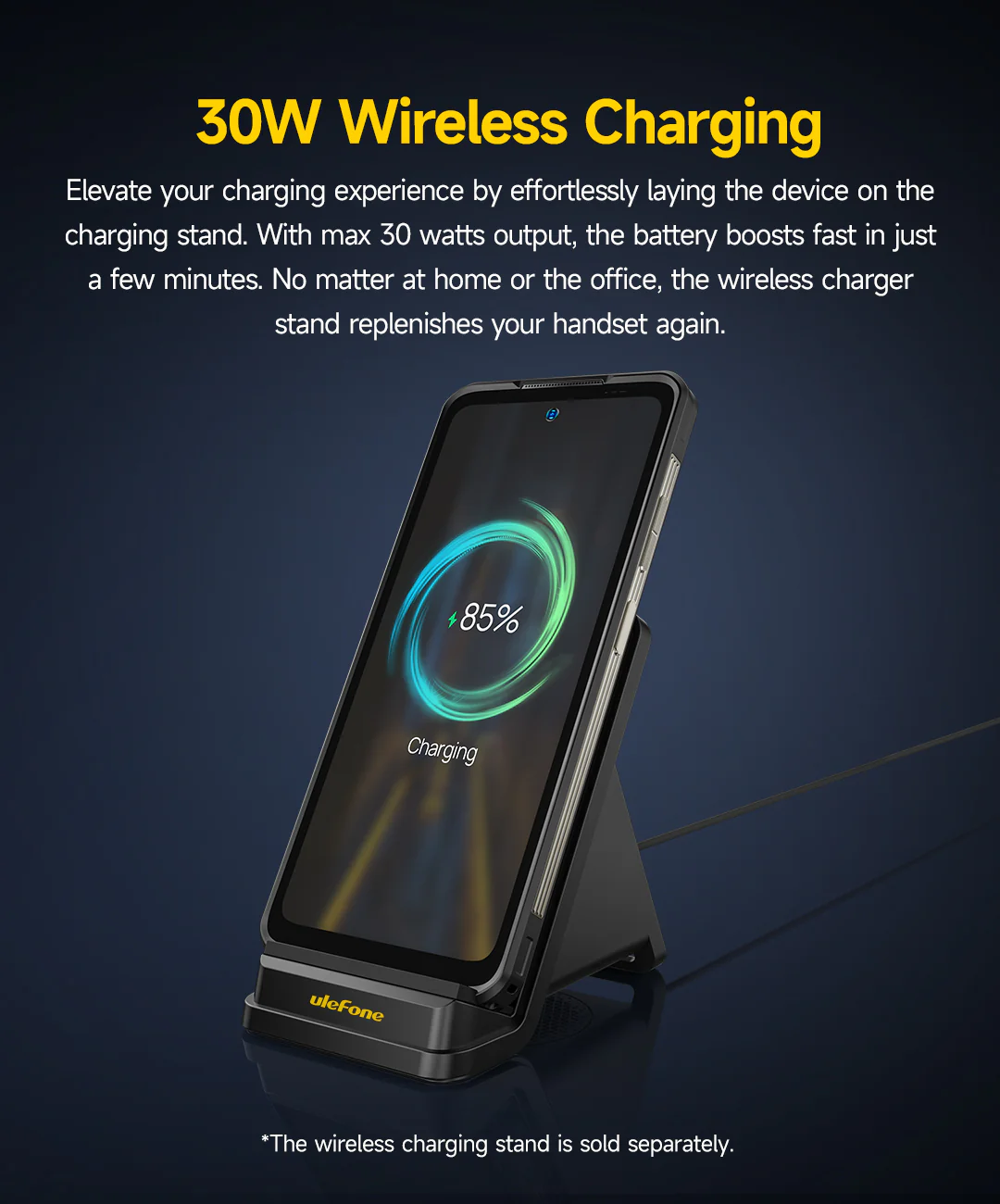

Supports 30W wireless charging

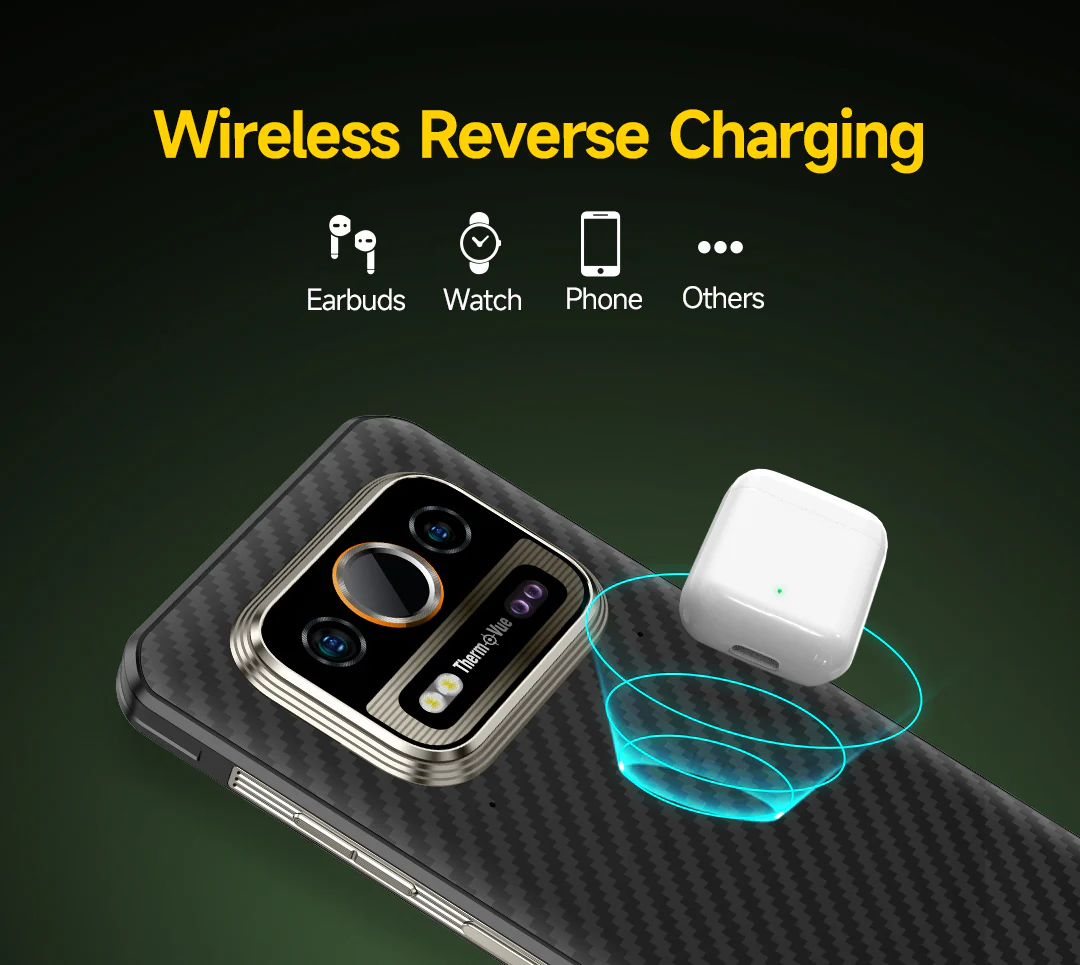

Supports wireless reverse charging
Battery Life
Standby Time Up to 487 Hours
Talk Time Up to 48 Hours

*Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual product may be slightly above or below the nominal battery capacity.
*Non-removable battery. Removing the battery may cause damage to the device.
*Use with original charger and data cable, the max charging power can reach 33W. The actual charging power will intelligently change with different scenarios, please refer to the actual use.
*Under the Ulefone private protocol, the max wireless charging power is 30W, also compatible with Qi protocol with max 15W wireless charging. The actual charging power will intelligently change with different scenarios, please refer to the actual use.

Rugged
Splash, Water and Dust Resistant
Rated IP68 (maximum depth of 2.0 metres up to 30 minutes) under IEC standard 60529
Rated IP69K under IEC standard 60529
MIL-STD-810H Certification

*Armor 25T Pro is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 2.0 meters up to 30 minutes).
*Charger and accessories are not water-resistant.
*Splash, water and dust resistance are not permanent and might decrease as a result of normal wear.
*Do not attempt to charge a wet Armor 25T Pro.
*Liquid damage not covered under warranty.

Processor
MediaTek Dimensity 6300 with 5G
CPU: MediaTek MT6835T
CPU architecture: 2*Cortex-A76+6*Cortex-A55, 6nm process
CPU frequency: Octa Core, up to 2.4GHz
GPU: Arm Mali-G57 MC2

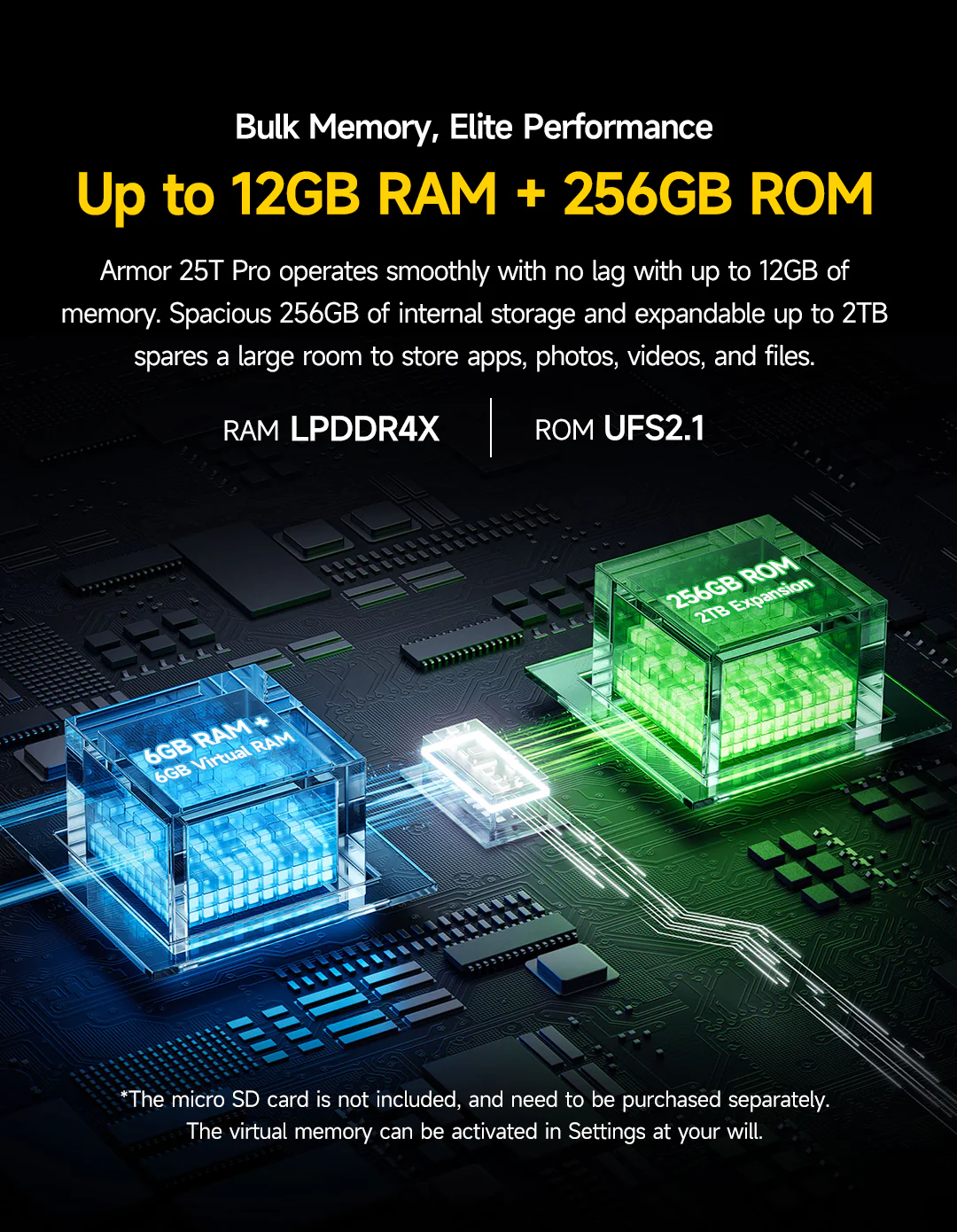

Storage and RAM
6GB+256GB
RAM: 6GB large memory, LPDDR4X
Flash storage: 256GB phone storage, UFS 2.2
microSD memory card Up to 2TB

*Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device.
*The Virtual Memory Expansion can be activated in Settings and adds up to 6GB of RAM. Some software may not be compatible with this feature.
*microSD card needs to be purchased separately. Recommended to use Class 10 memory cards, other memory cards are not guaranteed to be fully compatible.

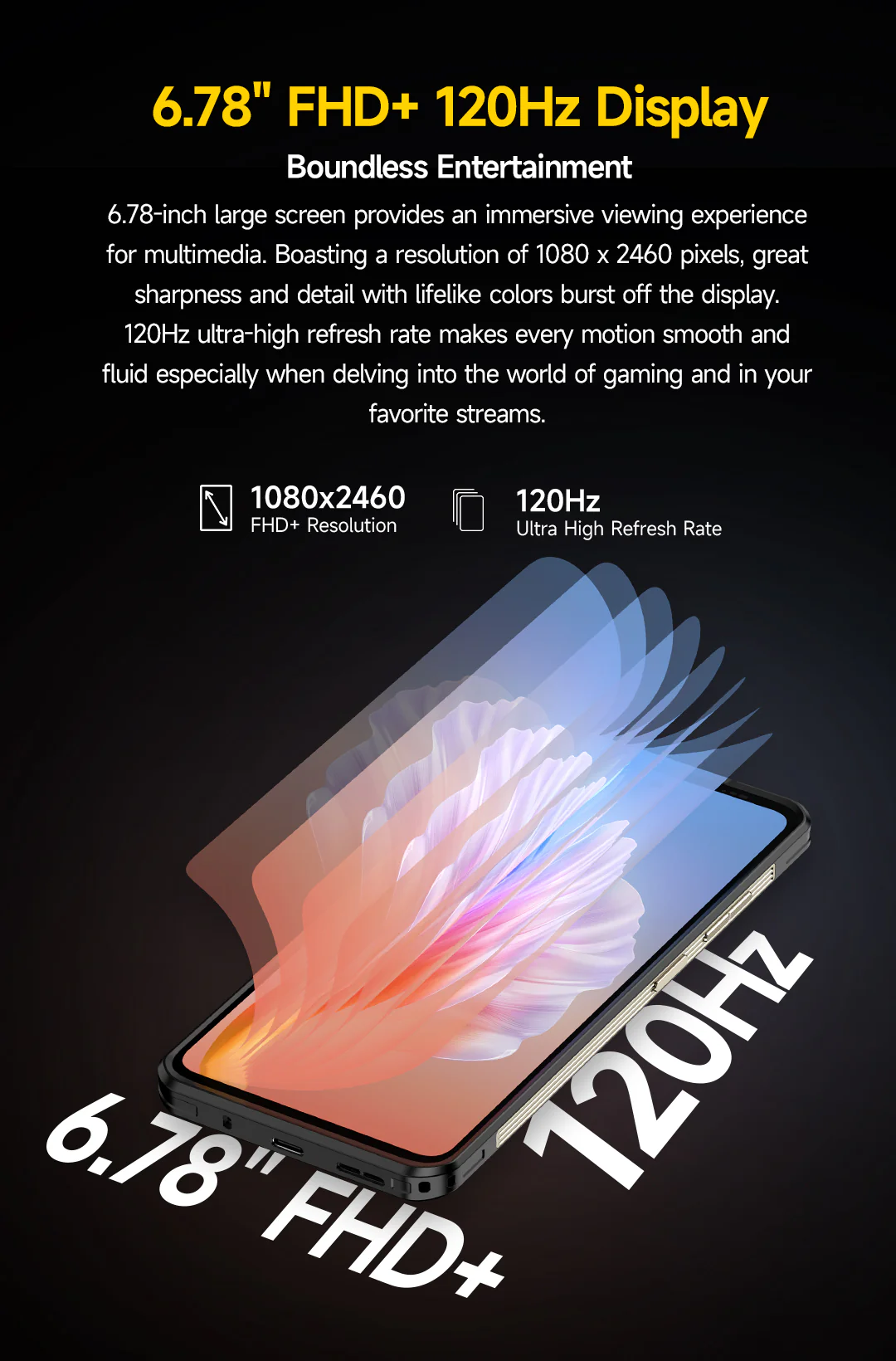

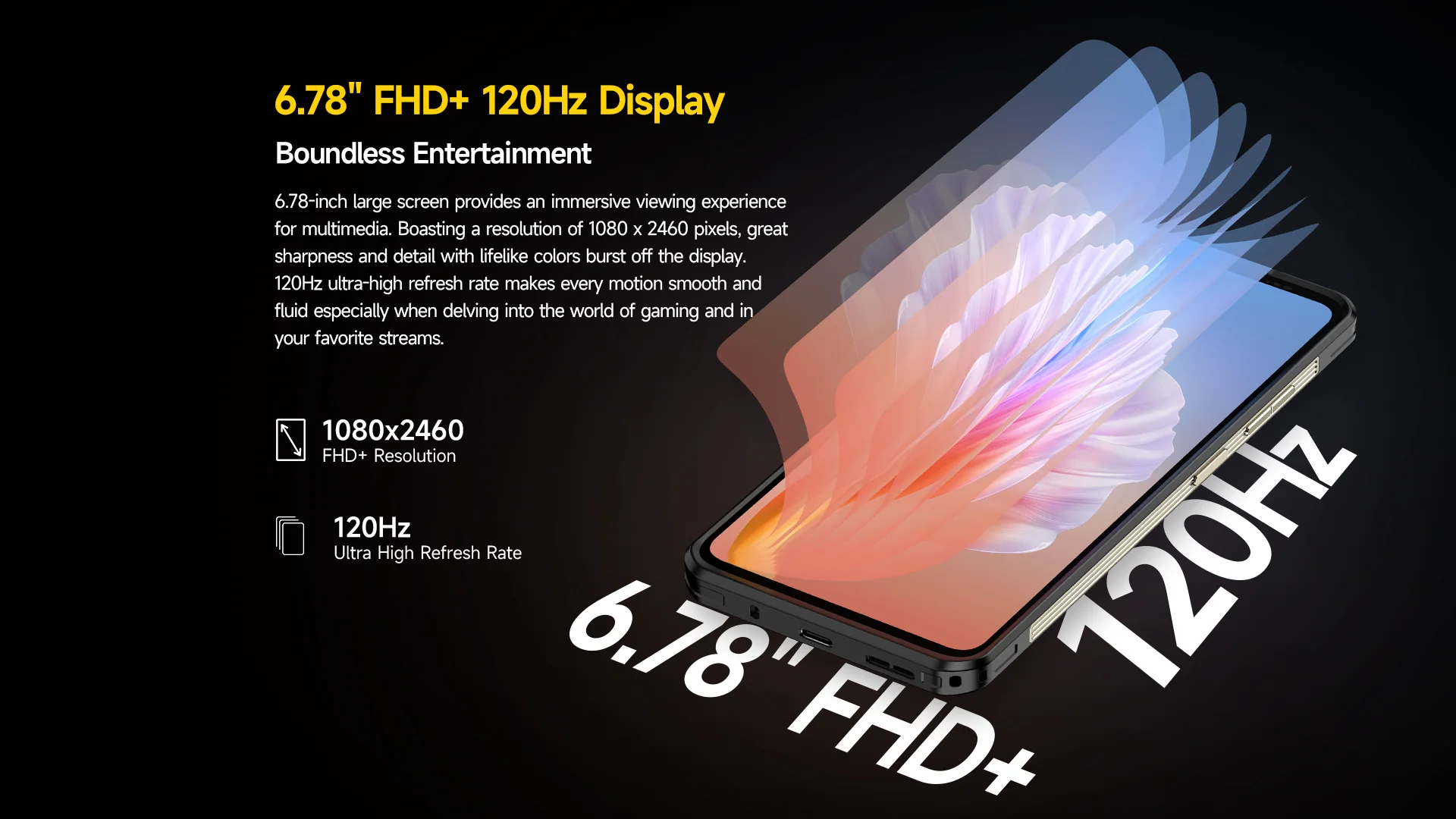

Display
6.78‑inch (diagonal)
Punch-hole Display
All-screen LCD Multi-Touch display with IPS technology
20.5:9, 1080 x 2460 FHD+
396 ppi
Refresh rate: 120 Hz
Touch sampling rate: 240Hz
Corning® Gorilla® Glass Victus®
Fingerprint-resistant oleophobic coating

*With a rounded corners design on the display, the diagonal length of the screen is 6.78 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller).
*The resolution measured as a standard rectangle, with a rounded corners design, the effective pixels are slightly less.

Rear Camera
50MP+64MP Dual Camera

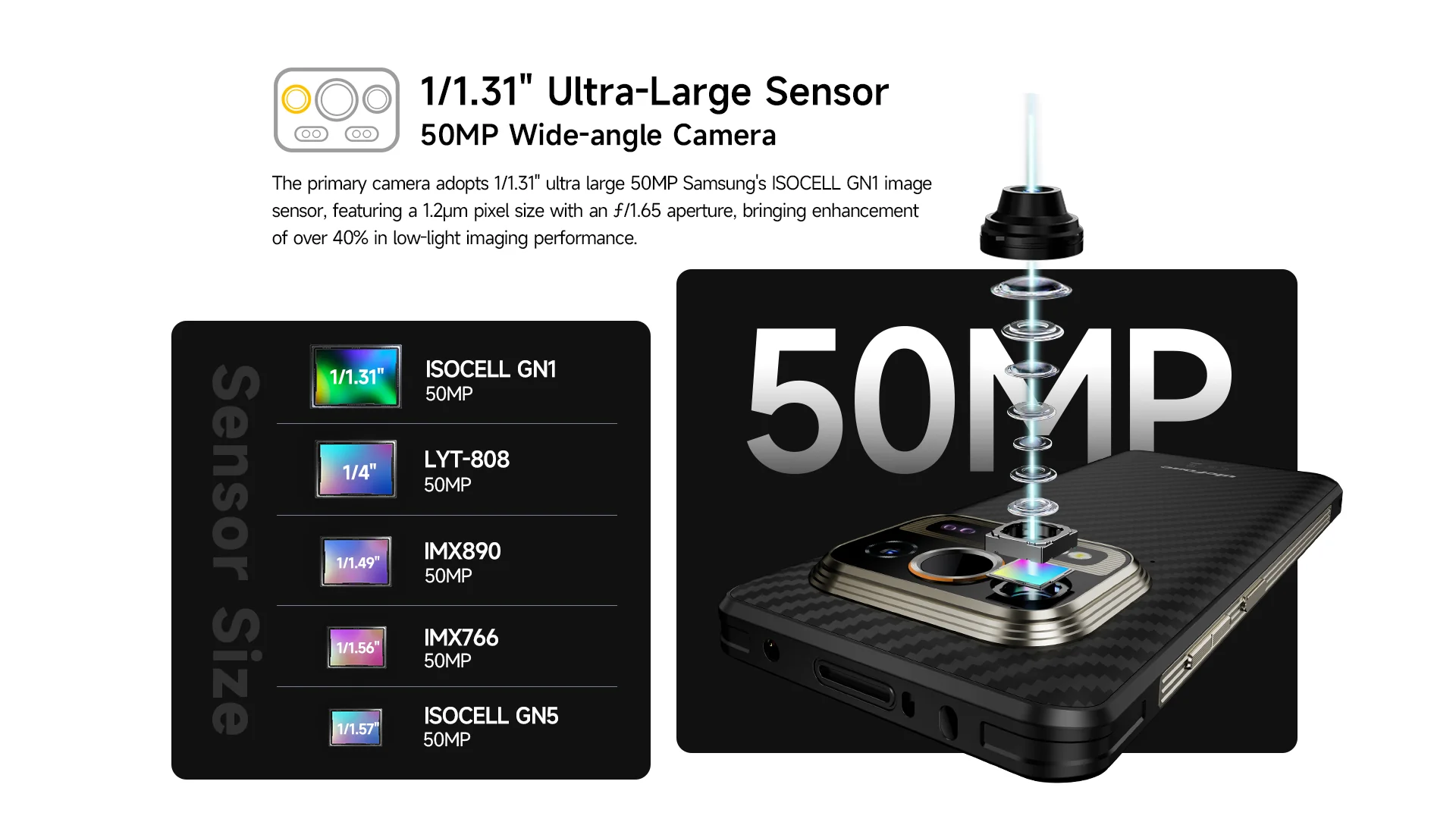

50MP Main Camera, 1/1.31” Ultra-large Lens
Samsung S5KGN1 CMOS sensor, 1.2μm, 7 piece lens, FOV 85°, ƒ/1.95 large aperture, EIS
64MP Night Vision Camera
OV64B1B CMOS sensor, ƒ/1.79 large aperture
Photo resolution: up to 6912×9216 pixels
Video resolution: up to 2K
Dual LED Flash

Rear camera photography features
Normal mode, Night Vision Mode, Film Mode, 64MP Mode, Night Mode, Gif, Portrait, Pro Mode, Panorama, Slow Motion, Time Lapse, Intelligent Scanning
Location info, Brand watermark, Camera mute, Touch shooting, Self timer, Grid line, Volume key feature, Anti flicker, Long Press

Rear camera video features
2K recording 30fps
1080P recording 30fps
720P recording 30fps
480P recording 30fps

*The actual photo and video resolution may vary depending on the shooting mode.
*The camera software functions are subject to actual presence, some functions and names may vary depending on the software version.

Front Camera
32MP selfie camera
Samsung GD1 Sensor, 0.8µm, 5 piece lens, FOV 80.4°, ƒ/2.45 large aperture
Front camera photography features
Normal mode, Film, Gif, Portrait
Location info, Brand watermark, Mirror, Camera mute, Touch shooting, Self timer, Grid line, Volume key feature, Anti flicker

Front camera video features
1080P recording 30fps
720P recording 30fps
480P recording 30fps

*The camera software functions are subject to actual presence, some functions and names may vary depending on the software version.

Underwater Photography
Supports to take photos & video recording
Supports to start/end operation underwater
Supports to quickly switch shooting modes underwater

Unlock Options
Supports Fingerprint Unlock
Side-Mounted Fingerprint, Integrate power key and fingerprint sensor together
Capacitive Touch Sensor
Response speed: Up to 0.1s
Supports the enrollment of 5 sets of fingerprint
Supports Face Unlock

Network
Supports use of dual SIM cards from different carriers
Both cards can access 5G connectivity
Both cards can access 4G connectivity simultaneously
Dual Nano SIM; either card can be set as the primary card
Supports 5G/4G/3G/2G
Supports VoLTE HD calling
Supported network bands
5G Network
NR Sub6: N1/3/5/8/20/28/38/41/71/77/78/79
4G Network
LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66
LTE-TDD: B34/38/39/40/41
3G Network
WCDMA: B1/2/4/5/6/8/19
2G Network
GSM: B2/3/5/8
CDMA: BC0/BC1/BC10

*The support for 5G depends on the local carriers’ network; Dual 5G/4G requires the support of local carriers services, and may not be available in all regions.
*Only supports single SIM for communication service, which means when one of the SIM cards is in calling, the other SIM card will not be able to connect.
*Only certain regions and telecom operators support VoNR.
*Only certain regions and telecom operators support VoLTE.
*Single VoNR only, you can select one SIM to enable VoNR, in the meanwhile, VoLTE is enabled by default on the other SIM. You also can choose to turn off VoNR or VoLTE.
Supports the following carriers’ 5G networks
Europe
Austria 3, A1 Telekom, Magenta Telekom
Andorra STA (Andorra Telecom)
Belgium BASE，Orange，Proximus
Bulgaria Vivacom
Croatia Hrvatski Telekom, Telemach Croatia, A1 Mobile
Czech Republic O2, Vodafone,T-Mobile
Denmark TDC
Estonia Elisa, Telia Eesti, Tele2
Finland DNA, Elisa, Telia
France Bouygues Télécom, Orange, SFR, Free
Germany O2, Deutsche Telekom, Vodafone, 1&1
Greece Cosmote, Vodafone, Wind
Hungary Telekom, Vodafone,Yettel
Ireland Eir, Vodafone, 3
Italy TIM, Vodafone, Wind Tre, Iliad, Fastweb
Latvia Tele2, Bite, LMT
Luxembourg POST, Tango, Orange
Monaco Monaco Telecom
Netherlands Vodafone, KPN, Odido, T-Mobile
Norway Telenor, Telia, Ice
Poland Aero2, Orange, Play P4, T-Mobile, Plus+
Romania Orange, Vodafone, Digi.Mobil, Telekom
San Marino TMS
Slovakia O2, Slovak Telekom, SWAN 4KA
Slovenia Telekom Slovenije, Telemach
Spain Movistar, Orange, Vodafone, Yoigo
Sweden Tele2, Telenor, 3, Telia
Switzerland Salt Mobile, Sunrise, Swisscom
United Kingdom EE, O2, Vodafone, 3, Virgin Mobile
Russia MegaFon, MTS, Tele2
Portugal MEO, NOS, Vodafone, Nowo
Macedonia Telekom, VIP
Lithuania Telia, Bite, Tele2
Malta Go, Epic, Melita
North America
Canada Rogers Wireless, Bell Mobility, Telus, Videotron,
Koodo, Public Mobile, Freedom Mobile,
Virgin Plus Mobile
United States Sprint, T-Mobile, C spire, AT&T, Google Fi,
U.S. Cellular, Verizon Wireless,
Cricket Wireless, GCI Wireless
South America
Brazil Vivo, TIM,Claro, Unifique, Algar, Brisanet
Chile Entel, Movistar, WOM, Claro
Peru Claro, Entel, Movistar
Trinidad and Tobago Bmobile
Dominican Republic Claro, Altice
Guatemala Claro, Tigo
Argentina Claro, Movistar, Personal
Colombia Claro, Movistar, TigoUNE, ETB, WOM
Guyana Digicel, Cellink Plus, E-Network
Uruguay Claro, Movistar, Antel
Mexico Telcell, AT&T, Movistar, Altan Redes
Asia
Bahrain stc Bahrain, Zain, Batelco
Brunei Darussalam Progresif, DSTCom
Cyprus Cyta, Epic MTN
Hong Kong, China 3, China Mobile, CSL, SmarTone
Iran Hamrahe Aval, MTN Irancell
Israel Cellcom, Golan Telecom, Hot Mobile, Partner,
We4G, 019 Mobile, Pelephone, Rami Levy
Indonesia Indosat, Telkomsel，XL Axiata
India Airtel, BSNL, MTNL, Vi, Jio
Japan KDDI au, NTT Docomo, Softbank, Rakuten Movile
Jordan Umniah, Orange, Zain
Korea SK Telecom, LG U+, KT
Kuwait Ooredoo, STC, Zain
Kazakhstan Altel, Tele2, Kcell
Maldives Dhiraagu
Malaysia Telekom Malaysia, Celcom, Digi, Maxis, U Mobile, Yes
Macao, China CTM, China Telecom
Singapore M1, Singtel, StarHub, SIMBA
Sri Lanka Airtel, Dialog
Oman Omantel, Ooredoo, Vodafone
Philippines Globe, Smart, Dito
Qatar Ooredoo, Vodafone
Saudi Arabia Mobily, STC, Zain
Tajikistan Tcell
Thailand AIS, TrueMove H
Taiwan, China Chunghwa Telecom, FarEasTone, Taiwan Mobile, GT, Taiwan Star
Uzbekistan Uztelecom, Ucell, Mobiuz
United Arab Emirates du, Etisalat
Oceania
Australia Vodafone, Telstra, Optus
New Zealand 2degrees, Spark, Vodafone
Africa
Egypt Etisalat, Orange, Vodafone
Gabon Airtel, Gabon Telecom
Kenya Safaricom
Lesotho Vodafone
South Africa MTN Group, Vodacom, Rain
Nigeria Airtel, MTN
Mauritius Emtel, Orange
Réunion Orange, SRR (SFR), Telco OI

*This list will be continuously updated, if you have any questions, please consult the dealer.
*Last updated on April 26, 2024.
*Info collected from Kimovil.com.

Connectivity
WLAN
Supports protocols: 802.11 a/b/g/n/ac
Supports 2.4G/5G

Bluetooth
Supports Bluetooth 5.2

Navigation and positioning
Supports multiple positioning systems
GPS
GLONASS
Galileo
BEIDOU
QZSS
Supports Digital Compass

NFC
Supports Google Pay
Supports Transit, Loyalty Cards, Gift Cards and Plane tickets

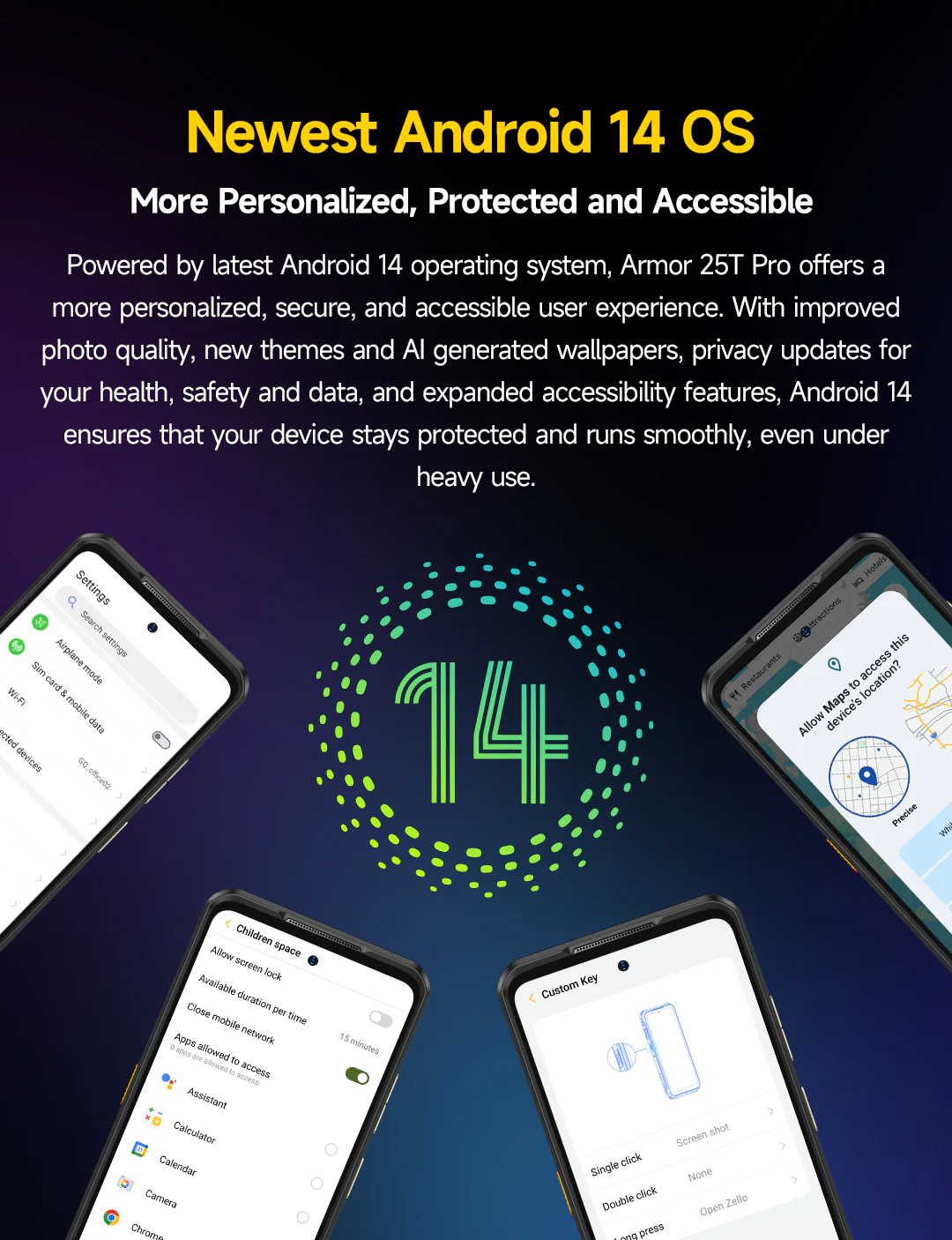

Operating System

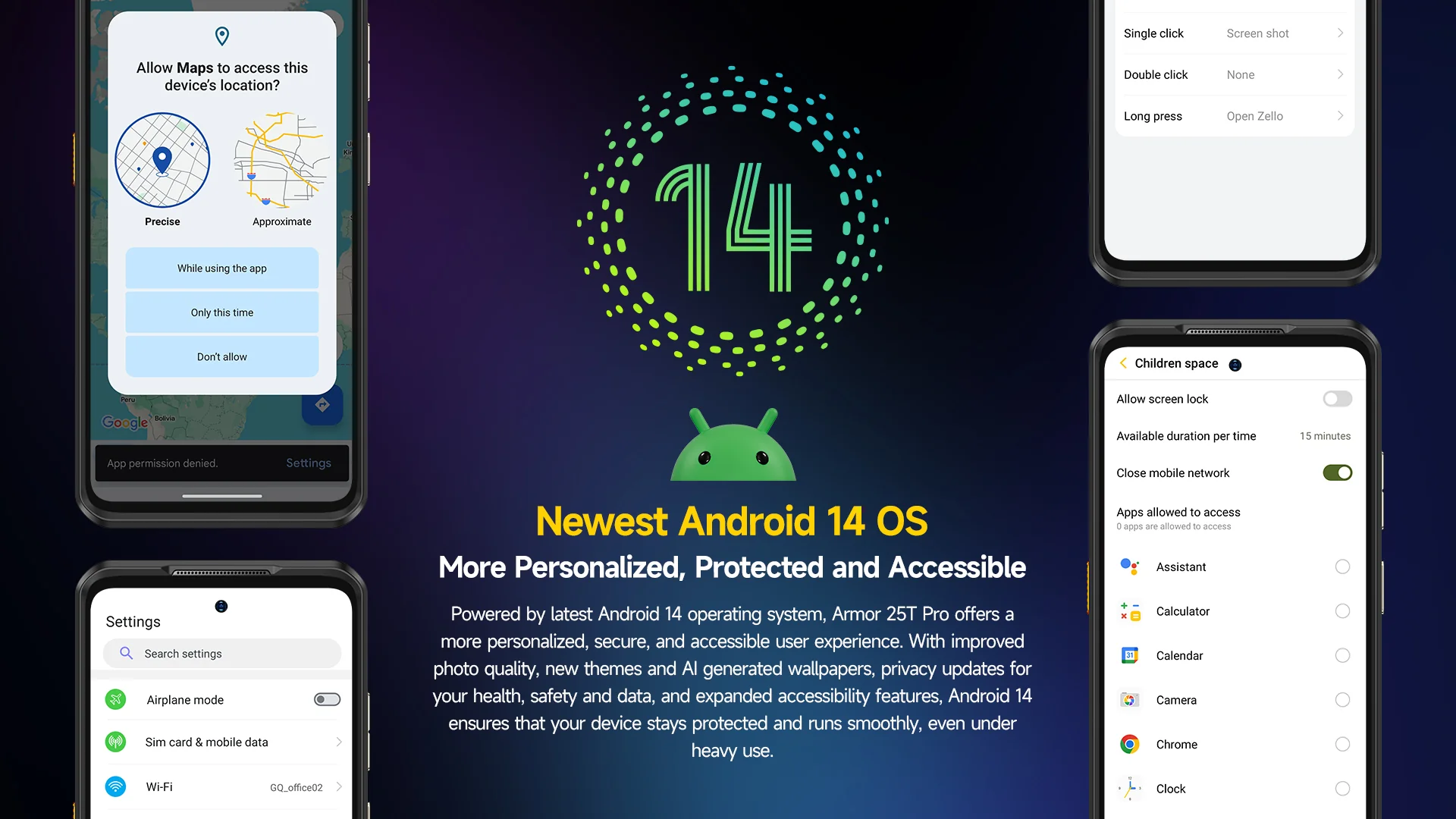

Android 14
Pure Android System
No ads

Sensors
Thermal Imaging sensor, Infrared sensor, NFC, Proximity sensor, Light sensor, Gravity sensor, Acceleration sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer, Air pressure sensor

Multimedia
Video MOV/MKV/3GP/MP4
Audio MID/FLAC/MKA/MP3/M4A/AAC/AMR/OGG/MP2
Image GIF/JPEG/PNG/BMP
Ebook TXT/HTML

Ports
Type-C, USB 2.0

Card slot
Three(3), Nano SIM + Nano SIM + microSD

Notification Light
Support, tri-color light, red/green/blue
Supports charging prompt

Language support
Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese

In the box
Armor 25T Pro
AC power charger (100~240V)
Type-C to Type-C Data cable (100cm)
Protective Film(Pre-installed)
Tempered Glass Screen Protector
SIM Needle
Lanyard
Multi-language User Manual
Thermal Imaging User Manual Access Guide
Multi Function Instruction Card
Thermal Imaging Camera User Manual
Charging Instruction card
Safety Prompt card
Accesories Ecosystem Brochure
Service Center Instructions
Warranty card
