Armor Pad 5 Ultra
Original price was: £660.00.£573.00Current price is: £573.00.
5G Al SoC Dimensity 7400X | 200LM Projector | 64MP Night Vision | 24200mAh Mega Battery | 120W Flash Charging | Up to 32GB+512GB | 11“ FHD+ Screen | Android 15 | IP68/IP69K MIL-STD-810H
In stock
In stock
Accessories
- 2 working day delivery from our UK warehouse
- Authorised Ulefone reseller – 100% genuine
- 30-day returns
- Secure payment
Ulefone Armor Pad 5 Ultra: 5G Rugged Tablet with Built-in 200-Lumen Projector
The Ulefone Armor Pad 5 Ultra is an 11" 5G rugged tablet with a built-in 200-lumen projector, a 24200mAh battery with 120W charging, a 1000-lumen LED light and a 64MP night vision camera. It runs on the MediaTek Dimensity 7400X with 12GB RAM and 512GB storage and is protected to IP68/IP69K and MIL-STD-810H.
Who the Armor Pad 5 Ultra Is For
The Armor Pad 5 Ultra is for teams who need to show plans, training and video wherever they are: engineers and site teams, trainers, emergency services, and campers who want an outdoor cinema.
- Engineers and site teams
- Trainers and presenters
- Emergency services
- Logistics and fleet
- Farmers and agriculture
- Campers and overlanders
Key Features
- 200-Lumen ProjectorAutofocus projector with ±40° keystone correction, 960 x 540 resolution and images from 40" to 80".
- 24200mAh Battery, 120W ChargingUp to 1662 hours standby and 109 hours talk time, with 120W charging and 10W reverse charging.
- 11" FHD+ 90Hz Display1920 x 1200 screen with 600-nit peak brightness.
- 5G Dimensity 7400X4nm processor with 12GB LPDDR5 RAM (+ up to 20GB virtual) and 512GB UFS 3.1 storage.
- 1000-Lumen LED Light754-LED work light plus a red/blue warning light with siren sounds.
- Built RuggedIP68 (2m), IP69K and MIL-STD-810H, 64MP night vision, Wi-Fi 6E and uSmart 2.0.
Armor Pad 5 Ultra at a Glance
| Projector | 200 lumens, 960 x 540, autofocus, 40"–80" image |
|---|---|
| Display | 11" FHD+ 1920 x 1200, 90Hz, 600 nits |
| Processor | MediaTek Dimensity 7400X (4nm), 2.6GHz |
| Memory | 12GB LPDDR5 + up to 20GB virtual, 512GB UFS 3.1, microSD up to 2TB |
| Cameras | 64MP main (Sony IMX682) + 64MP night vision, 4K video; 32MP front |
| Battery | 24200mAh, 120W charging, 10W reverse charging |
| Light | 1000-lumen LED light, red/blue warning light |
| Durability | IP68, IP69K, MIL-STD-810H |
| Software | Android 15 |
| Connectivity | 5G dual SIM, NFC, Wi-Fi 6E, Bluetooth 5.4, uSmart 2.0, 3.5mm jack |
| Size and weight | 269.7 x 179.5 x 27.8mm, 1600g |
Armor Pad 5 Ultra vs Armor Pad 5 Pro
The Ultra is the same tablet with a built-in projector.
| Armor Pad 5 Ultra | Armor Pad 5 Pro | |
|---|---|---|
| Projector | 200 lumens, 40"–80" | No |
| Processor | Dimensity 7400X | Dimensity 7400X |
| Battery | 24200mAh, 120W | 24200mAh, 120W |
| Display | 11" FHD+ 90Hz | 11" FHD+ 90Hz |
| LED light | 1000 lumens | 1000 lumens |
Choose the Armor Pad 5 Ultra to project plans and videos anywhere; choose the Armor Pad 5 Pro if you don't need a projector.
What’s in the Box
- Ulefone Armor Pad 5 Ultra
- 120W UK charger
- USB-C to USB-C cable (1m)

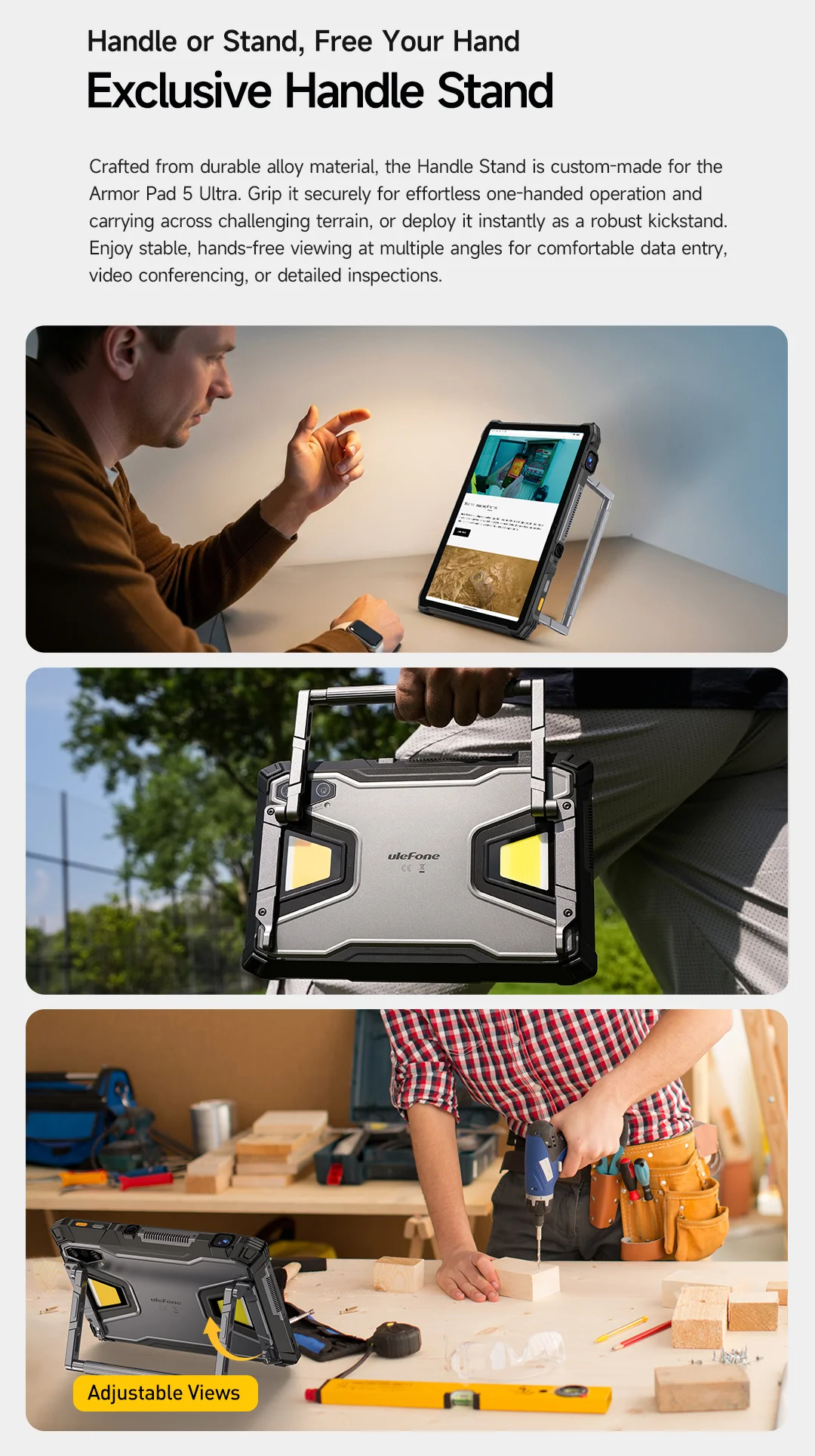

- Handle stand
- Pre-installed protective film
- Screwdriver and screws
- Warranty card
Frequently Asked Questions
Does the Armor Pad 5 Ultra work on EE, O2, Vodafone and Three?
Yes. The Armor Pad 5 Ultra supports the 4G bands used by all the main networks in the UK (bands 3, 7, 8, 20 and 28) with VoLTE HD calling. It also supports 5G.
Does the Armor Pad 5 Ultra support Google Pay?
Yes. It has NFC, so you can pay with Google Pay and use contactless transit, loyalty and gift cards.
Is the Armor Pad 5 Ultra waterproof?
It is rated IP68 (up to 2 metres for 30 minutes) and IP69K and is drop-resistant to 1.5 metres. Make sure it is dry before charging. Liquid damage is not covered by the warranty.
How long does the battery last?
The 24200mAh battery is rated for up to 1662 hours on standby and 109 hours of talk time, and the 120W charger refills it quickly. It can also charge other devices at 10W.
What warranty and delivery do I get?
Every Armor Pad 5 Ultra bought from us comes with a 2-year warranty and 30-day returns, with delivery in 2 working days across the UK.
Which accessories fit the Armor Pad 5 Ultra?
Compatible accessories include the uSmart E03 endoscope, uSmart E02 endoscope and uSmart C01 microscope.
Full technical details are in the Specifications tab.
Specifications
Ulefone Armor Pad 5 Ultra – Specifications
Physical Characteristics
- Color: Black
- Material: PC + Aluminium
- USB: Type-C, USB 2.0
- Headphone Jack: 3.5mm
- Expansion Connector: uSmart 2.0 (supports accessories & simultaneous charging)
- Card Slots: 1× Nano-SIM + 1× Nano-SIM + 1× microSD
- Keys: Power (Fingerprint), Volume, Projector Control, Custom Key
Size & Weight
- Product Size: 269.7 × 179.5 × 27.8 mm
- Weight: 1600 g
- Package Size: 205 × 297.8 × 81 mm

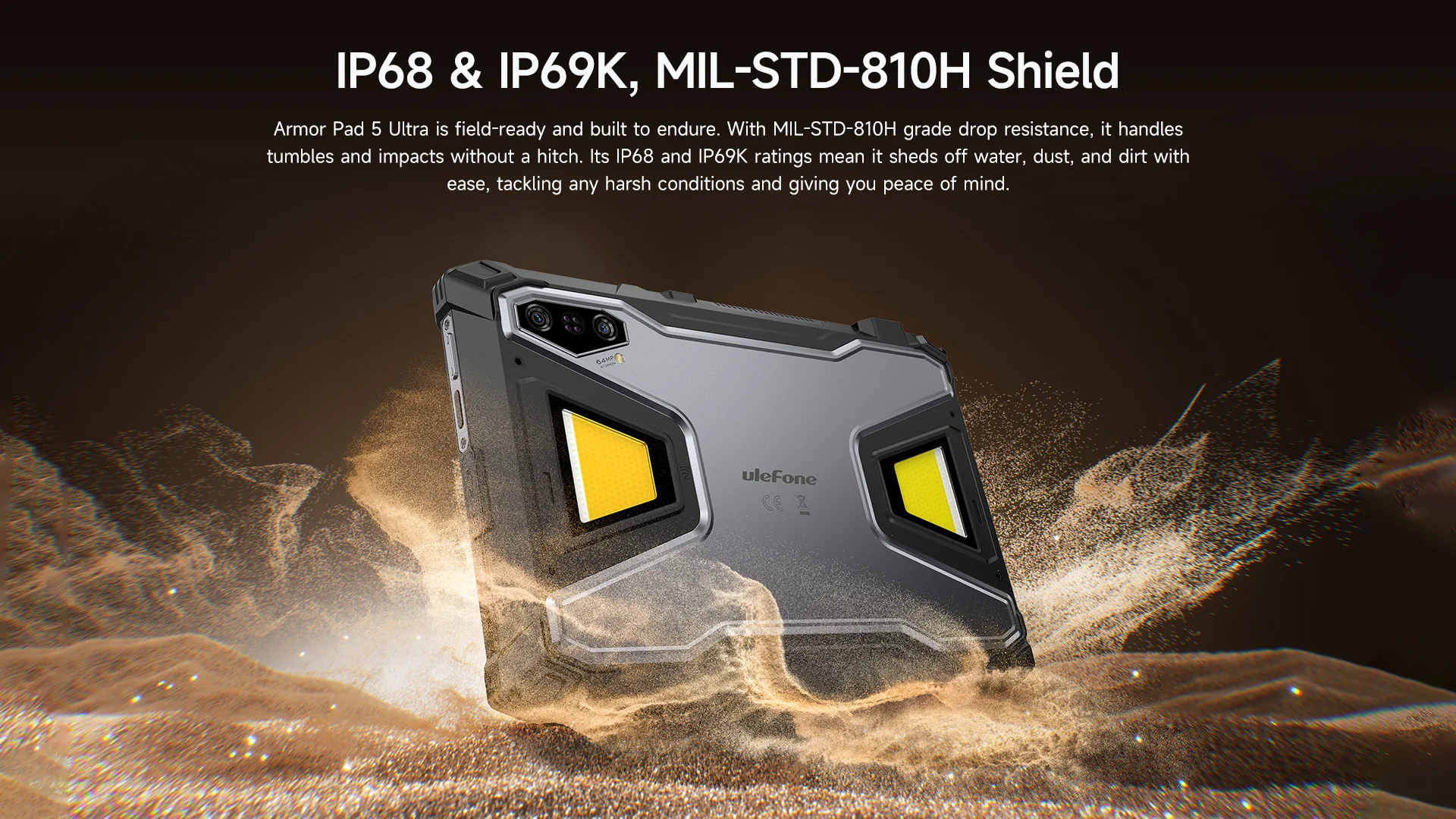

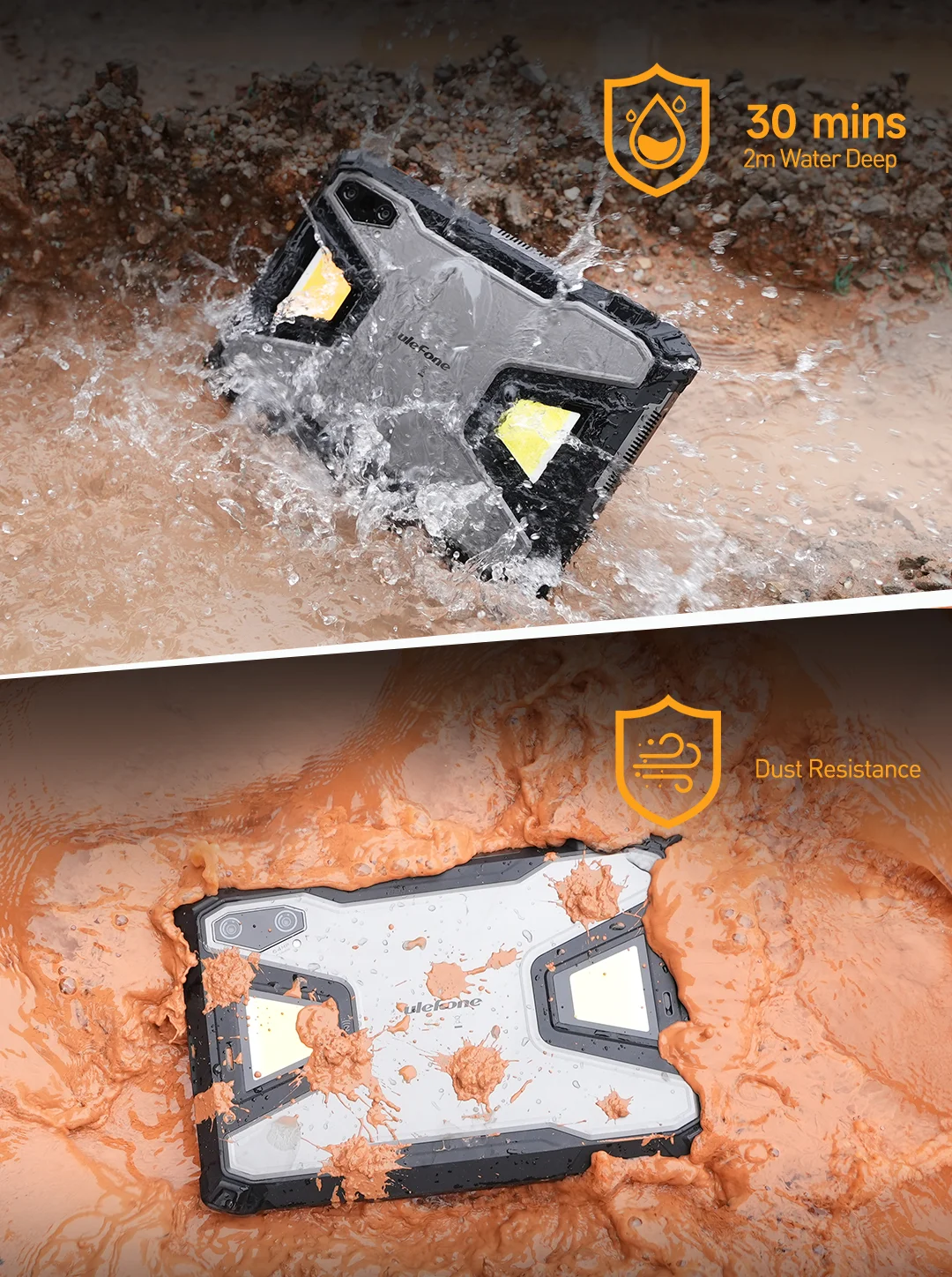

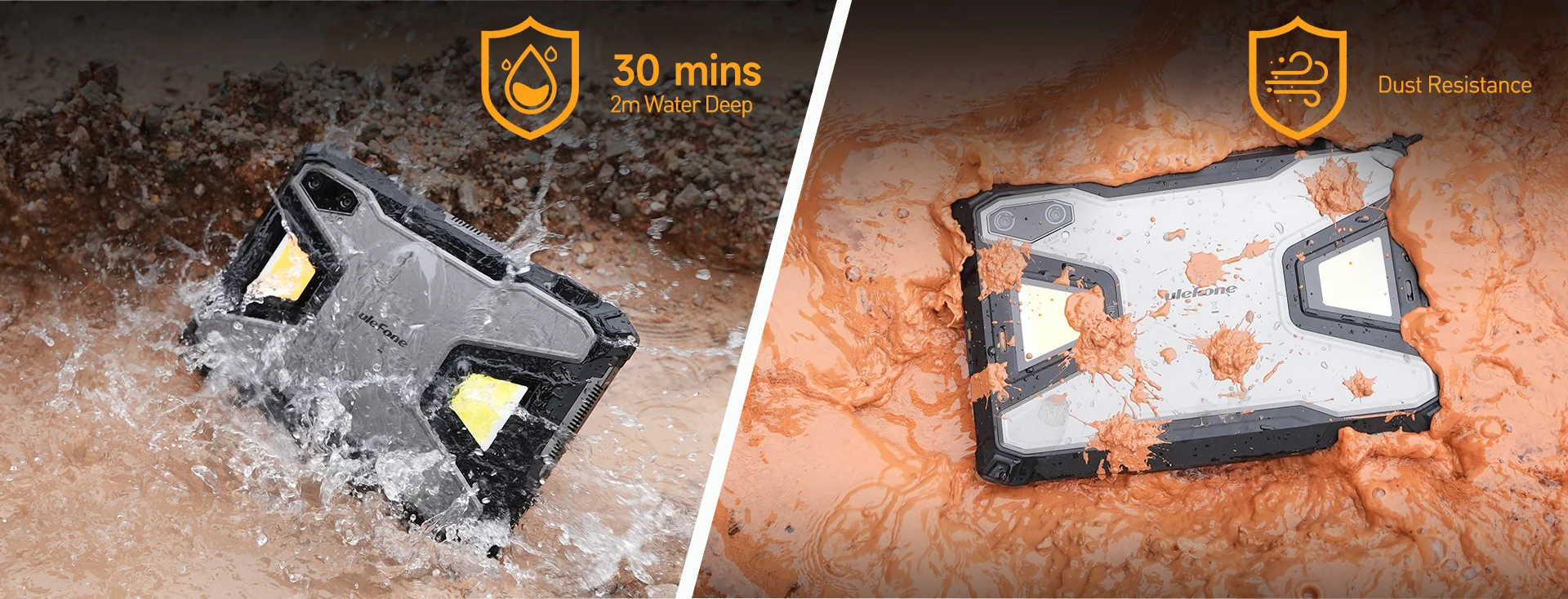

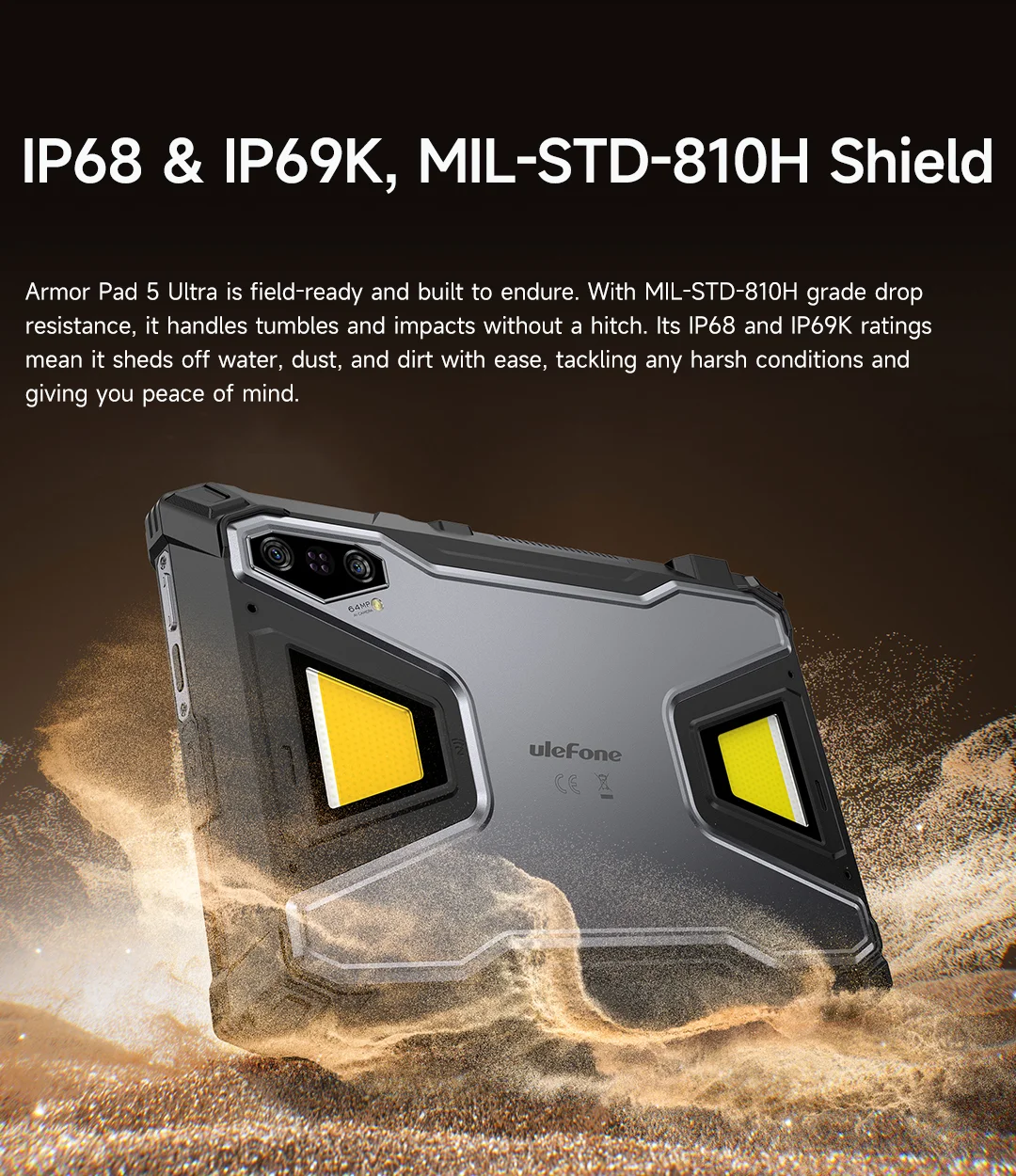

Ruggedness
- Certifications: IP68 / IP69K / MIL-STD-810H
- Water Resistance: 2m up to 30 minutes
- Drop Resistance: Up to 1.5 m
- Working Temperature: -20℃ to 55℃

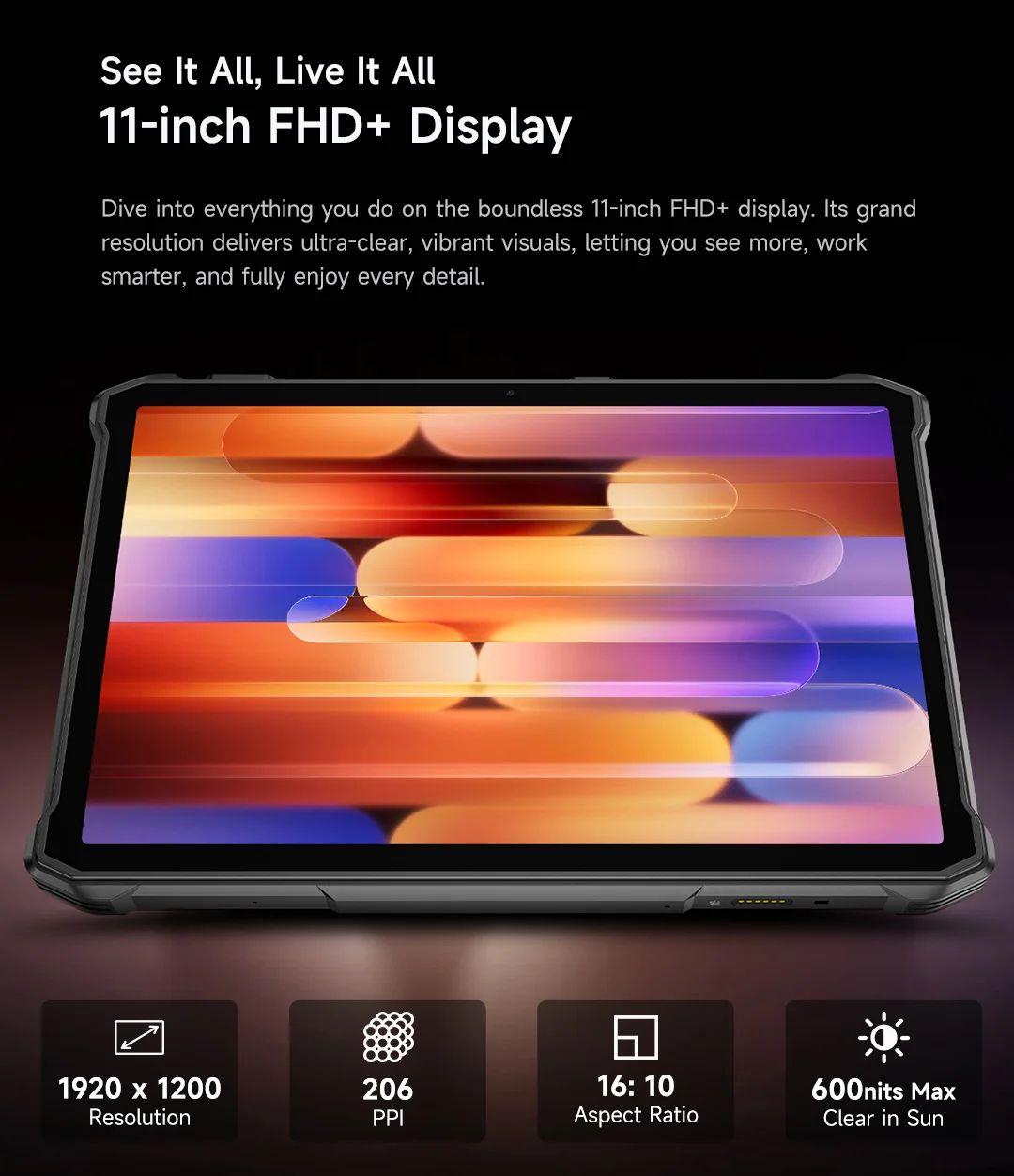

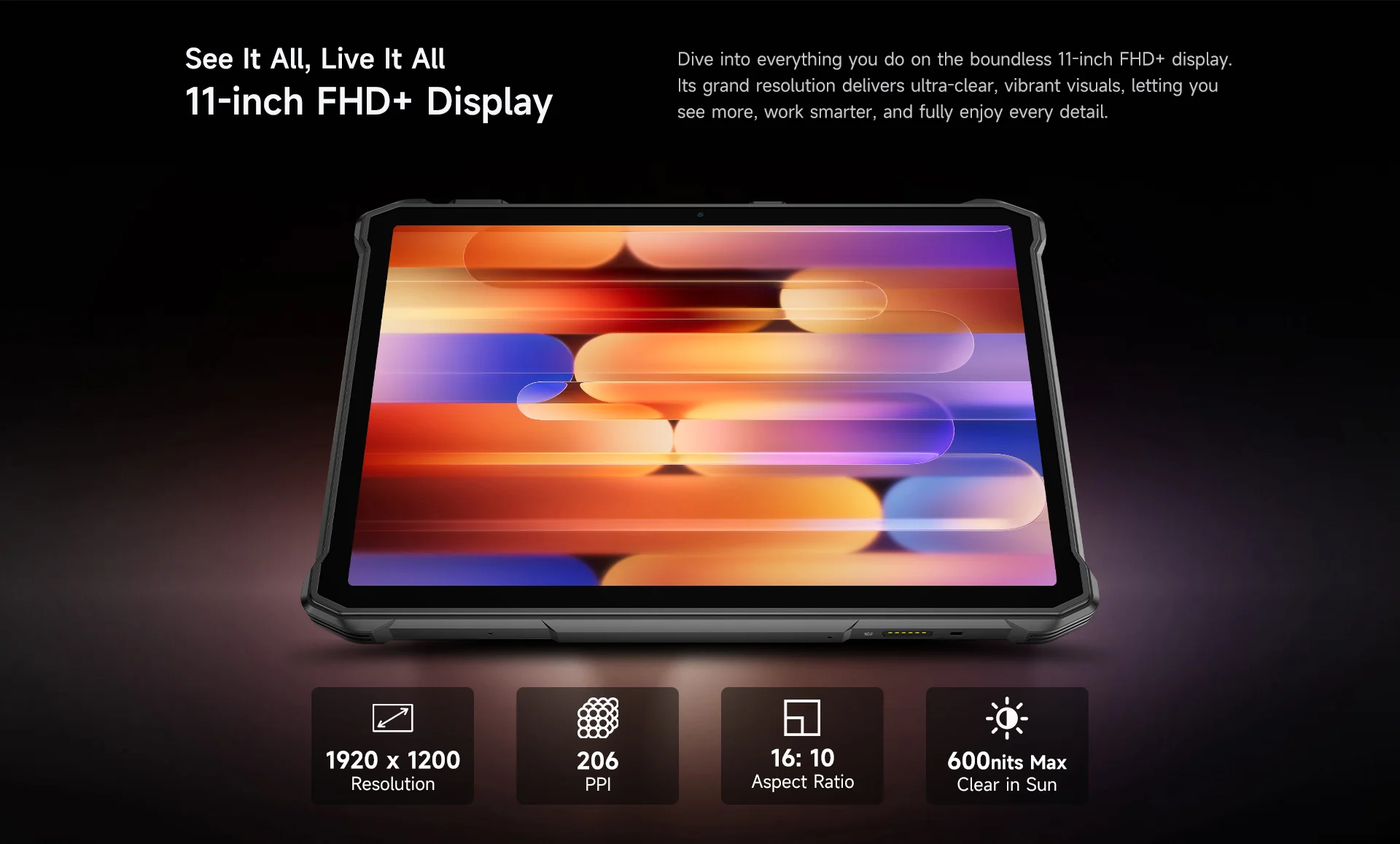

Display
- Size: 11-inch
- Resolution: 1920 × 1200 FHD+
- Aspect Ratio: 16:10
- PPI: 206
- Brightness: 600 nits (peak)
- Color Depth: 10-bit
- Refresh Rate: 90Hz
- Screen-to-Body Ratio: 87%
- Multi-Touch: 10 points
Processor
- CPU: MediaTek Dimensity 7400X (4nm)
- Main Frequency: 2.6GHz
- Cores: 8-core (4× A78 + 4× A55)
- GPU: Mali-G615 MC2 @ 1.0GHz
- AI Unit: MediaTek NPU 655
RAM & Storage
- RAM: 12GB LPDDR5 + up to 20GB Dynamic RAM
- Storage: 512GB UFS 3.1
- Expandable: Up to 2TB (microSD)

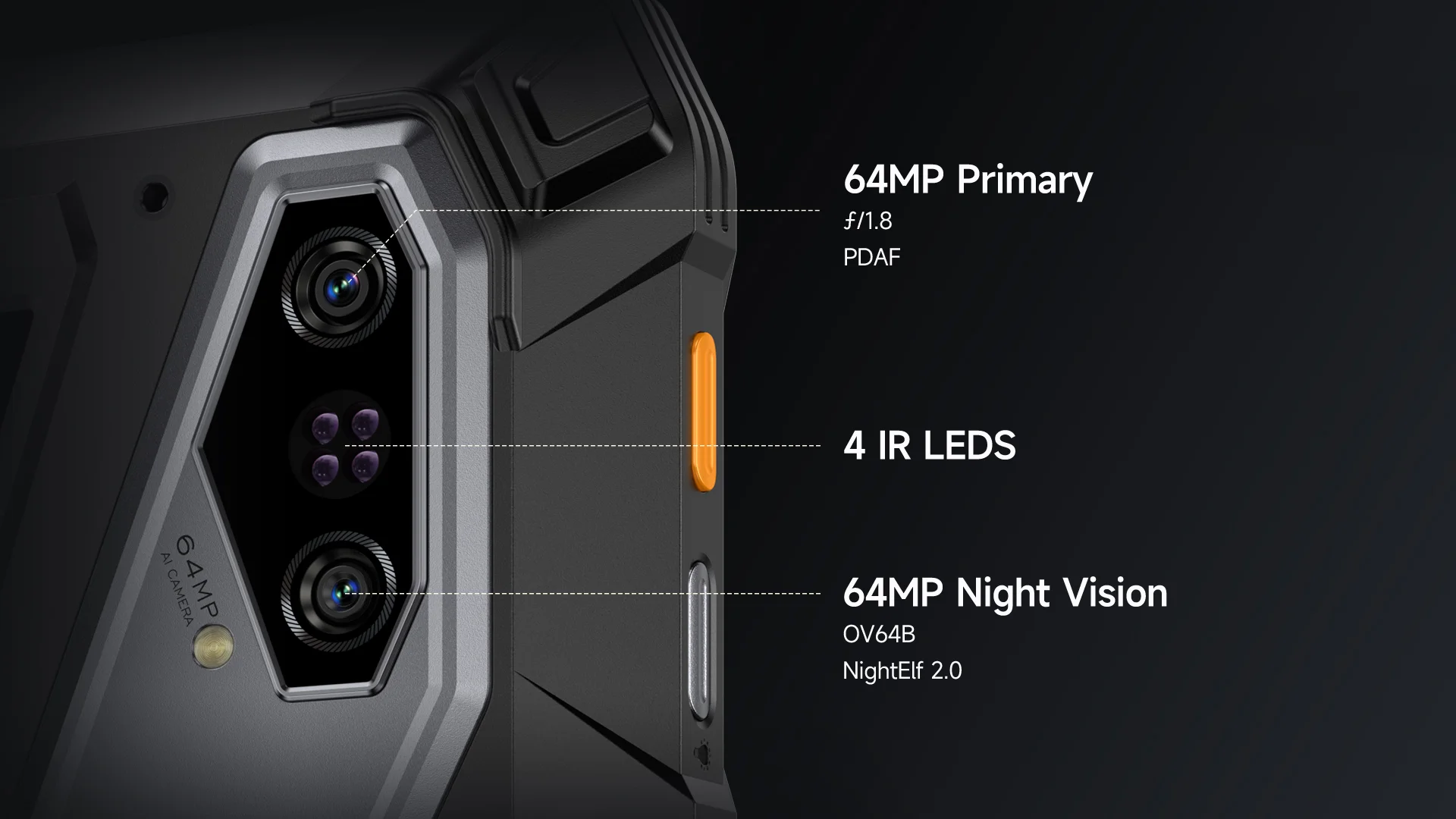

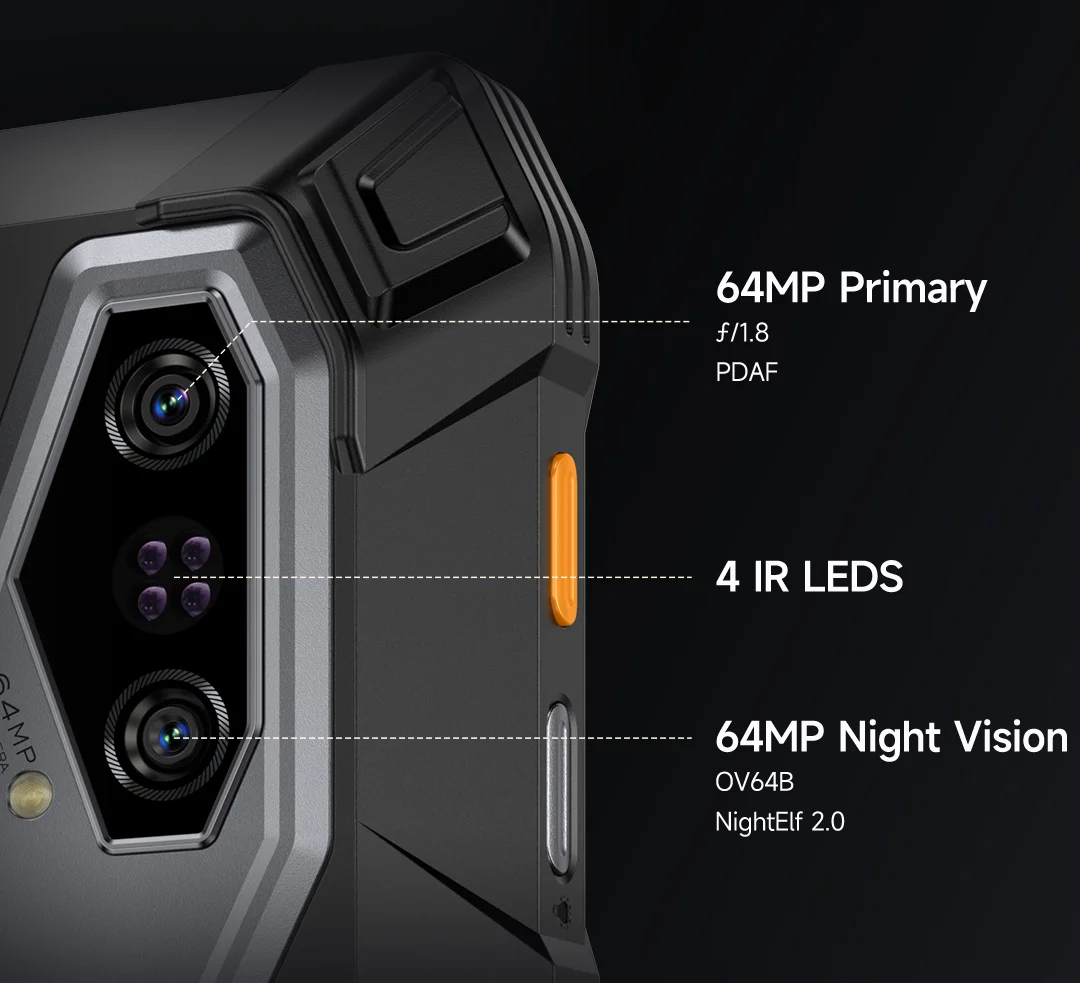

Rear Cameras

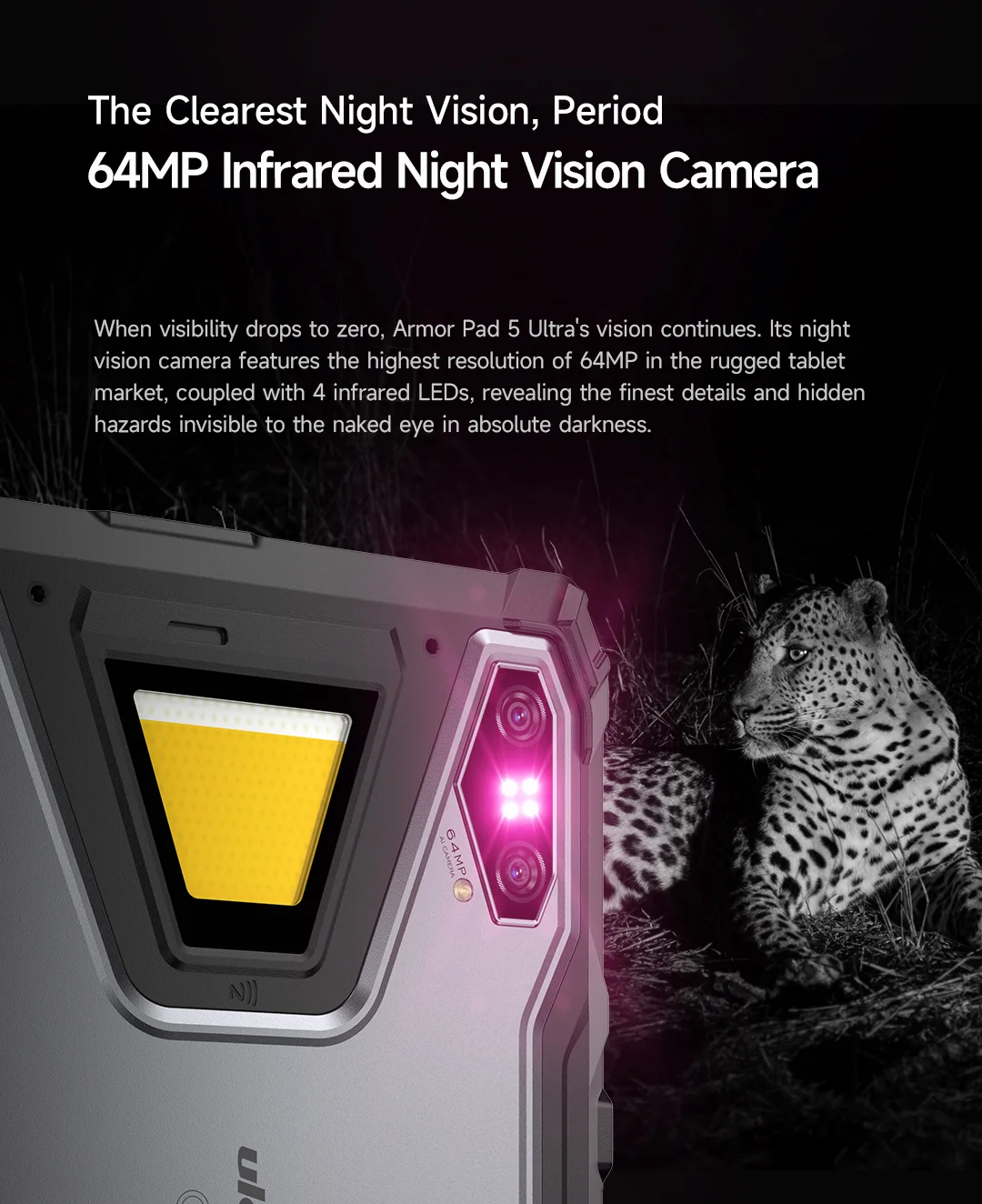

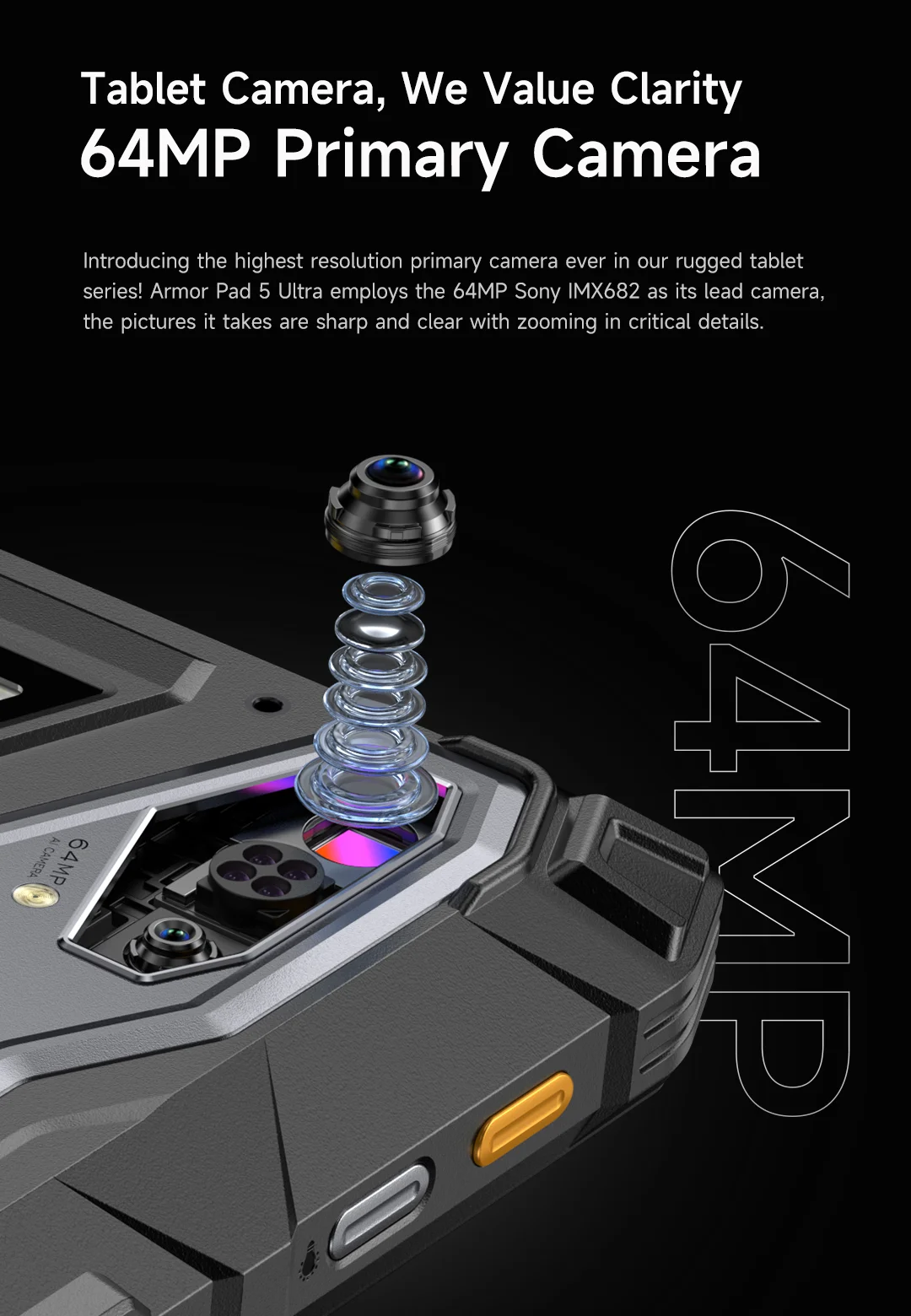

- Main Camera: 64MP Sony IMX682, ƒ/1.8
- Night Vision Camera: 64MP OV64B, ƒ/1.79
- Flash: LED Flash
- Video: 4K 30fps / 2K / 1080P / 720P
Front Camera
- Resolution: 32MP Samsung GD1, ƒ/2.45
- Video: 1080P / 720P / 480P / CIF (30fps)
Battery & Charging
- Capacity: 24200mAh (12100mAh @ 7.74V)
- Charging: 120W (20V/6A)
- Reverse Charging: 10W wired
- Standby Time: 1662 hours
- Talk Time: 109 hours
Network & Connectivity
- SIM: Dual Nano-SIM + microSD
- Cellular: 5G / 4G / 3G / 2G
- WiFi: WiFi 6E (2.4/5/6GHz)
- Bluetooth: 5.4
- Navigation: GPS, GLONASS, Beidou, Galileo, QZSS, NavIC
Audio
- Speakers: Dual 1326 BOX speakers
- Max Power: 3W
- Smart PA: AW88399

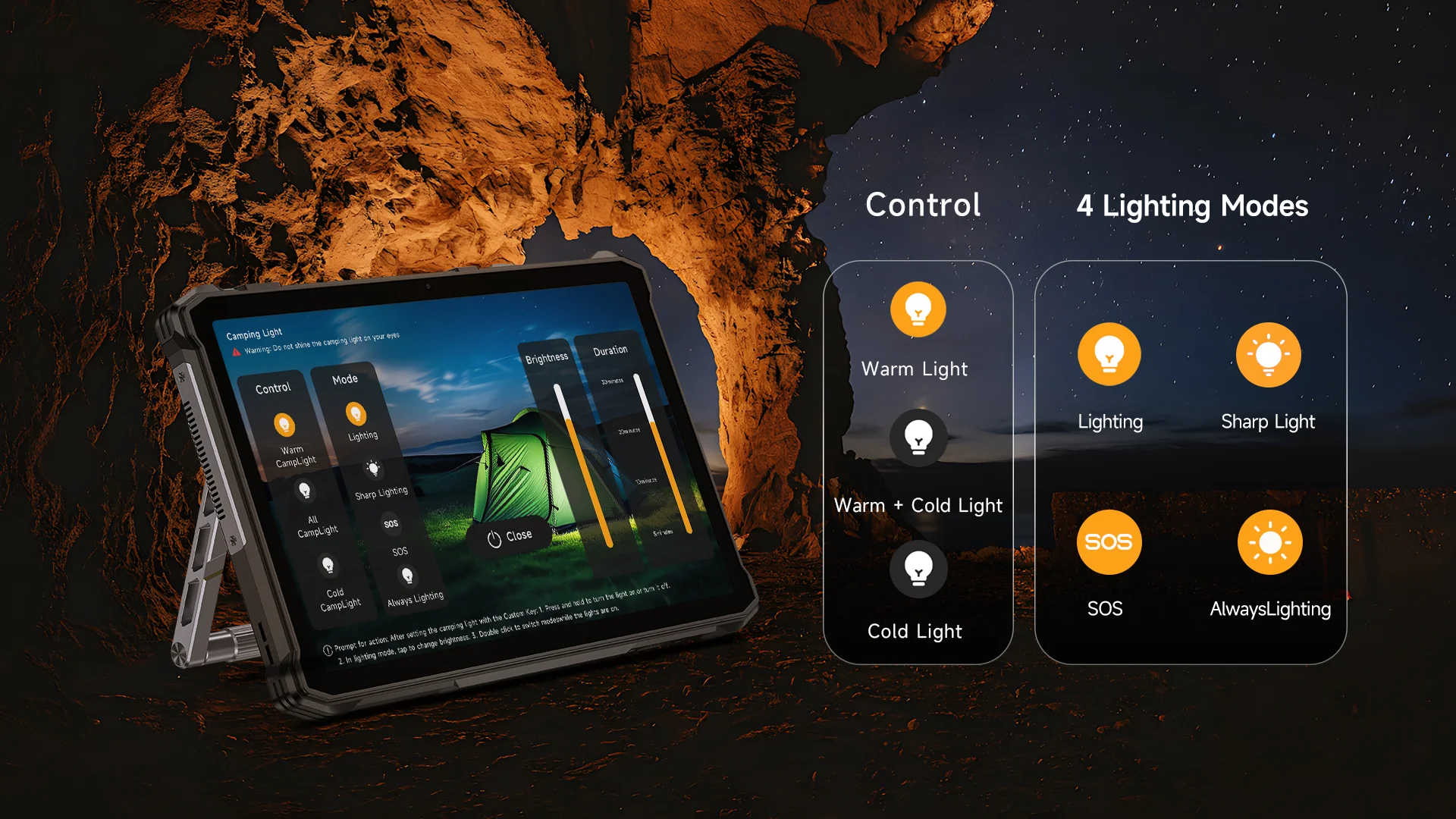

Versatile LED Light
- LED Beads: 754
- Brightness: 1000 lumens max
- Power: 6.8W
- Modes: Warm/White/Mixed, Timer (5–30 mins), SOS, Always-on

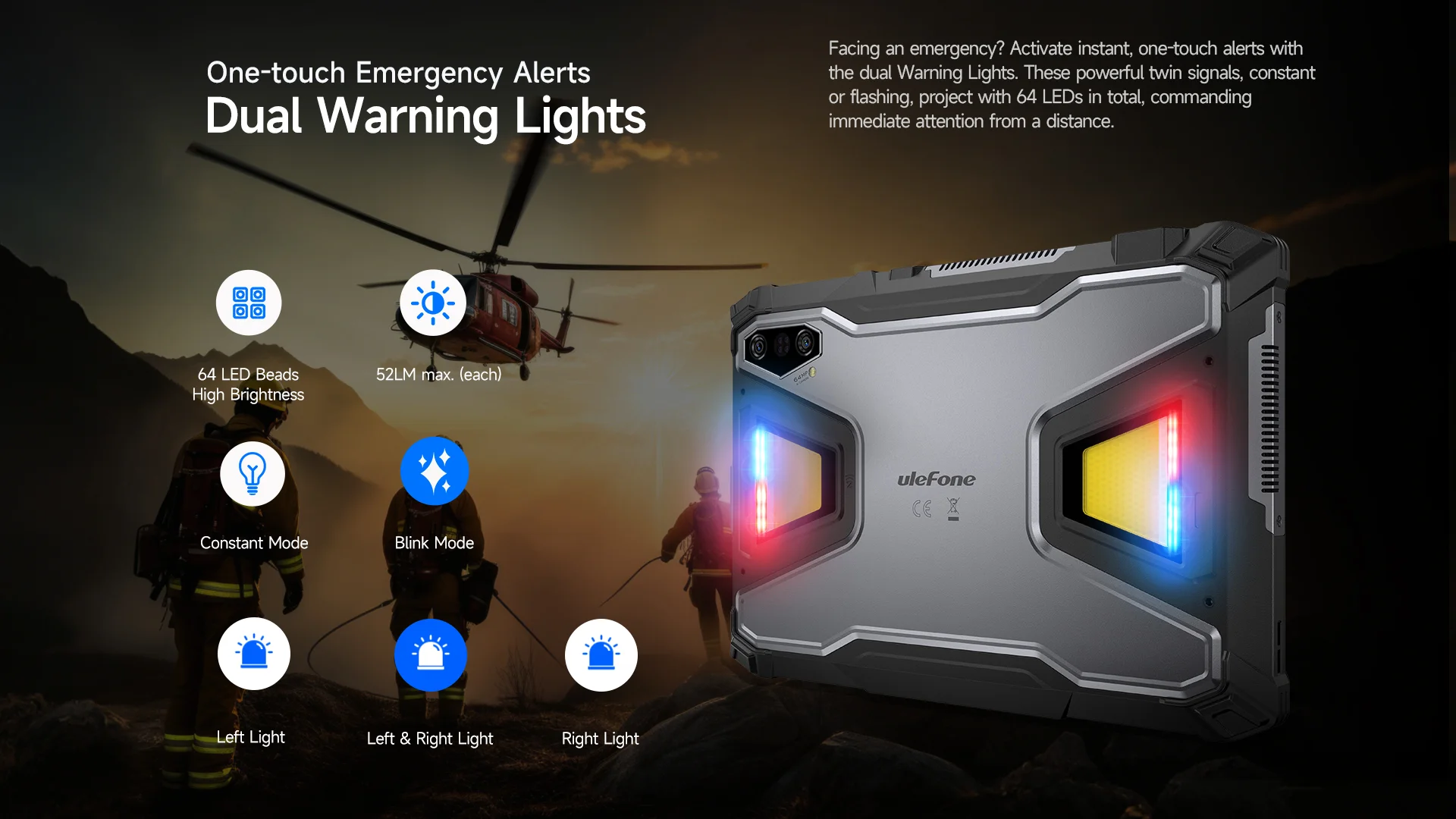

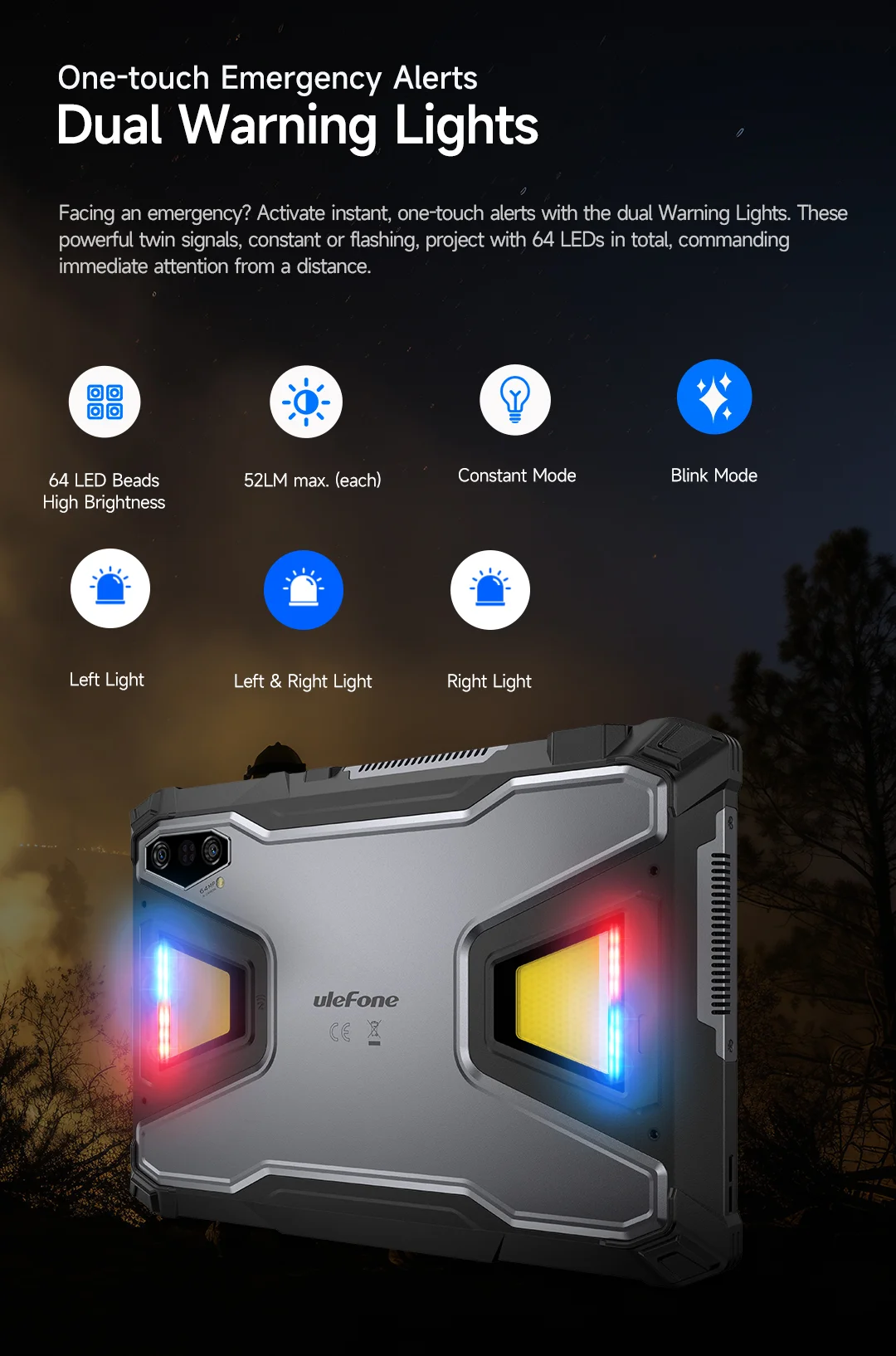

Warning Light
- LED Beads: 64
- Effects: Red, Blue, Red-Blue
- Warning Sounds: Fire, Ambulance, Police

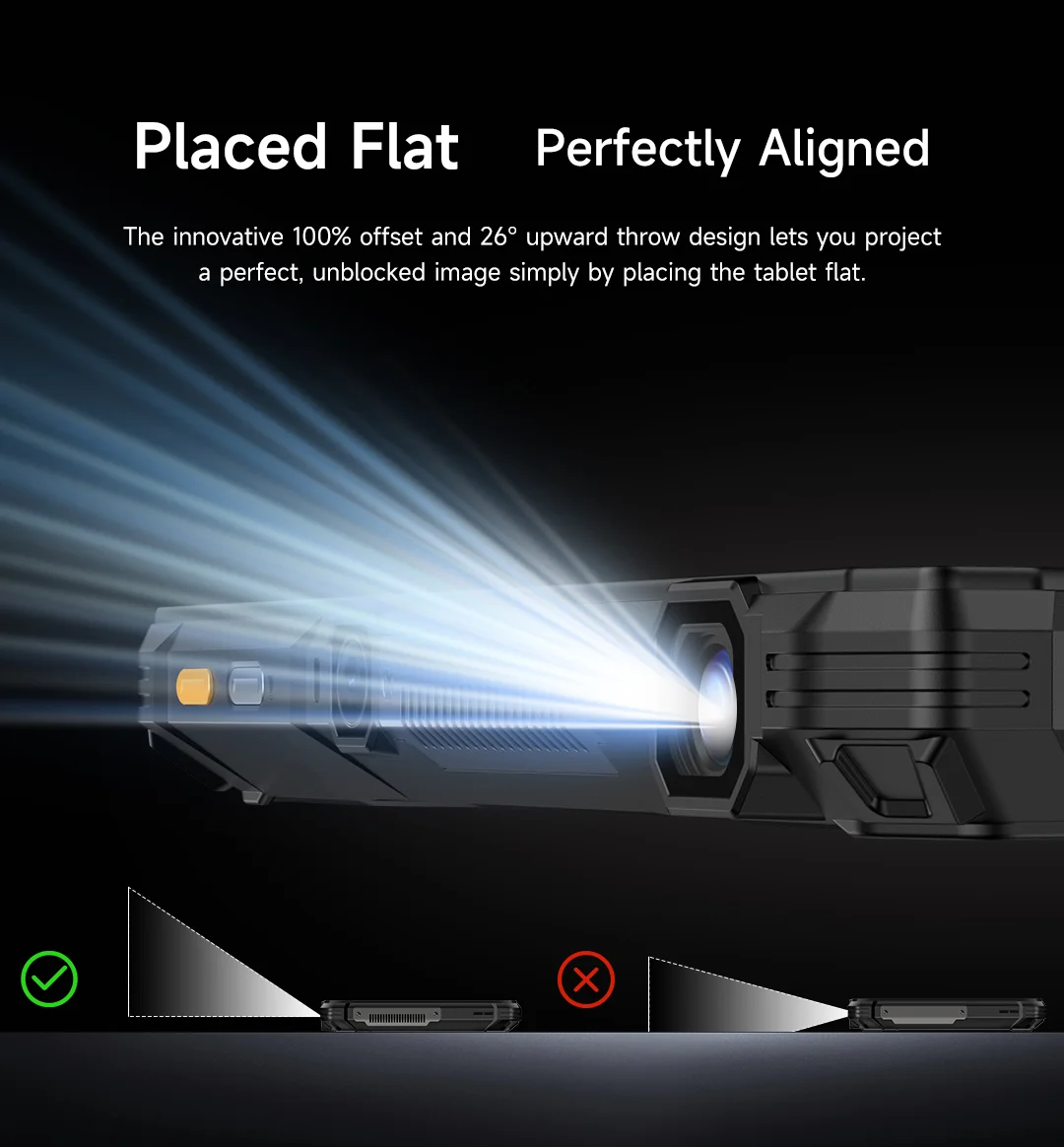

Projector
- Brightness: 200 lumens
- Resolution: 960 × 540
- Throw Ratio: 1.2:1
- Auto Focus & Keystone: Yes (±40°)
- Image Size: 40″–80″
Security
- Fingerprint Unlock: Yes
- Face Unlock: Yes

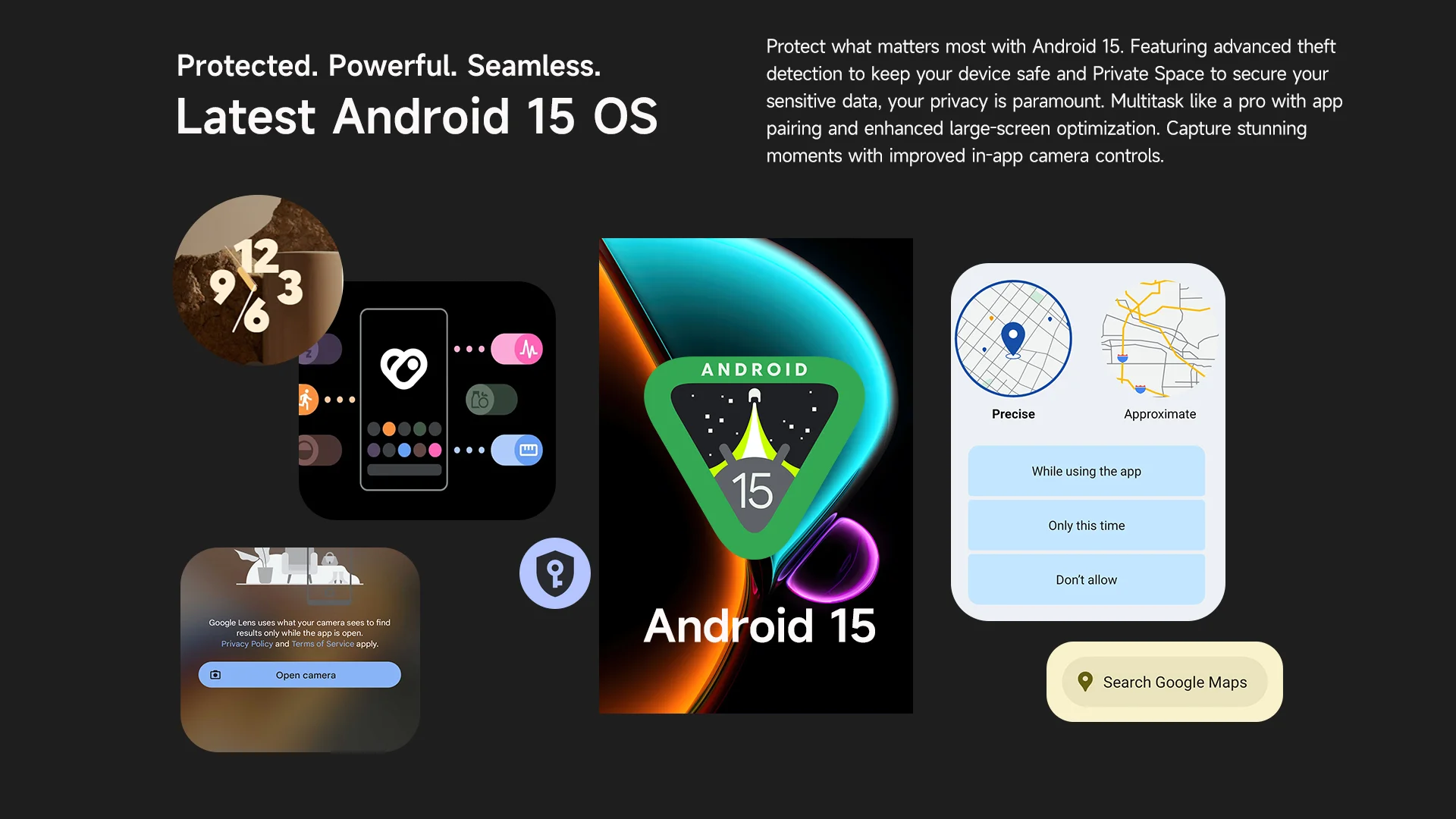

System
- OS: Android 15
- Languages: Multi-language support
- Pre-installed Apps: Google apps, Projector, Camping Light, Child Mode, Netflix, Toolbox, etc.
Connectivity & Features
- FM Radio: Yes (headset-free)
- OTG: Supported
- NFC: Supported
- Sensors: Gravity, Light, Acceleration, Gyro, Geomagnetic, Air Pressure, IR, Step counter, Coulomb counter
- Special Modes: Underwater Camera, Gloves Mode, Digital Toolbox
Packing List
- Tablet
- 120W AC Charger
- Type-C to Type-C Cable (100cm)
- Pre-installed Protective Film
- Pry Opener + Screwdriver + Screws
- User Manual, Warranty Card, Safety Info
- Handle Stand
Certifications
- CE, FCC, IP68, IP69K, MIL-STD-810H, WEEE, ROHS, UN38.3, MSDS, IEC62133
Accessories
